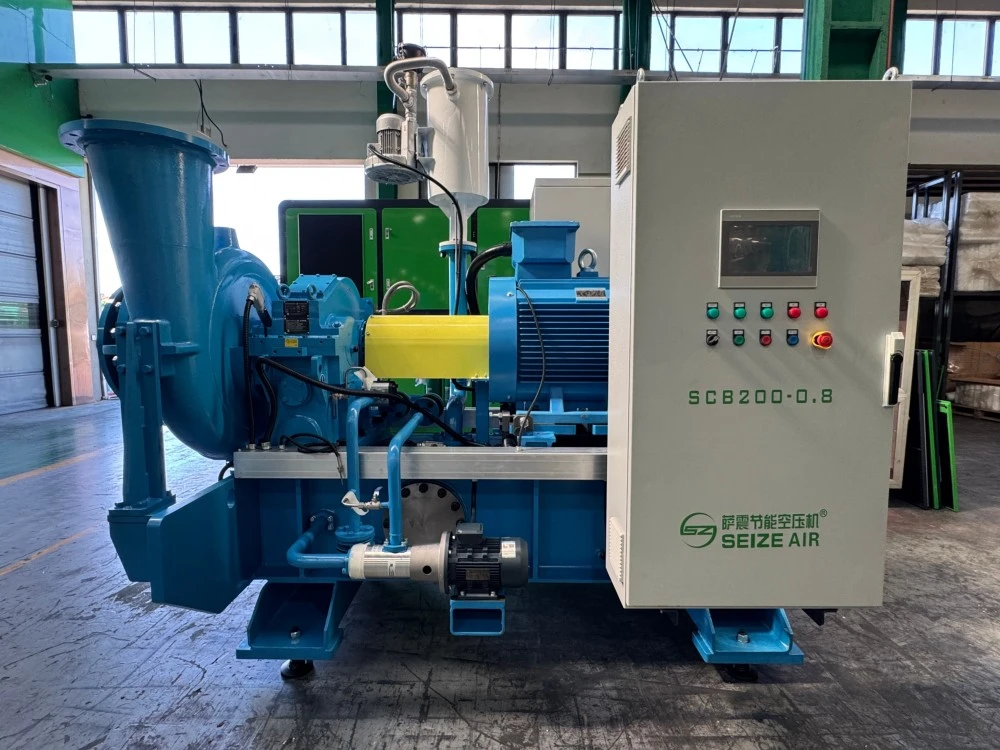

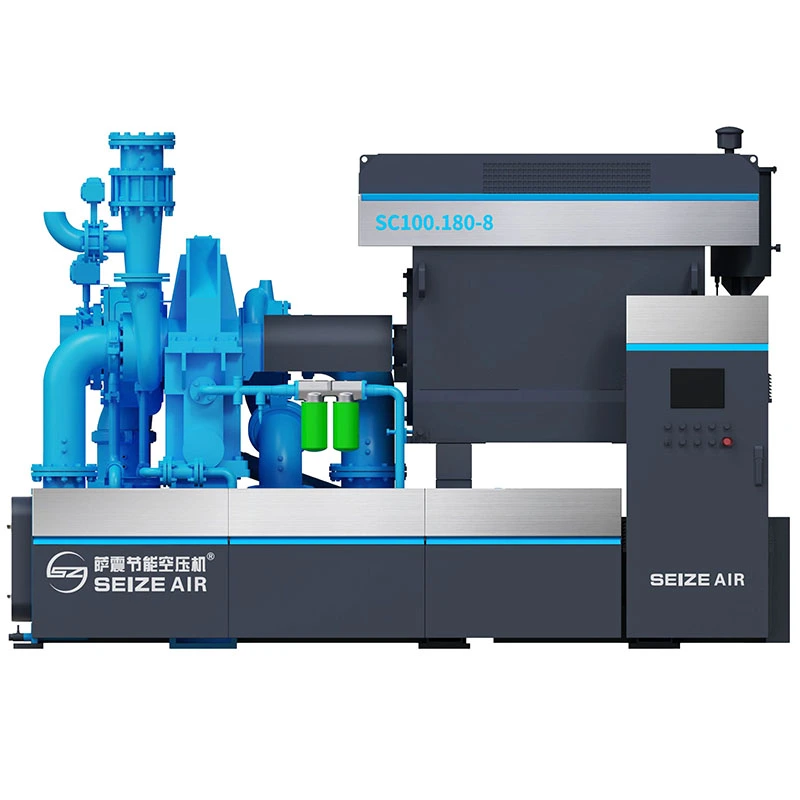

Multi-Stage Gear Turbo Air Compressor

This Multi-Stage Gear Turbo Air Compressor is an advanced industrial solution designed for applications requiring 100% oil-free air. Unlike standard units, this custom-designed oil-free centrifugal compressor features client-specific impeller optimization, ensuring a peak efficiency variance of only ±0.5%.

Why is this the ultimate choice for your factory?

● Ultra-Premium Efficiency: Powered by IE5 Permanent Magnet motors, this centrifugal compressor minimizes energy waste.

● Two-Stage Technology: Lower compression ratio per stage extends the lifespan of the air-end.

● IoT 4.0 Ready: Monitor your system remotely via a smartphone app, a feature rare among traditional China suppliers.

Technical Specifications

We understand that precision matters. Here is the breakdown of our Multi-Stage Gear Turbo Air Compressor capabilities:

Note: As a professional manufacturer, we offer non-standard configurations, including pressure ranges from 11 to 35 bar, tailored to your specific factory needs.

Engineering Excellence: Why We Stand Out

1. Customized Impeller & Aerodynamic Design Our oil-free centrifugal compressor utilizes 3D backward-curved blades. Compared to wedge-type designs, this improves efficiency by 1-8%. The wide operating range allows for a flow ratio of <1.5 per model.

2. Vibration Control Beyond API Standards We don't just meet standards; we exceed them.

●Rotor AF < 2.5: Critical damping state per API 672.

● G0.4 Dynamic Balance: Surpasses the industry G1 standard.

● Material: 17-4PH forged steel with 5-axis CNC machining for µm-level precision.

3. 100% Oil-Free Guarantee Our isolated sealing systems ensure zero lubricant contact with compressed air.

● Air seals are vented to the atmosphere.

● Multi-stage labyrinth oil seals.

● Gearbox vacuum of -2kPa prevents leaks.

Applications & Industry Trust

We has successfully deployed these units in various sectors:

● Steelmaking: Stable blast furnace air supply.

● Wastewater: 24/7 operation in municipal plants.

● Bio-fermentation: Compatible with heat recovery systems.

Certifications & Quality Assurance We are a verified supplier with ISO-certified production lines.

System Selection Criteria

A. Pressure:

Compressor selection pressure = Air demand point + Pipeline pressure drop + Post-processing pressure drop

B. Flow rate: Maximum flow rate, Average flow rate, Minimum flow rate

C. Model specifications:

1) Unit flow rate and quantity (primary, auxiliary, backup units)

2) Energy-efficient model vs. standard model with corresponding power ratings

3) Air-cooled/water-cooled configuration

4) Power supply type: Grid-frequency or variable frequency drive

5) Voltage (380V/6000V/10000V)

6) Integrated control system and IoT

7) Built-in flow meter and smart meter (displaying flow rate, energy consumption, and specific power)

Frequently Asked Questions (FAQ)

Q1: Can you customize the pressure for high-pressure applications?

A: Yes. As a specialized factory, we offer non-standard configurations with pressure ranges from 11 to 35 bar.

Q2: How does the vibration level compare to API standards?

A: Our Multi-Stage Gear Turbo Air Compressor operates with 60% lower vibration than API thresholds, thanks to G0.4 dynamic balancing.

Q3: Do you offer remote monitoring?

A: Absolutely. The unit is IoT 4.0 ready, allowing remote O&M via a 10.2″ HMI and mobile app.
