The Industrial Gear Turbo Air Compressor brings geared centrifugal compression to a factory's central air supply. SEIZE AIR's SC series combines centrifugal stages, an integrated drive and lubrication arrangement, interstage cooling and PLC control. For a buyer planning a large air station, its value lies in matching substantial production demand with a defined pressure duty and a complete installation scope. Start with the frame comparison below, then use the component and utility sections to prepare a practical equipment enquiry.
A central compressor serves a network of users rather than a single connection. Its selection should begin with the production requirement: useful airflow, pressure at the critical users, operating pattern and air quality. Once those are clear, the package can be considered together with cooling water, treatment, storage and the distribution header.
The SC catalogue presents several frame sizes with different capacity, power and mechanical ranges. That structure supports an engineered selection rather than a purchase based on motor rating alone. A frame comparison identifies the relevant equipment scale; the project proposal then connects a selected aerodynamic duty to the site's actual conditions.
This page focuses on the decisions that make a central station work as an installation. It explains the compression and lubrication systems, separates standard and optional supply, and shows what engineering should resolve before purchasing approves a model. Those details make quotations easier to compare and reduce surprises when equipment reaches the factory.
List the production activities served by the proposed station and identify which operate together. A group of continuously operating users creates a different duty from equipment that cycles during separate campaigns. Connect available flow records to those production states so a measured peak is not silently treated as the entire normal operating requirement.
Record the pressure needed at the most demanding connection and the pressure available at the station during the same period. This helps identify whether a shortfall arises at the supply or between the station and the user. Treatment equipment, valves and distribution branches belong in that comparison.
Keep future expansion and reserve capacity as separate entries. The compressor's routine duty should be understandable on the day production starts, while the station layout and control sequence address the agreed expansion and backup strategy. That distinction creates a stronger selection basis than choosing a larger frame simply because it offers more nominal capacity.
An air-compressor quotation can describe the machinery alone or a much larger station package. Identify whether the offer includes cooling-water connections, treatment, outlet accessories, station controls, installation and commissioning. A scope matrix makes differences visible before the lowest equipment price becomes the main purchasing criterion.
The SC literature helps with that discussion by listing standard and optional configurations separately. Carry those distinctions into the enquiry rather than assuming that everything pictured in a station illustration is included in the compressor price. A drawing is useful for explaining interfaces; the accepted schedule should identify the supplied items.
For replacement work, mark the equipment that remains in service. Existing receivers, dryers, pipes and other compressors can affect both performance and the installation sequence. Connecting the new package to that retained system is part of the engineering task, even when it falls outside the compressor supplier's commercial scope.

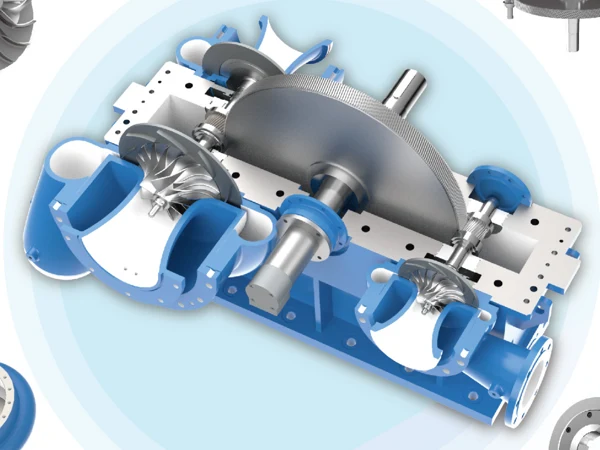

Air enters the compression stages through the inlet arrangement. Rotating impellers impart energy to the air, and the diffuser and volute passages support the pressure-building process. The geared drive transfers mechanical power to the rotating compression assemblies. Cooling between stages manages heat as the air moves through the package.
The catalogue describes stainless-steel impellers, aerodynamic diffusers, a high-speed gear system and separate air and oil sealing elements. These components should be understood as a coordinated assembly. An impeller description explains the aerodynamic hardware; the equipment schedule and performance proposal explain the duty the supplied machine is selected to deliver.
For maintenance and installation, the supporting systems matter as much as the compressor stages. Gear lubrication, oil cooling, cooling-water services, condensate removal and electrical controls all need identified interfaces and service access. Reviewing them together produces a more usable specification than treating the compressor as an isolated air connection.
The impeller accelerates the air. The diffuser and downstream passages help convert velocity into pressure and guide the air through the compression path. The catalogue illustrates these components individually and in a cutaway of the geared assembly, making the relationship between aerodynamic parts and drive arrangement easier to understand.
For the buyer, this is a useful distinction when discussing alternative selections. A proposed change to the operating duty should be reviewed through the applicable performance information and configuration, rather than inferred from the appearance of an impeller or the size of a motor enclosure.
Ask for the identified equipment arrangement and the documentation relevant to the selected duty. If the supplier proposes a different frame or stage configuration during procurement, retain the required pressure, delivery reference and site conditions on the comparison. That keeps the engineering task consistent while the offered hardware is reviewed.
The SC package uses a lubricated gear and bearing arrangement, with seals separating the lubricating system from the compression path. The catalogue identifies both air seals and oil seals. This is different from injecting oil into the compression chamber, and different again from a magnetic-bearing drive architecture.
For ownership, the consequence is straightforward: the compression principle does not remove the lubrication system from maintenance planning. The oil tank, filters, cooler and associated controls need the appropriate operating instructions, service access and consumables identification for the supplied equipment.
Define delivered-air quality separately. Intake conditions, moisture removal, treatment and distribution all contribute to what reaches production. Where air contacts a process or product, include the required quality and sampling position in the enquiry so the complete supply can be designed and accepted against a clear requirement.
The literature describes high-speed rotor bearings and staged sealing arrangements around the gear-driven assembly. During the proposal review, identify the documentation, monitoring information and authorised service requirements associated with these parts. They should be part of the equipment handover, not questions first raised during an unexpected stop.
Distinguish operator checks from interventions into rotating machinery. Routine observation, alarm reporting and the work assigned to qualified service personnel have different responsibilities. The equipment instructions should make those boundaries clear for the actual configuration installed at the plant.
A good maintenance file connects the final model, serial identification, component documentation and operating baseline. That allows a parts or support enquiry to refer to an identified assembly. It also helps the plant distinguish a change in cooling or production demand from a condition that needs investigation within the compressor.
The Industrial Gear Turbo Air Compressor frame comparison below comes from the SEIZE AIR gear-centrifugal catalogue, version 2026.08, printed page 03. It reproduces the listed capacity and power ranges with the package dimensions, weight and outlet size. The common pressure envelope shown in that schedule is 1.5–16 barG.
These are frame-selection ranges, not a list of simultaneous maximum values for one operating point. The chosen pressure, air delivery, inlet conditions and cooling services should remain together in the final technical selection. That makes the frame table a useful starting point while keeping the offered duty clearly defined.
Use the mechanical columns at the same time as the capacity columns. A change of frame can alter receiving, handling and pipework as well as air supply. The resulting installation implications belong in the commercial comparison before a model is accepted.
| SC frame | Capacity range, m³/min | Power range, kW | L × W × H, mm | Weight, kg | Air outlet |
|---|---|---|---|---|---|
| SC450 | 40–75 | 100–450 | 3800 × 1800 × 2450 | 8500 | DN150 |
| SC710 | 80–120 | 255–710 | 4100 × 2200 × 2600 | 12850 | DN200 |
| SC1000 | 120–180 | 400–1000 | 4250 × 2200 × 2800 | 15000 | DN200 |
| SC1500 | 180–250 | 500–1500 | 5500 × 2300 × 3200 | 16000 | DN250 |
| SC2200 | 250–380 | 700–2200 | 5500 × 2300 × 3200 | 16000 | DN250 |
The SC1000 frame is listed with a capacity range of 120–180 m³/min and a power range of 400–1000 kW. Those ranges identify the frame's selection scope. They should be connected through a model-specific duty and performance proposal, rather than combined into a single efficiency figure by choosing convenient endpoints.
The same principle applies when comparing an existing machine. Its nameplate power identifies installed equipment, while the useful air duty depends on pressure, operating condition and how the station is being used. Retain the measured or documented process requirement beside the frame shortlist.
For energy review, identify complete-package electrical input and the boundary of the comparison. A central station may also require cooling services, dryers and auxiliary equipment. If those items are included in one proposal and excluded from another, compressor-only figures do not describe the same installation.
SC710 is listed at 4100 × 2200 × 2600 mm and 12,850 kg, while SC1000 is listed at 4250 × 2200 × 2800 mm and 15,000 kg. Compare these package values with the receiving route, equipment position and handling plan, not only the available rectangle on the floor drawing.
The table's dimensions are equipment dimensions. Service clearances, access to electrical equipment, lifting requirements and any shipping arrangement need the documentation for the offered package. The room layout should preserve those functions after pipes, ducts and other machines have been installed.
Keep the selected frame on the connection and civil-design schedules. When a quotation revision changes it, review the effects on foundation information, outlet pipework, handling and access before accepting the revision. This avoids approving an air-supply change while overlooking the building work it creates.
The factory may hold an instrument reading, a process-equipment specification and an existing compressor rating that use different reference conventions. Record the reference basis and measurement location for each. Values using the same volume-per-time unit are not automatically describing the same air condition.
Identify whether a requirement belongs at the compressor outlet, after treatment or at the final process connection. Treatment and distribution can create differences between those locations. Keeping the boundary explicit helps the supplier select for useful delivered duty and helps the plant assess the completed installation.
Retain that information in the enquiry data sheet and the final offer. It gives engineering a consistent basis for reviewing alternatives and gives purchasing a clearer explanation of why two quotations may specify different machinery for what initially appeared to be the same airflow requirement.

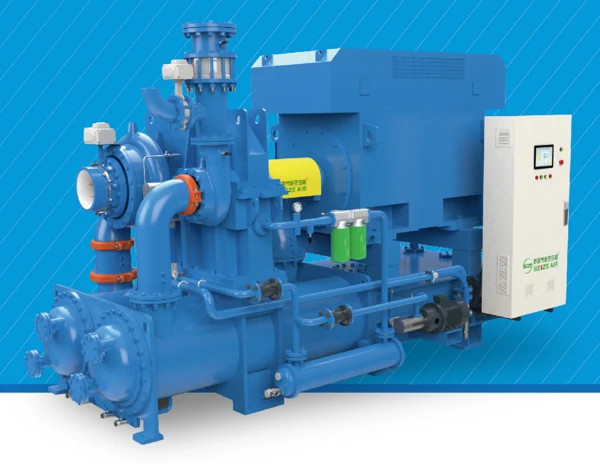

The catalogue's standard configuration includes the main motor, adjustable inlet guide vanes, vent valve, lubrication system, cooler traps, duplex oil filter, exhaust check valve, PLC controls, communication protocols, UPS backup supply and vent silencer. Those items provide a useful checklist for discussing the offered package.
The optional list includes the base, cooling-water piping, automatic drain valve, aftercooler and outlet expansion joint. Confirm their status on the project quotation. The distinction matters when installation work is divided between the equipment supplier, the plant and a local contractor.
An accepted scope should identify interfaces as well as equipment names. For example, a supplied cooler still needs an agreed cooling-water connection and operating service. A control interface still needs an agreed station function. Turning a component list into a connection and responsibility schedule is what makes it useful on site.
| Scope item | Catalogue status | Resolve in the project offer |
|---|---|---|
| Main motor, IGV and vent valve | Standard configuration | Selected duty and control response |
| Lubrication, duplex oil filter and oil cooling interfaces | Lubrication and filter listed as standard | Connections, service access and documents |
| PLC, MODBUS/PROFIBUS and UPS | Standard configuration | Required signals and agreed station functions |
| Base, water piping, automatic drain and aftercooler | Optional configuration | Supplier/plant/contractor responsibility |
| Outlet expansion joint | Optional configuration | Connection drawing and supplied scope |
The standard supply list identifies a duplex oil filter. Include its service access, component identification and applicable operating procedure in the handover review. The filter arrangement should be understood within the supplied lubrication system, with any changeover or maintenance work governed by the equipment instructions.
Mark the relevant service space on the equipment layout and identify the parts information the plant needs to hold. This connects a specific standard component to a practical ownership task, rather than leaving the maintenance team to discover the required access and procedure after installation.

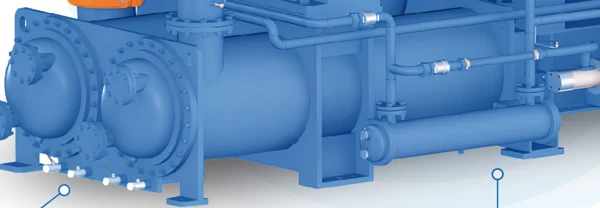

The air coolers manage heat between compression stages, while the oil cooler supports the lubrication system. Their connection and operating requirements should be identified for the selected package. Include available water conditions, isolation, inspection and cleaning access in the utility review.
Show the cooling services on the room layout alongside the air and electrical connections. This makes it easier to check whether maintenance can reach strainers, drains and other service points after the machinery is positioned. A crowded utility route can create an ownership problem even when the compressor fits the room.
Keep cooling information in the commissioning baseline. If air delivery or temperature behaviour later changes, the plant needs to know the relevant utility condition as well as the production demand. A record of both makes investigation more specific than describing the equipment only as running hot or losing capacity.
The SC literature describes electrically controlled inlet guide vanes and PLC operating modes. In a station proposal, identify how the selected unit responds to changing demand and how its protective functions coordinate with that response. The operating sequence should be understandable to the people who will run the plant.
Centrifugal operation includes a low-flow stability limit. The U.S. Department of Energy's compressed-air sourcebook explains surge and the use of control actions such as unloading or blow-off to avoid it. Use that principle to ask for the offered operating region and control sequence, rather than assuming that any demand below a frame's maximum can be served in the same way.
For an existing station, identify which other machines remain active and which unit responds to variation. That gives the control proposal a specific task and helps prevent independently selected machines from working against one another on a shared header.
Official SEIZE AIR product introduction.
The Industrial Gear Turbo Air Compressor is relevant to an enquiry when the factory needs substantial central air supply and can define its pressure and operating pattern. Process plants and multiple-line manufacturing facilities should describe the actual duty, the simultaneous users and the consequence of an interruption.
An application name is not a complete selection. Air used in a process, air operating equipment and air contacting a material can have different quality and continuity requirements. Record those differences so the compressor, treatment and reserve arrangement can be evaluated as a system.
Use the application matrix to prepare the enquiry. It is intended to connect production with the air-room specification, without assuming that every installation within an industry uses the same pressure, quality or control strategy.
| Production requirement | Describe in the enquiry | Engineering consequence |
|---|---|---|
| Sustained central air duty | Simultaneous demand, pressure and reference basis | Select relevant frame and aerodynamic duty |
| Changing process campaigns | Demand transitions and operating states | Define control response and duty sharing |
| Quality-sensitive air use | Contact point and delivered-air requirement | Coordinate treatment and verification |
| Production continuity | Required response to a unit being unavailable | Define reserve and isolation arrangements |
The magnetic-levitation low-pressure family provides a different drive and bearing arrangement for an applicable duty. Compare the selected pressure, useful air delivery, cooling services and operating region. Related centrifugal principles do not make the packages' lubrication and maintenance scopes identical.
Where a screw-compressor arrangement is also being considered, compare it against the same station requirement. The dry oil-free screw range is a separate compression architecture and should be reviewed with its corresponding operating data and control strategy.
The existing chemical-plant gear turbo page offers an application entry point. This page adds frame and supply-boundary comparisons for central-station purchasing. Choose the information that resolves the plant's specific engineering decision rather than treating industry labels as interchangeable specifications.
Define what production requires when a duty compressor is unavailable. The answer may involve another installed machine, a temporary supply arrangement or an agreed reduction in production. Make that response explicit in the station sequence and the commercial scope.
Reserve equipment does not need to be part of every normal running combination. Identify when it starts, how duty transfers and how the plant returns to normal operation. These decisions affect controls, isolation and the information needed by operators during an interruption.
For a replacement project, plan the installation transfer separately from long-term reserve operation. The old unit may remain available during some work but not during a pipe or electrical change. A clear changeover plan helps the plant schedule the project without assuming that equipment availability alone guarantees continuity.

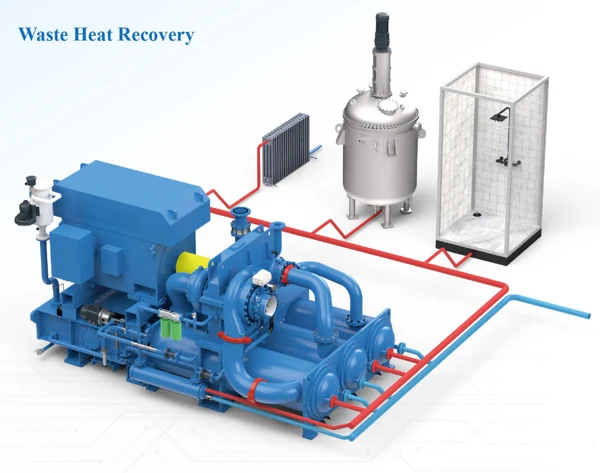

The catalogue illustrates both built-in and external waste-heat-recovery arrangements. The built-in arrangement integrates with the interstage coolers, while the external arrangement is presented as a separate recovery configuration. Treat either option as an engineered heat-use project alongside the compressor selection.
A useful enquiry identifies the heat user, operating schedule, required water conditions and the return arrangement. Compare that heat demand with the compressor's production pattern. Heat available during one period is most useful when the receiving process can use it under the required conditions.
Include isolation, inspection, cleaning and the response when there is no useful heat demand. The compressor's cooling requirement remains part of the installation. The accepted design should explain how compression duty and heat utilisation are coordinated through normal production and reduced-demand periods.
Identify which heat exchangers, pumps, controls and connecting services are included in the offer and which belong to the plant. Mark the point where responsibility transfers to the receiving hot-water or process system. This makes separate quotations easier to combine into a complete project.
Keep heat-recovery performance and compressor air performance as related but distinct acceptance subjects. Each needs an agreed boundary and operating condition. A useful result identifies the compressor duty, the receiving heat demand and the measurements relevant to each part of the installation.
Commercial comparisons should also distinguish installed hardware from expected operating use. A recovery arrangement may be technically available while its annual benefit depends on the plant's actual schedule and heat demand. Use documented inputs for the investment review and retain them with the project proposal.
SEIZE AIR is the brand of Seize Compressor (Shanghai) Co., Ltd., based in Shanghai and founded in 2009. For an air compressor manufacturer in China, a useful export proposal connects the selected equipment to its drawings, utilities, operating information and agreed order documents.
The factory and the buyer should identify the supplied frame, selected duty, motor arrangement and acceptance scope on the offer. Destination-specific documentation and conformity requirements belong in that review so the final package can be assessed by the installation and import teams.
Before commissioning, confirm that utilities, treatment, isolation and the station-control sequence are ready for the equipment. Startup and protective checks should follow the applicable instructions and agreed responsibilities. The goal is an installation that can be operated and maintained as a defined system.
Retain equipment identity, operating duty and the positions used for measurement. Connect production state with station pressure, useful airflow, electrical boundary and relevant cooling information. A baseline taken under a known duty is much more useful than a collection of readings with no operating context.
Include the control sequence and the information needed to recognise normal operating states and protective events. Operators should know what to report when requesting support, and maintenance should know which interventions require authorised specialist work.
Keep the final drawings and instructions with serial identification and the agreed consumables and parts information. When the order changes during procurement, update the handover set accordingly. That prevents the plant from maintaining the delivered package using documents prepared for an earlier quotation.
A useful fault record identifies where a change appears before the plant decides what to adjust. Compare station pressure with pressure across treatment and at the affected user during the same production condition. Retain the compressor's operating state and the availability of other machines at that time.
Cooling and lubrication observations need their own information. A cooling-service change, an oil-system indication and a production-pressure complaint can occur in the same period but require different investigation. Record the relevant alarm, utility condition and equipment state without treating them as proof of a single cause.
The following matrix helps maintenance prepare a specific support request. It is an information-gathering guide; actual inspection and intervention should follow the supplied equipment instructions and authorised responsibilities. Its purpose is to make the first conversation useful and to avoid changing a pressure or control setting before the location and circumstances of the problem are understood.
| Observation | Information to collect | Question to resolve |
|---|---|---|
| Remote user pressure falls while station pressure holds | Readings across treatment and affected branch during the event | Where does pressure diverge? |
| Station pressure and several users change together | Production state, loaded machines and available reserve | Did demand or station duty allocation change? |
| Cooling-related indication | Relevant alarm and cooling-service condition | Which cooling interface changed? |
| Lubrication-system indication | Alarm record and applicable operating checks | What information does authorised service need? |
The standard communication list includes MODBUS and PROFIBUS. Specify which interface the installation will use and what the station expects to exchange through it. The ability to connect a cable is different from agreeing the operating function and the information the plant needs to receive.
Ask the proposal to identify status, alarms, commands and the response to an unavailable station connection where applicable. Include the agreed functions in commissioning and operator handover. The plant and supplier can then assess the same behaviour rather than leave integration to assumptions made independently by different contractors.
Keep the accepted control description with the equipment and station drawings. When a later machine is added or duty allocation changes, it becomes a useful reference for reviewing the sequence. That protects the operating intention behind the original selection and makes future changes easier to evaluate.
No. The geared drive and bearing system use lubrication, while sealing arrangements separate that system from the compression path. Specify the compressor architecture and the required delivered-air quality as separate parts of the enquiry. Downstream treatment and distribution still belong in the complete air-quality design.
This distinction helps purchasing avoid comparing equipment only through an oil-free label. The operating and maintenance scope should identify the actual drive, lubrication and sealing arrangement, together with the quality requirement at the process connection.
They need the same useful air duty, pressure, reference conditions and supply boundary. Compare the offered performance and control information alongside cooling, treatment, utilities and installation responsibilities. A similar power heading or a larger capacity range alone does not establish an equivalent proposal.
Ask the supplier to mark alternatives clearly. Engineering can then review the effect on the selected operating point, dimensions, connections and service access while purchasing assesses the commercial change. Keep that comparison with the final equipment schedule.
Provide the pressure required at the critical users, documented airflow profile, production states and required air quality. Add available utilities, room constraints, retained equipment and the treatment and station-control scope to be included. List the acceptance documents needed for approval.
Use those inputs to request a SEIZE AIR central-station proposal for the Industrial Gear Turbo Air Compressor. A complete enquiry lets the supplier connect the selected SC frame, aerodynamic duty, utilities and order scope in a proposal that engineering and purchasing can review together.
