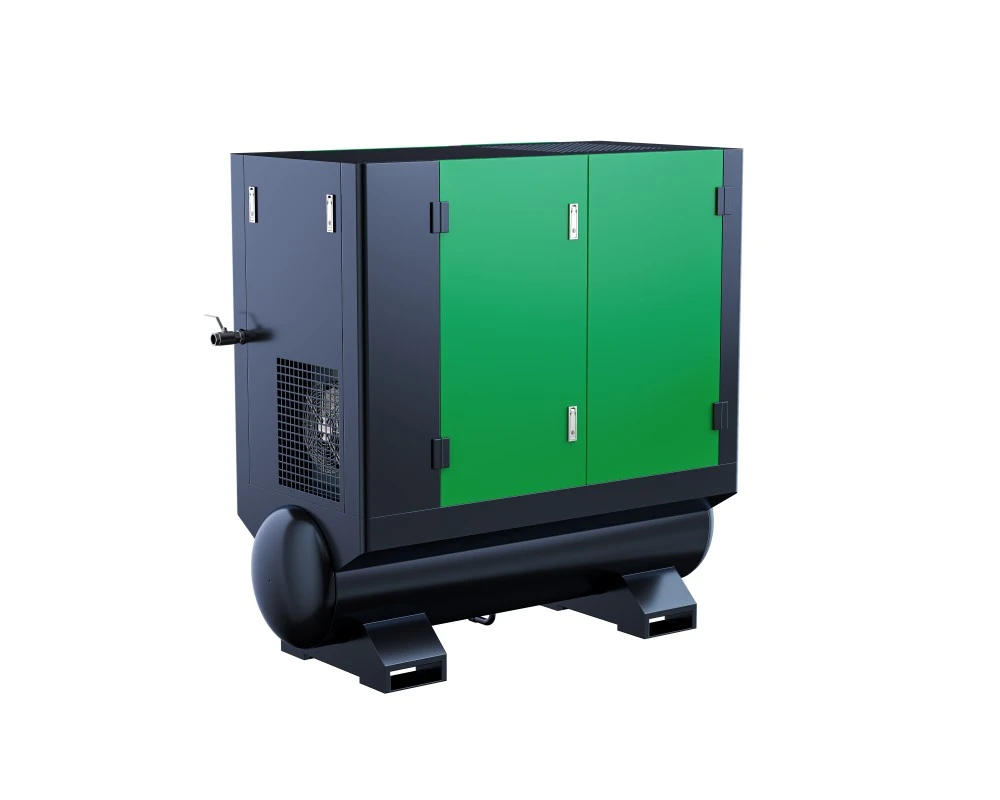

16 Bar High Pressure All-In-One Air Compressor

The 16 Bar High Pressure All-In-One Air Compressor is specifically architected for industries where standard 0.8 MPa pressure is insufficient. High-pressure applications—such as thick-plate laser cutting, PET blow molding, and specialized pneumatic clamping—require a system that can handle elevated thermal loads and internal stress.

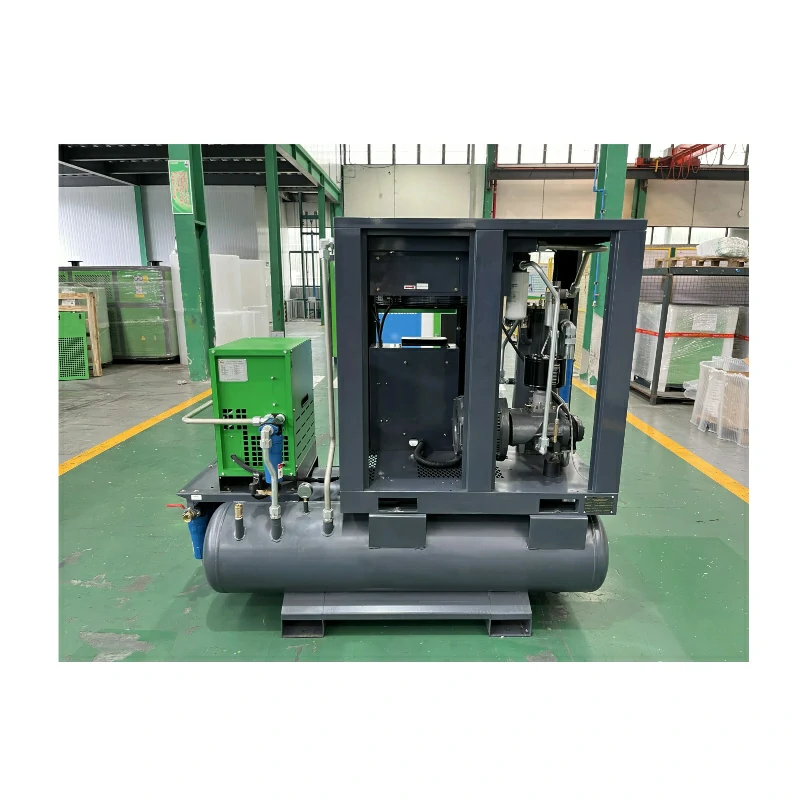

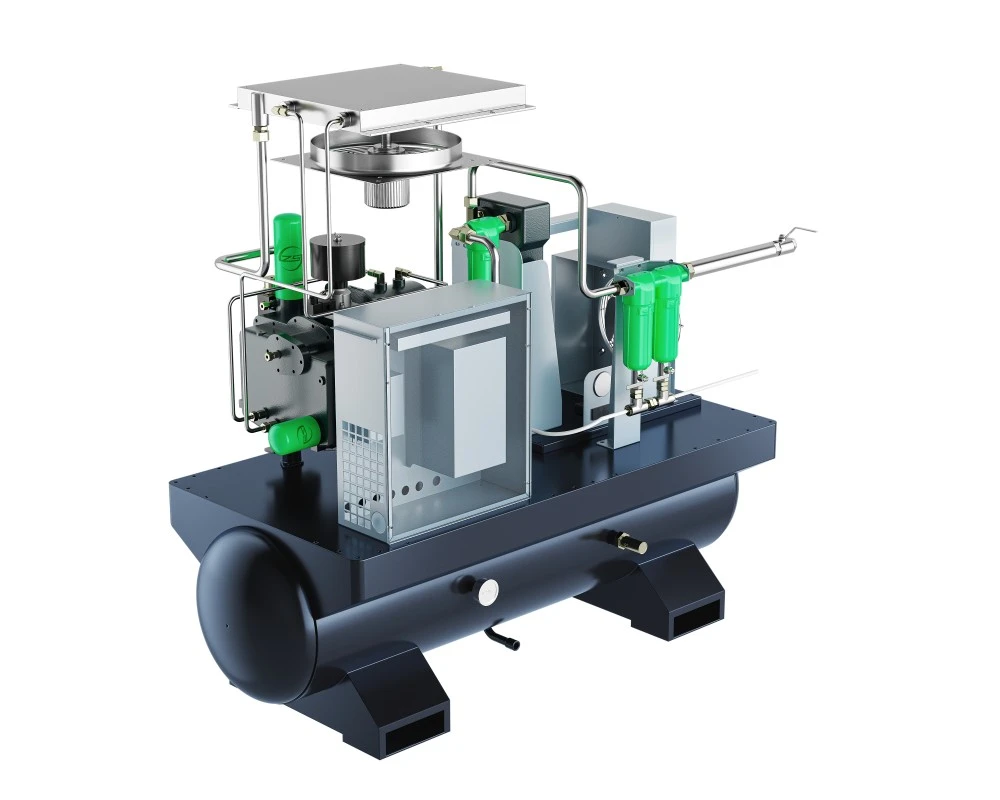

This unit integrates a reinforced high-pressure screw air end, a high-capacity 1.6 MPa rated air tank, and a high-load refrigerated dryer into one synchronized powerhouse.

Technical Performance Matrix (High-Pressure Series)

Specialized High-Pressure Strategic Advantages

- Reinforced High-Compression Air End: As a professional China manufacturer, we utilize a specialized rotor profile with a 5:6 lobe ratio optimized for 1.6 MPa. The housing is constructed from high-tensile nodular cast iron to prevent casing distortion under extreme internal pressure.

- Dual-Stage High-Load Cooling: Compressing air to 16 Bar generates significantly more heat. Our 16 Bar High Pressure All-In-One Air Compressor features an oversized aluminum plate-fin cooler and an independent fan to ensure the discharge temperature remains within safe limits.

- Triple-Seal Integrity: Every pipe connection within the “all-in-one” chassis uses hydraulic-grade flared fittings and O-ring face seals (ORFS) to eliminate the risk of micro-leaks common in high-pressure environments.

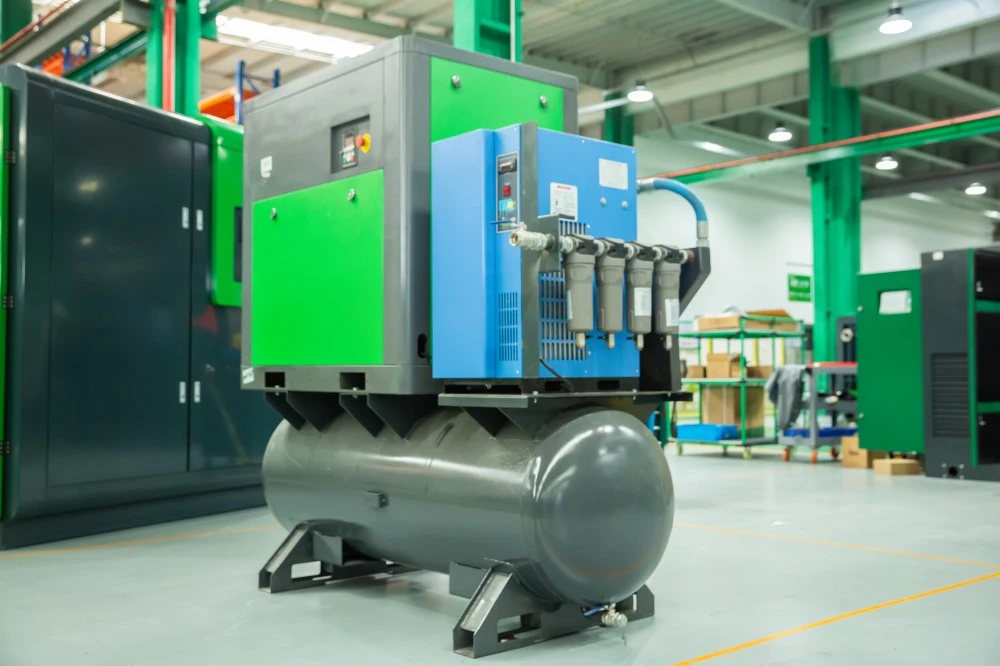

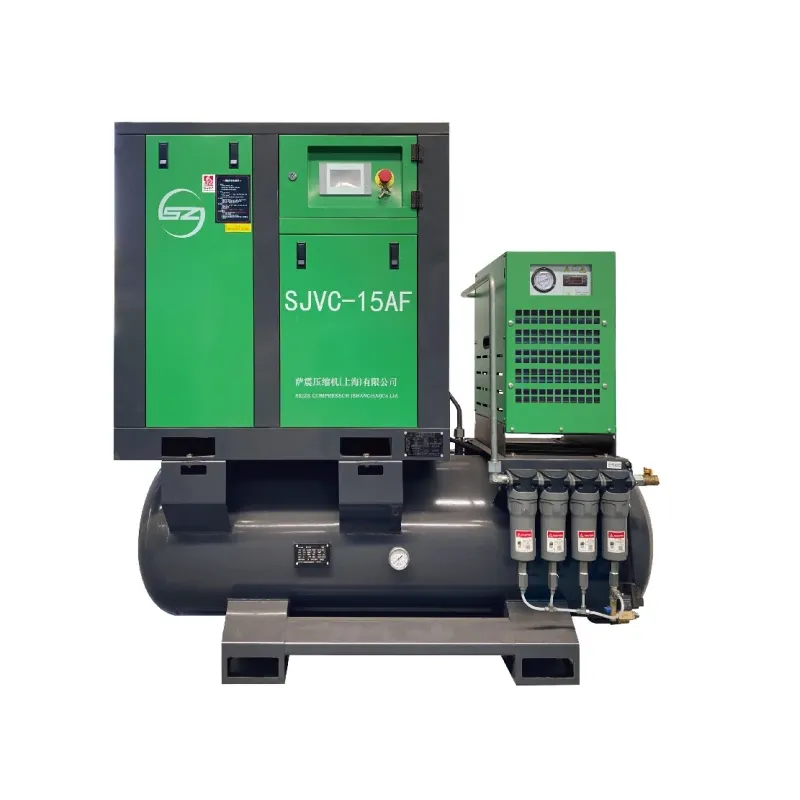

- Integrated Multi-Stage Purification: Includes four stages of high-pressure rated filters (Grades C, T, A, and H) to ensure the air is not just compressed, but clinically clean for sensitive downstream components.

Heavy-Duty Industrial Application Nodes

Our 16 Bar High Pressure All-In-One Air Compressor is the preferred choice for:

- Precision Metal Fabrication: Providing the necessary kinetic energy for 10 mm+ stainless steel cutting.

- Pneumatic Testing: Ideal for pressure-testing valves, pipelines, and automotive components.

- Specialized Manufacturing: Powering heavy-duty pneumatic presses and high-force robotic actuators.

Comparative Durability

- Ours: Uses a 1.6 MPa rated refrigerated dryer with reinforced copper heat exchangers.

- Theirs: Use standard dryers that often suffer from coil rupture under high-pressure spikes.

- Ours: Features a high-pressure oil-gas separator with dual-stage cyclonic technology.

- Theirs: Standard separators that allow higher oil carryover when the pressure increases.

Factory Compliance & Global Safety Standards

As a leading supplier, we ensure every 16 Bar High Pressure All-In-One Air Compressor meets the world’s strictest safety codes:

- Hydrostatic Certification: Each 1.6 MPa tank is tested at 2.4 MPa to ensure a 1.5× safety factor.

- Smart Monitoring: The PLC includes a “high-pressure over-limit” auto-shutdown and a safety valve that is calibrated and lead-sealed at the China factory.

- Seaworthy Protection: Shipped in a specialized vacuum-wrapped plywood crate to prevent corrosion during long-haul sea freight.

Professional FAQ

Q1: Why is a VSD (Variable Speed Drive) recommended for 16 Bar applications?

A: High-pressure systems consume more energy per cubic meter. By choosing our 16 Bar High Pressure All-In-One Air Compressor with a permanent magnet VSD, the motor adjusts its RPM to match your exact consumption, preventing wasteful over-pressurization and reducing your energy bill by up to 35%.

Q2: Does your factory provide the necessary documentation for local pressure vessel inspections?

A: Yes. As an export-focused China manufacturer, we provide the original manufacturer’s data report (MDR), CE/ASME compliance certificates, and the specific hydrostatic test report for the integrated tank to facilitate your local registration.

Q3: How does the integrated dryer handle the heat of 16 Bar compression?

A: We utilize a high-ambient-rated refrigerated dryer. Since 16 Bar air contains more heat energy, the dryer’s cooling capacity is oversized by 20% compared to standard models to ensure the dew point remains stable even during peak summer production.

Q4: What maintenance is specific to high-pressure units?

A: Beyond standard oil and filter changes, we recommend a semi-annual inspection of the high-pressure seals and the safety valve’s manual release. Our supplier network provides specialized “high-pressure seal kits” to keep your system leak-free for its entire 10–15 year lifespan.
