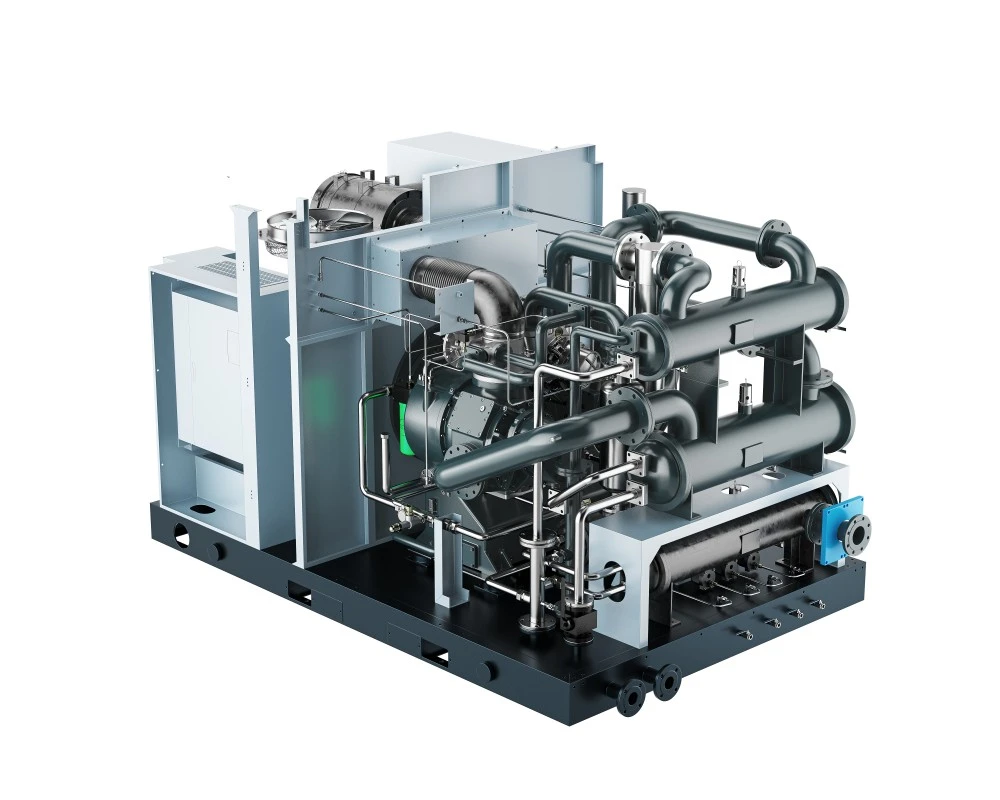

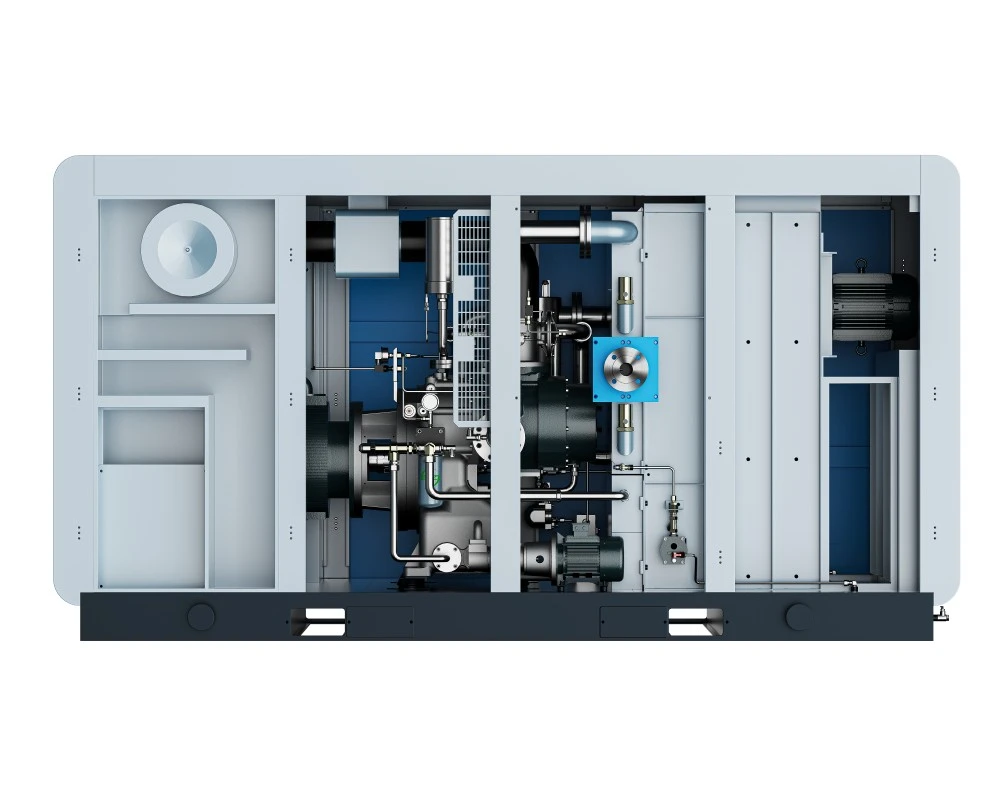

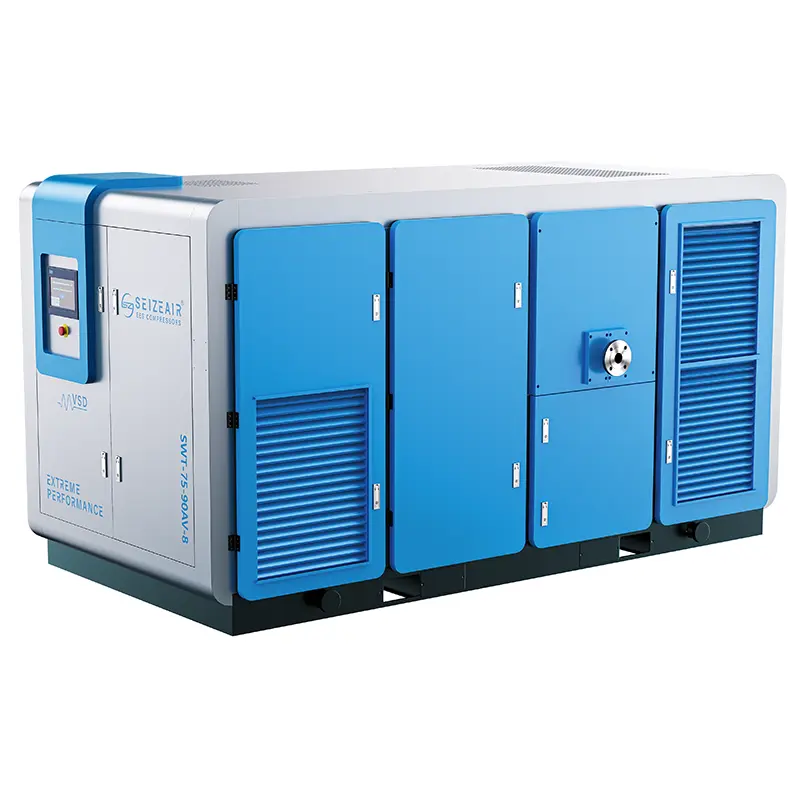

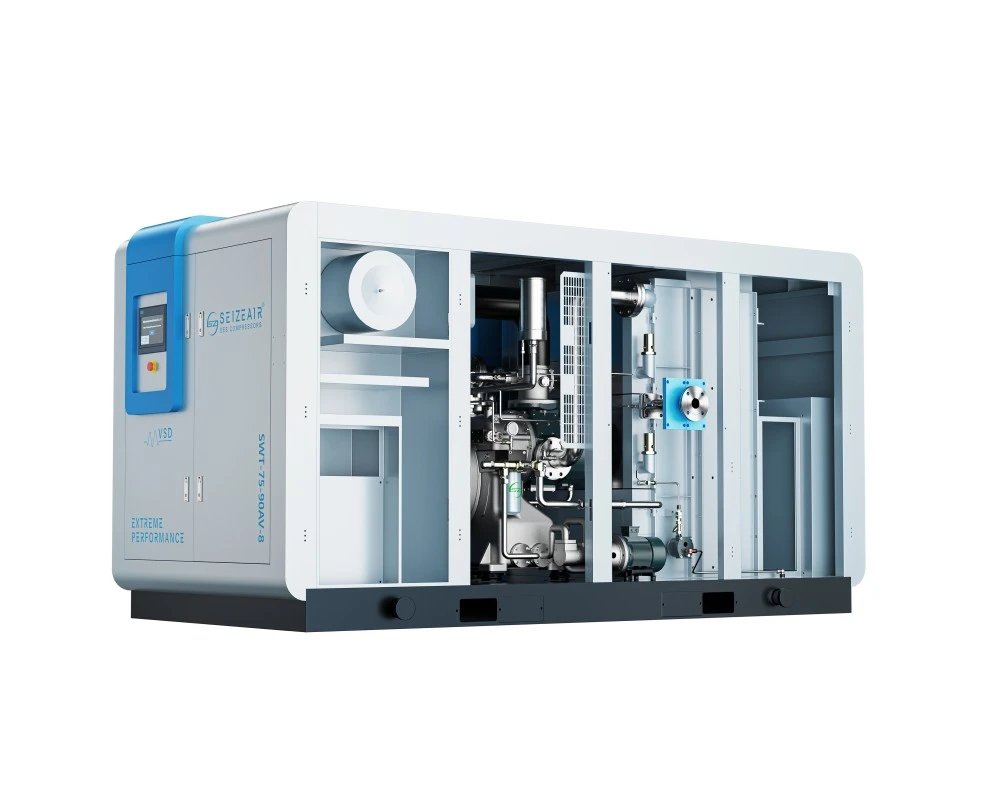

Class 0 PM VSD Dry Type Oil-Free Screw Air Compressor

The Science of Dry Compression: Absolute Purity

The Class 0 PM VSD Dry Type Oil-Free Screw Air Compressor is designed for environments where even a single molecule of oil could lead to product recall or production line failure. Unlike oil-injected or “oil-removed” systems, our “Dry Type” technology features a compression chamber that never comes into contact with lubricating oil. Precision-engineered rotors, coated with advanced Teflon-alternative polymers, rotate in a synchronized, contactless manner. This ensures that the compressed air is inherently clean from the moment of intake, meeting the most stringent global pharmaceutical and food-grade requirements.

Technical Specifications (Elite Oil-Free Series)

Strategic Advantages of PM VSD Technology

Ultra-Premium Energy Efficiency: As a professional China manufacturer, we utilize IE5-rated Permanent Magnet motors. By matching the motor speed precisely to your air demand, our VSD system eliminates “unload” power waste, reducing energy costs by up to 35% compared to fixed-speed oil-free units.

Liquid-Cooled Motor System: To handle the higher heat signatures associated with dry compression, our PM motor is liquid-cooled. This ensures the motor operates at an optimal temperature even at very low speeds, preventing the demagnetization risks common in air-cooled VSD motors.

Zero-Inrush Current: The VSD controller allows for a soft start, protecting your facility’s electrical grid from current spikes and extending the mechanical life of the compressor’s drive components.

Critical Industry Application Nodes

The Class 0 PM VSD Dry Type Oil-Free Screw Air Compressor is the standard for:

Pharmaceutical Manufacturing: Sterile air for pneumatic conveying, tablet coating, and packaging.

Food & Beverage: Clean air for PET blowing, product agitation, and clean-room environments.

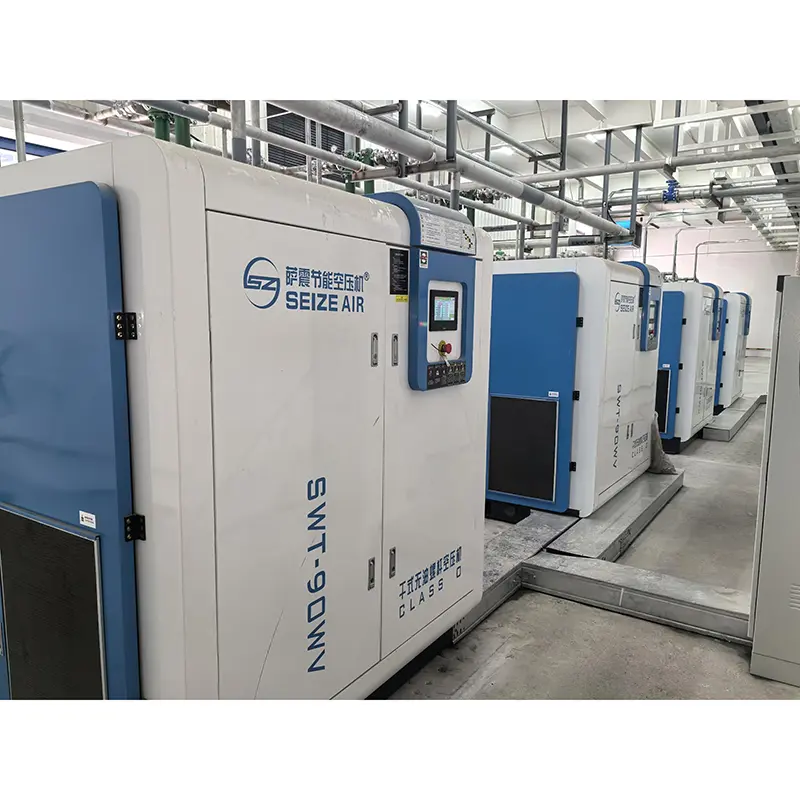

Semiconductor Fabrication: High-purity air for wafer handling and precision pneumatic actuators.

Hospitals & Labs: Medical-grade air for ventilators and sensitive laboratory equipment.

Engineering Excellence

Stainless Steel Rotors: In our high-capacity models, we offer stainless steel rotors to ensure zero corrosion over a 20-year lifespan, even in humid environments.

Atmospheric “Vent” Design: Our China factory utilizes a specialized isolation zone between the gearbox and the compression chamber. Any oil mist from the gearbox is vented to the atmosphere, ensuring it can never migrate across the seals into the air stream.

Oversized Intercoolers: For two-stage units, our oversized intercoolers drop the air temperature significantly between stages, improving volumetric efficiency and reducing thermal stress.

Quality Assurance & Factory Traceability

As a leading supplier, we implement a “Clean Room” assembly protocol for our oil-free series:

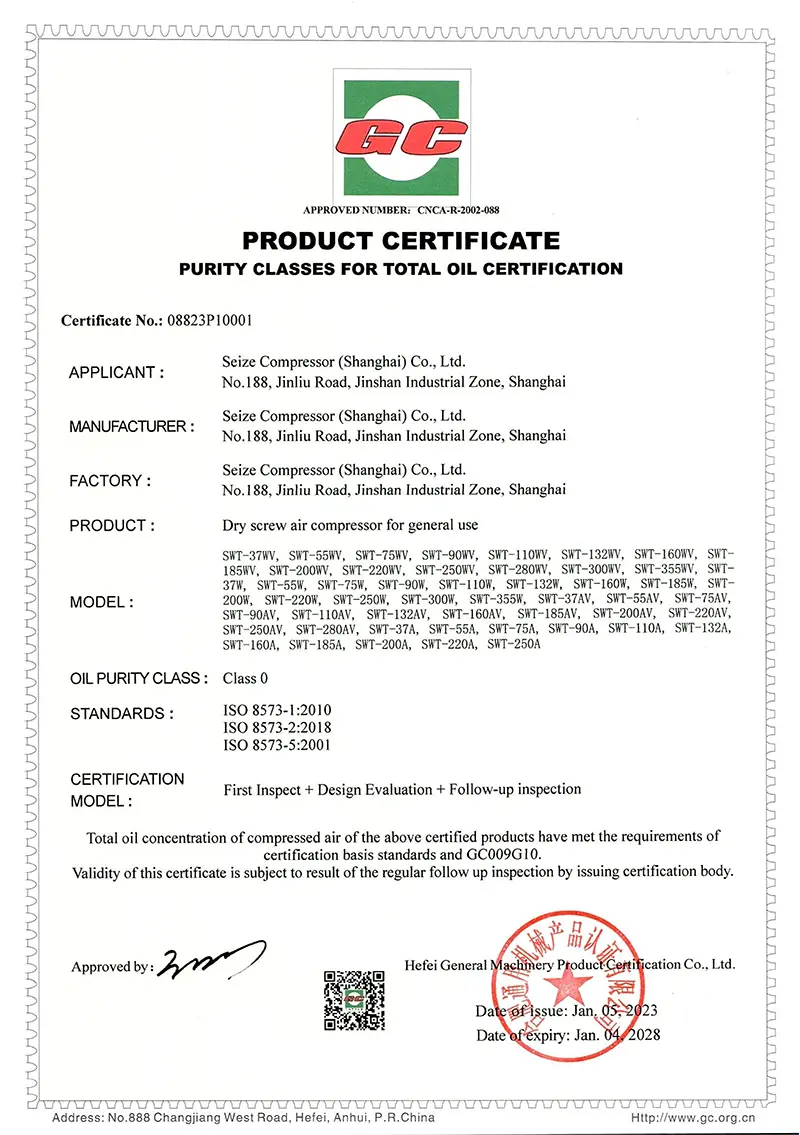

Class 0 Verification: Every unit is tested with a high-sensitivity oil-vapor analyzer to confirm zero oil content (< 0.003 mg/m³).

Vibration Mapping: Due to the high RPM of dry screw rotors, every air end is dynamically balanced to ensure minimal noise and zero mechanical resonance.

Endurance Run: A 24-hour continuous performance test at maximum pressure to verify the integrity of the carbon-ring seals.

Professional FAQ

Q1: What is the difference between “Oil-Free” and “Oil-Less” compressors?

A: “Oil-Less” often refers to small piston units. As a professional China manufacturer, our Class 0 PM VSD Dry Type Oil-Free Screw Air Compressor provides industrial-scale, continuous-duty air. “Oil-Free” means no oil is used in the compression chamber, ensuring the air is chemically pure and safe for pharmaceutical use.

Q2: How does the “Dry Type” rotor maintain efficiency without oil for sealing?

A: Efficiency is achieved through extreme precision. The gap between our rotors is measured in microns. While oil-injected units use oil to seal gaps, our dry screw rotors use high speeds and optimized profiles to minimize “blow-by” leakage, all managed by our intelligent VSD system.

Q3: Is maintenance more expensive for oil-free units?

A: While the air end technology is more advanced, you save significantly on downstream costs. There are no expensive oil-removal filters to replace, no condensate oil-water separators to manage, and zero risk of ruined products due to oil contamination.

Q4: Can this unit handle high-humidity environments?

A: Yes. We use specialized anti-corrosion coatings on the rotors and stainless steel piping for the cooling circuit. This makes our Class 0 PM VSD Dry Type Oil-Free Screw Air Compressor highly reliable in tropical or coastal manufacturing sites.
