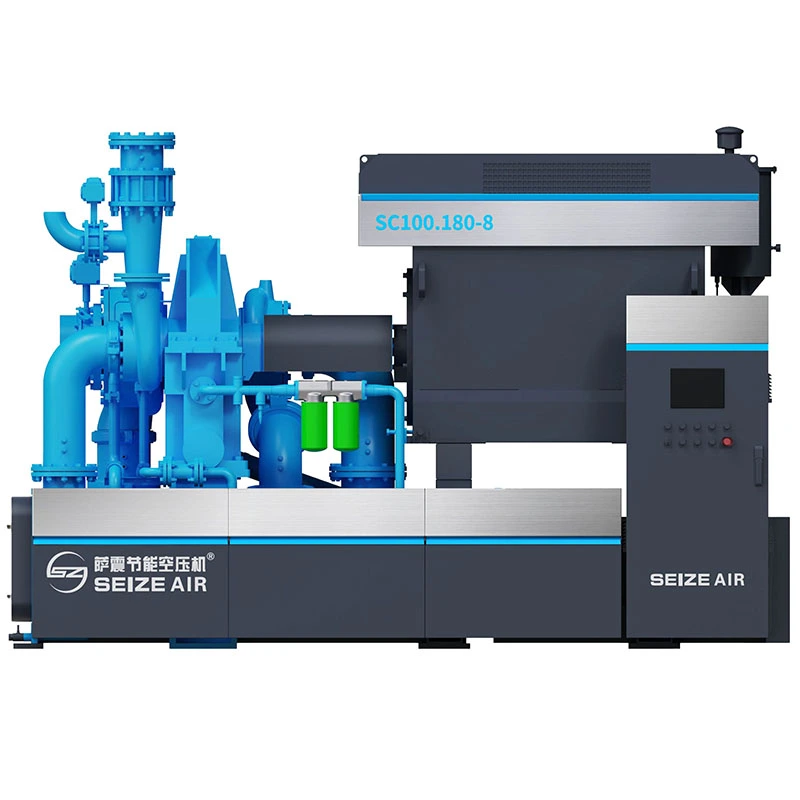

Chemical Plant Gear Turbo Air Compressor

Core Advantages & Selling Points

● Customized impeller and aerodynamic design improves efficiency by 1%~8% compared to traditional wedge-type blades.We use 3D backward-curved blades, with flow ratio below 1.5 per model and maximum single-unit flow up to 1500 m³/min.

● Vibration control exceeds API standards – rotor AF <2.5 (critical damping state) and dynamic balance grade G0.4 surpasses industry G1.

● 100% oil-free guarantee through isolated sealing systems, multi-stage labyrinth oil seals, and -2kPa gearbox vacuum ensuring zero lubricant contact with compressed air.

● Smart anti-surge control with constant pressure mode, auto dual-mode, and surge anticipation handling >30kPa fluctuations.

● IE5 ultra-premium efficiency permanent magnet motor + two-stage technology reduces compression ratio per stage and extends service life.

Technical Specifications

● Power range: 255 ~ 2200 kW

● Air flow: 80 ~ 1500 m³/min

● Rated pressure: 0.8 ~ 16 bar (customizable to 11~35 bar as non-standard)

● Gear precision: AGMA 13, gear material 17CrNiMo6 steel, design life of 25 years.

● Impeller material: 17-4PH forged stainless steel, 5-axis CNC machining with μm-level precision.

● Thrust ring design reduces axial bearing wear by 40%, and vibration levels are 60% lower than API thresholds.

● Thermal management system: Oversized air filters (<0.8kPa pressure drop), 1.5X oil coolers (inlet temp <40°C), and API 614-compliant oil reservoir (5-minute capacity).

● Control interface: 10.2″ HMI touch screen + mobile APP for remote O&M, with MODBUS/DCS integration.

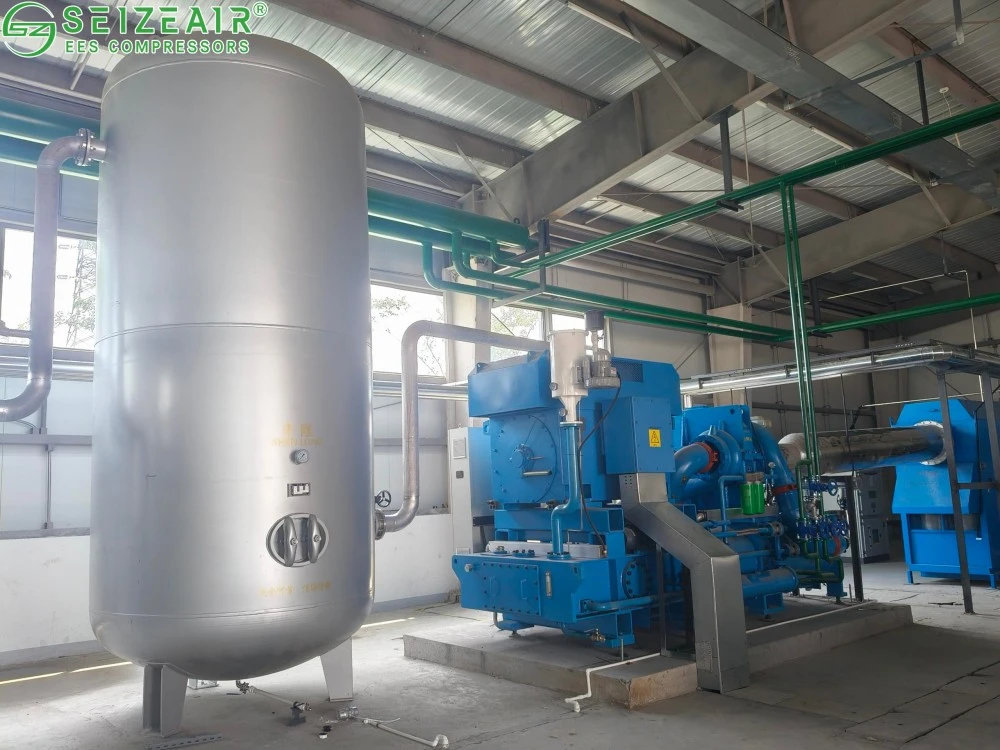

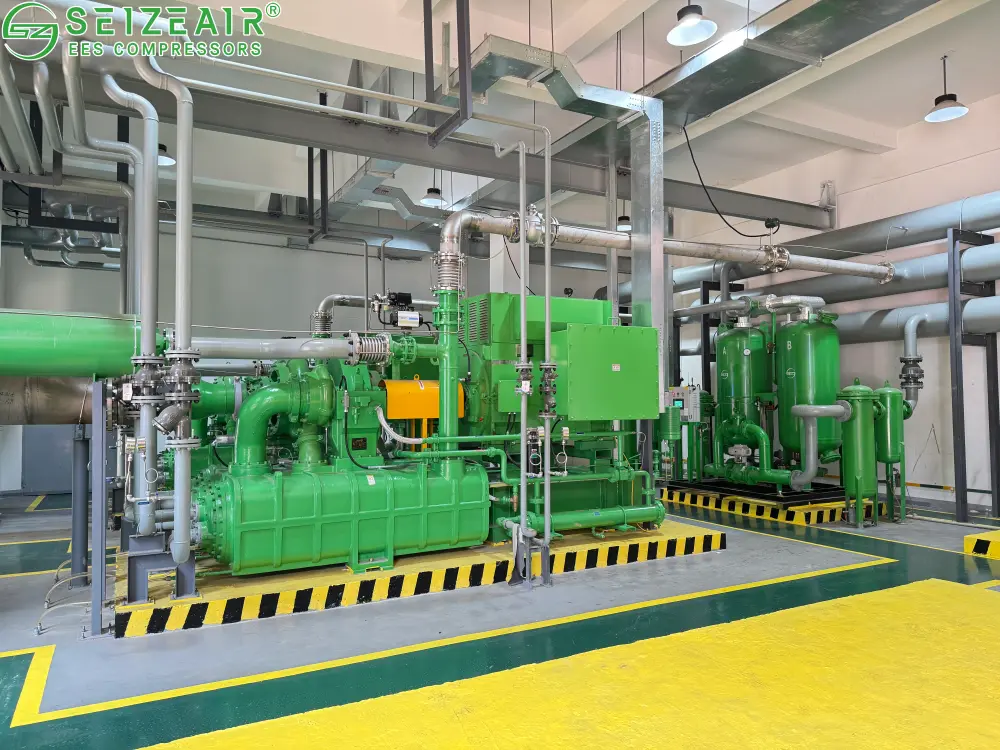

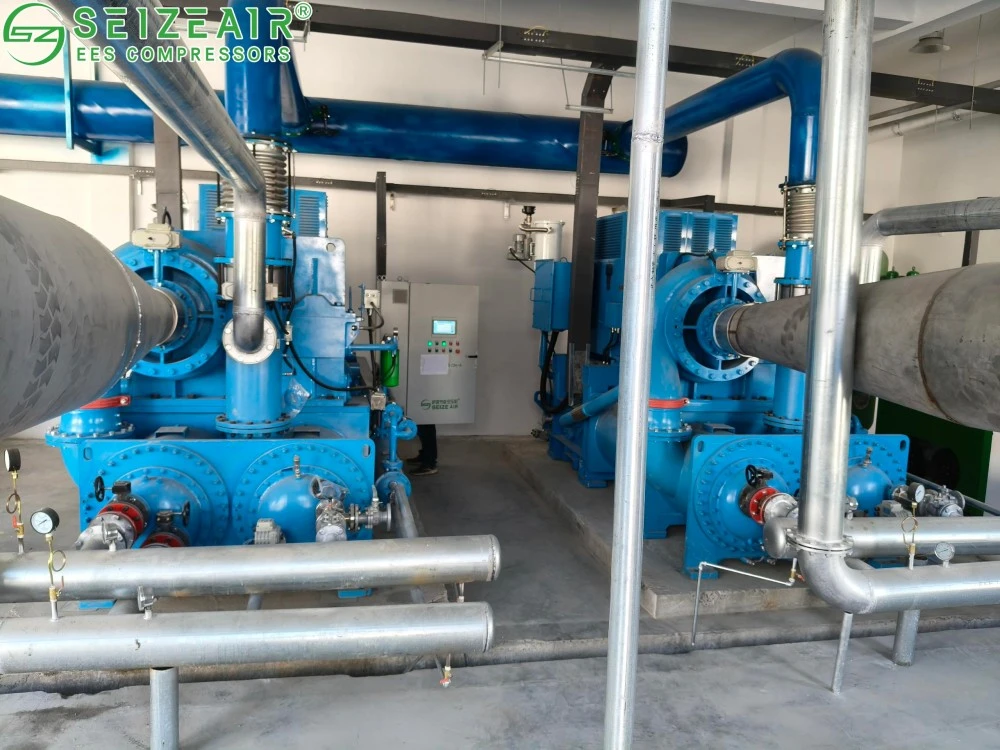

Applications & Case Studies (with Scene Images)

Municipal wastewater treatment plant Wastewater treatment: 24/7 continuous operation in humid and corrosive environments, with 12% lower energy consumption than similar products.

Bio-fermentation: Compatible with heat recovery systems – compression heat can be used for fermentation tank insulation, greatly reducing operating costs.

Chemical processing: Seamless MODBUS integration into DCS enables unattended operation and precise process gas delivery.

Comparison Advantages vs. Competitors – Why Choose Us?

● Compared to ordinary centrifugal compressors: Our operating range is 30% wider (flow ratio <1.5 vs industry average 2.0), especially suitable for chemical plants with frequent load fluctuations.

● Vibration levels are 60% lower than API 672 limits, resulting in lower bearing wear and longer maintenance intervals.

● Gear life of 25 years versus industry typical 15~20 years; we use 17CrNiMo6 carburized steel and AGMA 13 precision, far exceeding competitors.

● We are a China Manufacturer, offering direct factory pricing and fast response within 48 hours, with no intermediary markups.

After-Sales Service & Installation Guidance

● We provide global remote commissioning and on-site installation guidance, with a QR code for the installation video (same YouTube link) included in the delivery.

● After-sales commitment: 2-year warranty on the complete unit, 5-year warranty on the air-end (main body).

● One free annual health check (vibration analysis, thermal imaging, oil analysis) with a diagnostic report.

● Spare parts supply: All wear parts (air filters, oil filters, seals) are guaranteed for 10 years, shipped within 24 hours from our Shanghai warehouse.

Customer Trust & Brand Endorsement

Our clients include Sinopec, Baowu Steel, Veolia Environment, and other Fortune 500 companies.

Customer testimonial (excerpt): “Our chemical plant has used this compressor for 18 months without any surge shutdown, and energy consumption is 9% lower than the old unit. Highly recommended.” – Equipment Director, a fine chemical group.

Frequently Asked Questions (FAQ)

Q: What is the lead time?

A: Standard products (pressure ≤10 bar, flow ≤500 m³/min) lead time 60~75 days; non-standard custom (special pressure or material) 90~120 days.

Q: How do you guarantee 100% oil-free?

A: We use air seals vented to atmosphere, multi-stage labyrinth oil seals, and gearbox vacuum suction to ensure lubricant never enters the compression chamber under any condition. Each unit undergoes ISO 8573-1 Class 0 oil-free testing before shipment.

Q: Which communication protocols are supported for remote monitoring?

A: Standard configuration supports MODBUS RTU/TCP, Profibus DP, and Ethernet/IP. Optional OPC UA or MQTT for industrial IoT platform integration.

Customization & Process Flow

● Customization scope: Pressure (11~35 bar), flow (based on impeller aerodynamic simulation), special flange connections, explosion-proof motor, offshore environment coating, etc.

● Typical customization process:

① Customer provides process data sheet →

② We perform CFD flow simulation and rotor dynamics analysis →

③ Provide detailed technical proposal and 3D model →

④ Sign technical agreement →

⑤ Manufacturing with key inspection photos →

⑥ FAT (Factory Acceptance Test) →

⑦ Shipment.
