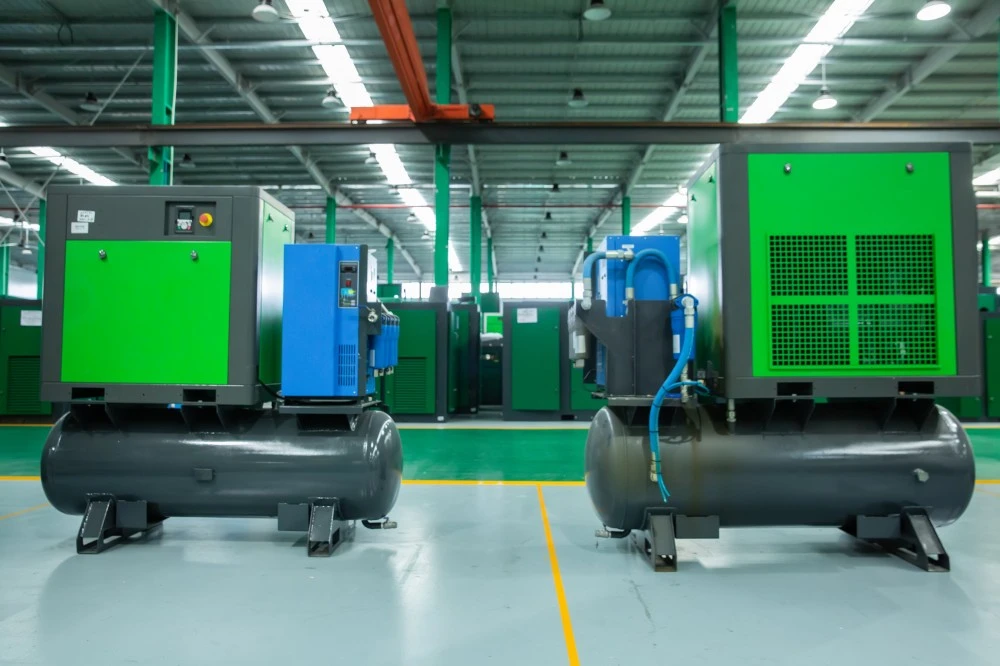

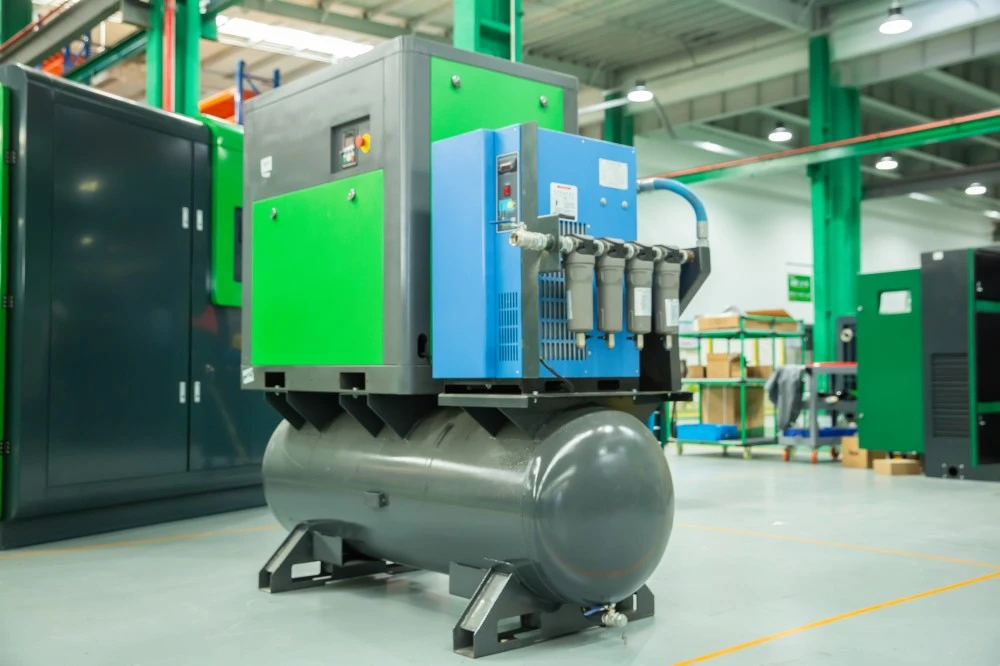

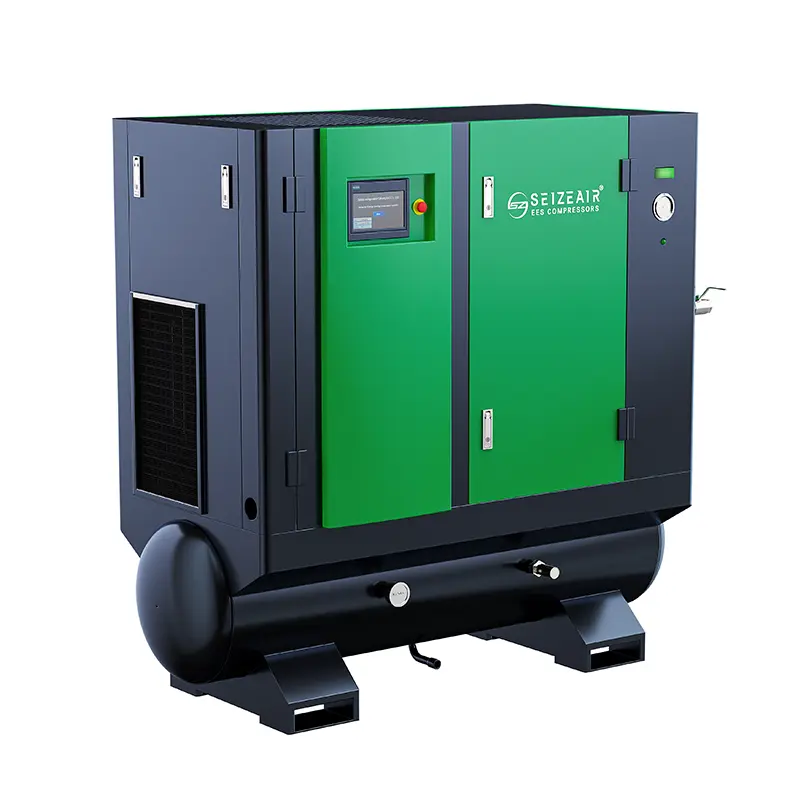

16 Bar Laser Cutting All-In-One Air Compressor

Specialized Design for Fiber Laser Processing

The 16 Bar Laser Cutting All-In-One Air Compressor is the result of deep collaboration with laser machine manufacturers. In the laser industry, the assist gas does more than just blow away molten metal; it cools the workpiece and protects the precision optics.

Standard compressors often fail to maintain the constant 16 Bar pressure required for thick-plate piercing. This 4-in-1 integrated unit ensures that every cubic meter of air is compressed, stored, dried, and filtered to a microscopic level, preventing lens contamination and reducing the “dross” on the underside of the cut.

Technical Specifications (Laser-Focused Performance)

The “Laser-Safe” Advantage

- Optic-Grade Filtration Array: As a professional China manufacturer, we integrate five stages of filtration. This includes an active carbon adsorber that removes oil vapors, which are the primary cause of laser protective window “fogging.”

- 1.6 MPa Steady-State Delivery: Most “all-in-one” units struggle to maintain 16 Bar during continuous cutting. Our 16 Bar Laser Cutting All-In-One Air Compressor is designed with a high-torque air end that maintains a flat pressure curve even during high-velocity piercing cycles.

- Integrated High-Spec Refrigerated Dryer: We use an industrial-grade dryer with reinforced copper piping. It effectively removes 99% of atmospheric moisture, preventing “water mist” from interfering with the laser beam’s focus.

- Smart VSD Frequency Control: The permanent magnet motor adjusts its speed in milliseconds. When the laser stops cutting, the compressor slows down, saving up to 35% in energy compared to fixed-speed alternatives.

 Industrial Integration & Shop Floor Efficiency

- Plug-and-Cut Readiness: Our China factory ships these units fully commissioned. With an integrated tank and dryer, you eliminate the pressure drop caused by long external piping runs, ensuring maximum kinetic energy at the nozzle.

- Low Vibration Foundation: The internal motor and air end are mounted on heavy-duty dampers, ensuring that vibrations do not transfer to the laser cutting table, even if the unit is placed in close proximity.

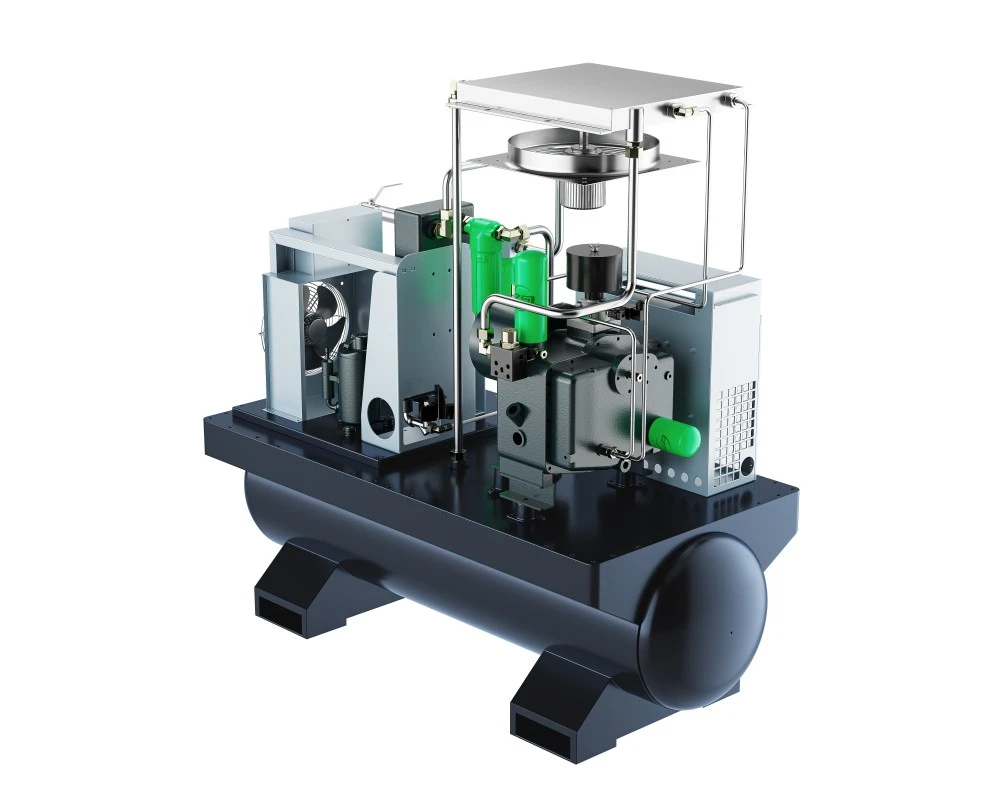

- Compact 1.5 m² Footprint: By stacking the components vertically, we provide a complete air station that fits into tight workshop spaces, leaving more room for material handling.

Quality Control: The Manufacturer’s Standard

As a leading supplier, we adhere to a “zero oil, zero moisture” philosophy:

1. Laser Head Simulation Test: Every unit is tested against a simulated high-flow laser nozzle to verify pressure stability at 1.6 MPa.

2. Particulate Audit: We use laser particle counters to ensure the discharge air meets ISO 8573-1 Class 1.2.1 standards for air purity.

3. Hydrostatic Safety: The 16 Bar tanks are tested at 2.4 MPa to ensure absolute safety for operators in the workshop.

Why Partner with Our Factory for Laser Solutions?

- Customization: We can adjust the PLC software to communicate with your laser’s CNC system for remote start/stop functionality.

- Global Support: As a professional China manufacturer, we provide specific maintenance kits designed for laser users, including high-efficiency filter elements that are easy to replace.

- Durability: While others use standard parts, we use high-pressure rated valves and seals designed for the high-frequency cycles of a laser fabrication shop.

Laser Engineering FAQ

Q1: Why is 16 Bar the “sweet spot” for air-assist cutting?

A: At 16 Bar, compressed air has enough kinetic energy to cut through stainless steel and carbon steel up to 10–12 mm with a finish quality that rivals nitrogen, but at a fraction of the cost. Our 16 Bar Laser Cutting All-In-One Air Compressor is the most cost-effective solution for fabricators looking to reduce their gas utility bills.

Q2: How does your factory prevent oil from damaging my laser lens?

A: We use a combination of a high-efficiency centrifugal separator, a deep-bed oil-gas separator, and a final active carbon stage. This ensures that the oil content is practically unmeasurable, protecting your lens and collimating mirror from “burning.”

Q3: Can this unit handle the high ambient heat of a metal fabrication shop?

A: Yes. We use an oversized aluminum radiator and a high-static pressure fan. The 16 Bar Laser Cutting All-In-One Air Compressor is rated for continuous operation at ambient temperatures up to 45°C without a drop in air quality.

Q4: Is the tank large enough for high-wattage (10 kW+) lasers?

A: For ultra-high-power lasers, flow is more important than storage. However, our integrated 500–600 L tank acts as a vital buffer to smooth out pressure spikes when the laser nozzle opens, ensuring consistent beam-gas interaction.
