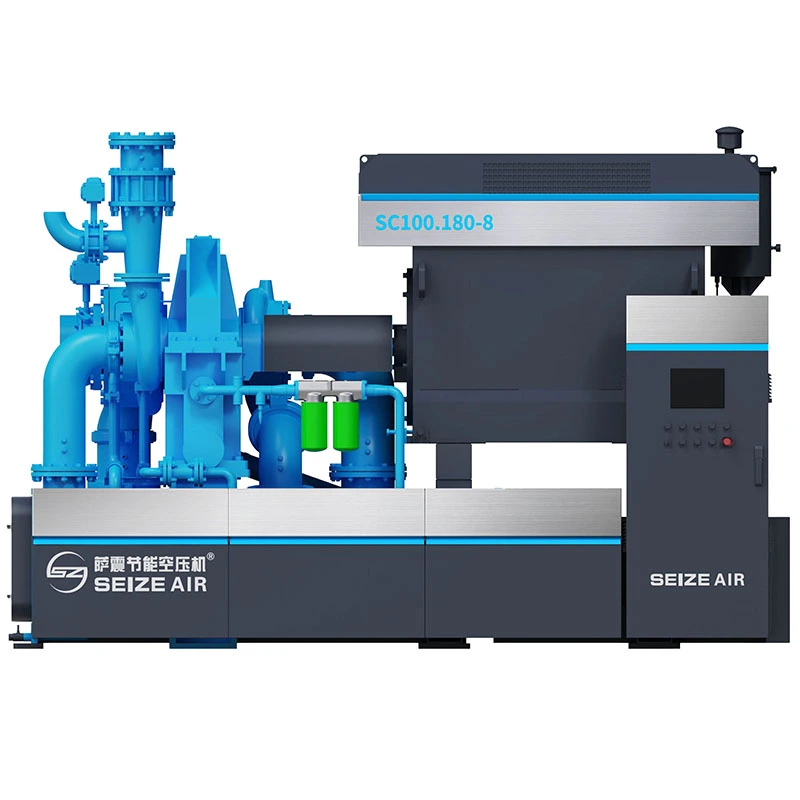

Bio-fermentation Industry Special Gear Turbo Centrifugal Air Compressor

Core Advantages & Selling Points

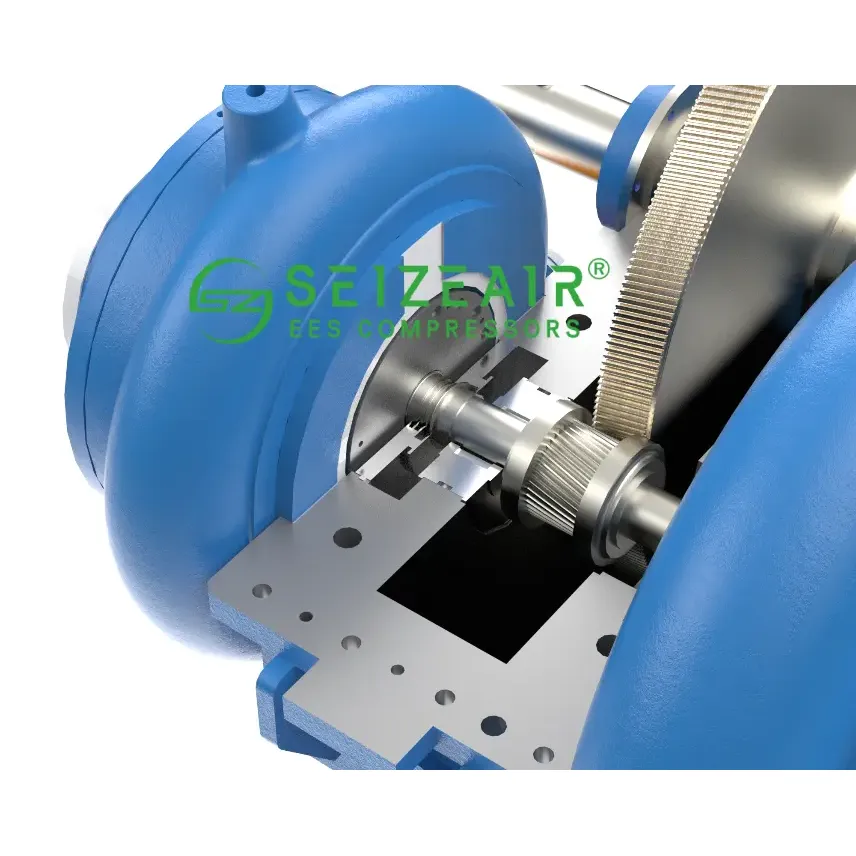

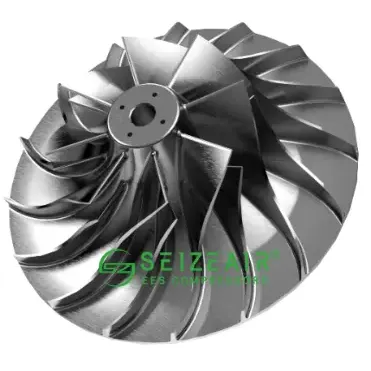

1. More Stable Vibration Control: High-speed rotor AF＜2.5, designed to API672 standard in critical damping state; impeller made of 17-4PH integral forging with 5axis milling, dynamic balance reaches G0.4, far exceeding industry G1 standard for smoother and more reliable operation.

2. Better Operating Efficiency: Aerodynamic system customized to customer working conditions, adopting latest aerodynamic design with no technological gap, ensuring optimal efficiency and wider working condition adaptability.

3. More Reliable Temperature Control: Oil tank designed to API614 standard with 5-minute oil reserve; oil cooler enlarged by 1.5 times, inter-stage cooler ensures inlet temperature below 40℃ per stage; air filter with double margin, inlet pressure loss less than 0.8kPa.

4. Completely Anti-oil Leakage: Pipeline hoses adopt SAE flange connection to avoid thread leakage; oil seal uses multi-step labyrinth structure for stronger sealing, maintenance-free and leak-proof.

Technical Specifications

● Flow Rate: 80-1500m³/min

● Power: 255-2200kW

● Discharge Pressure: 0.5-2barG

● Impeller Material: 17-4PH Stainless Steel/Titanium Alloy

● Dynamic Balance Level: G0.4

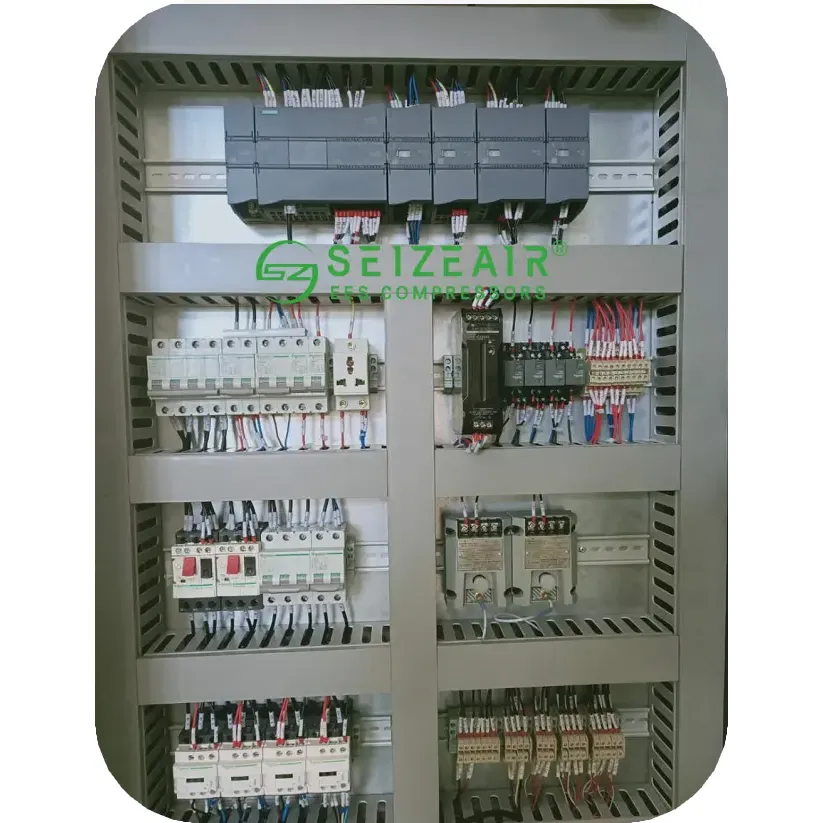

● Control Mode: Constant Pressure Energy Saving/Auto Dual Control

● Communication Protocol: MODBUS/PROFIBUS

● Protection Grade: Meets Anti-corrosion and Dust-proof Requirements of Bio-fermentation Workshop

Customer Focus Points for Centrifugal Compressors: Vibration (Stability), Efficiency, Temperature, Oil Leakage

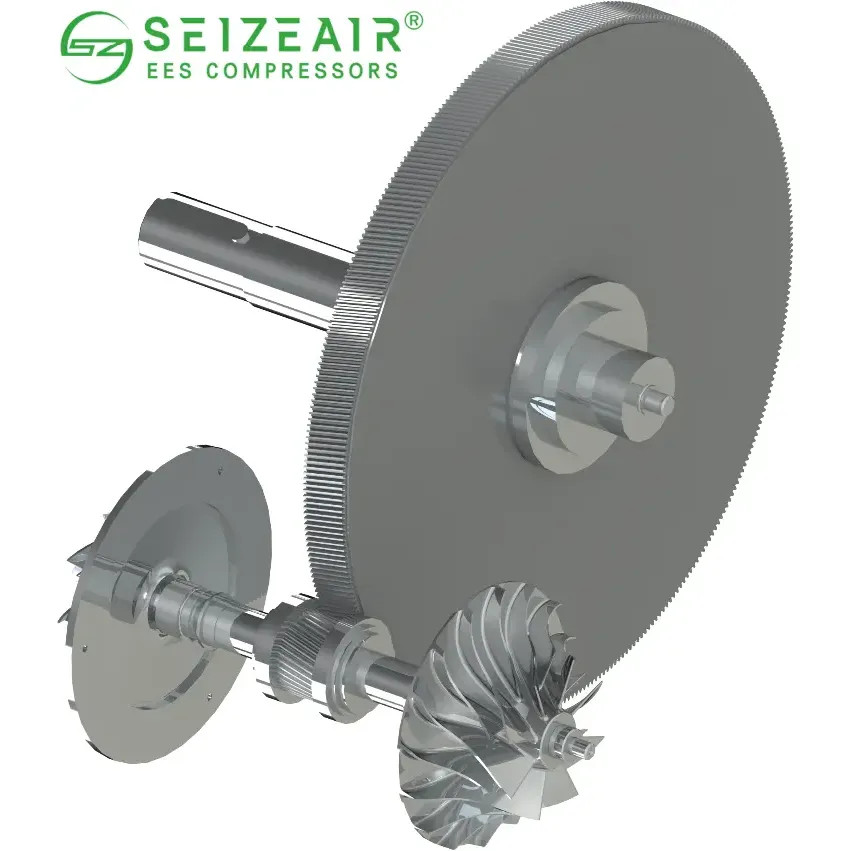

●  Vibration1.1 Design: High-speed rotor AF＜2.5, meets API672 requirements, operates in critical damping state with no separation margin required.1.2 Manufacturing: 17-4PH integral forging, 5-axis milling, micron-level precision control.1.3 Dynamic Balance: Dynamic balance accuracy reaches G0.4, higher than the industry standard G1.

●  Efficiency2.1 Aerodynamic design is customized according to customer working conditions, providing optimal operating efficiency and wider application range.2.2 Adopts the latest aerodynamic design technology with no technological gap.

●  Temperature3.1 Oil tank is designed per API614 standard with a minimum 5-minute oil capacity, offering better heat dissipation.3.2 Oil cooler is designed with 1.5 times enlarged capacity to effectively reduce oil inlet temperature; enlarged cooler design ensures inlet temperature of each stage is below 40℃.3.3 Air filter is designed with double margin, inlet pressure loss is less than 0.8kPa.

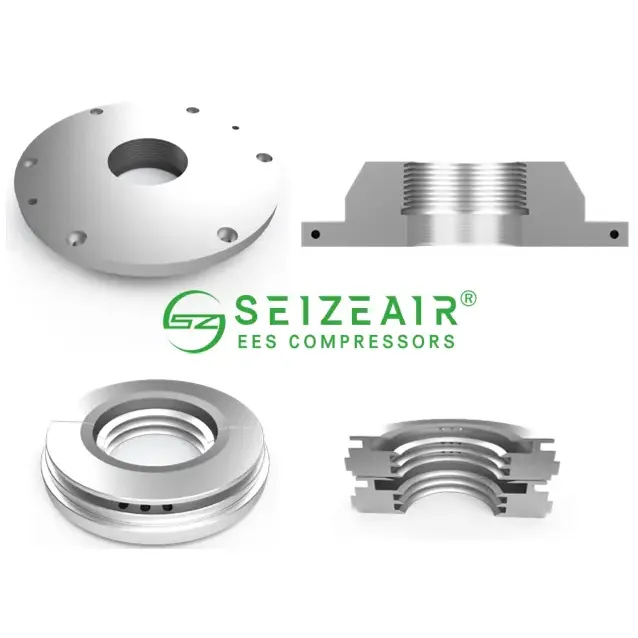

●  Anti-Oil Leakage4.1 Pipeline hoses adopt SAE flange connection to prevent oil leakage caused by threaded connection disassembly.4.2 Multi-step labyrinth seal is used for oil seal, ensuring reliable sealing and maintenance-free operation.

Client Cases

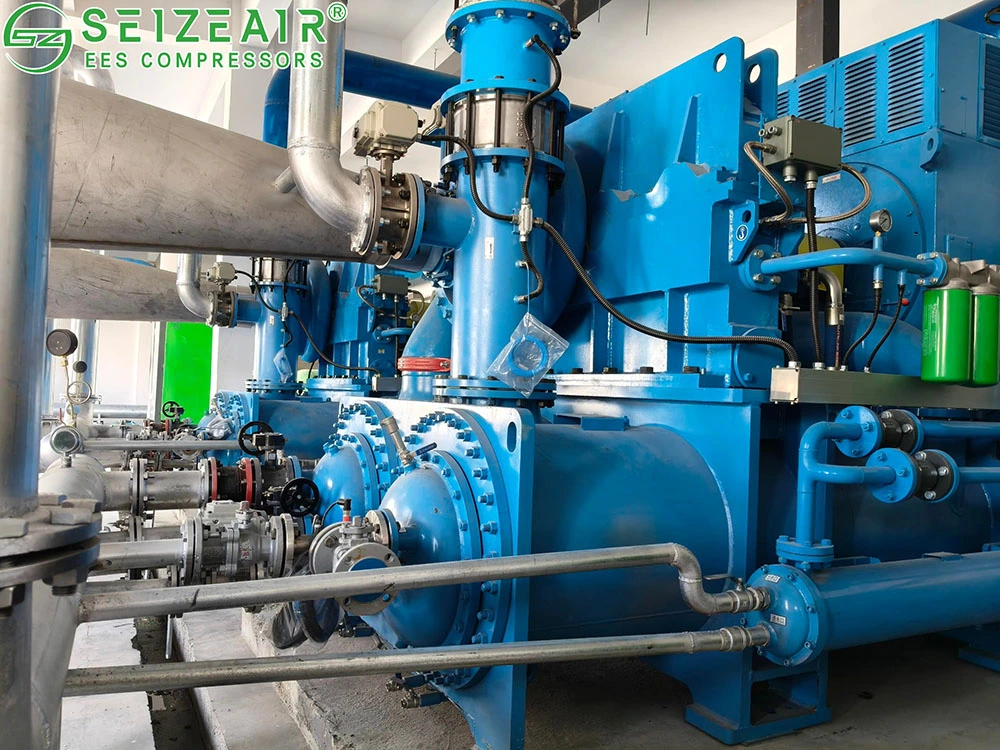

This China special centrifugal air compressor for bio-fermentation is widely used in the whole bio-fermentation industry chain, including antibiotic fermentation, amino acid production, enzyme preparation, probiotic culture, biopharmaceutical, food fermentation, yeast production and other scenarios.Typical Case: A biotech new material factory adopts 2 sets of 120m³/min, 0.8MPa units with built-in waste heat recovery system for continuous air supply to fermentation process, saving more than 300,000 kWh of electricity annually. The heat recovery is used for workshop heating and process insulation, with comprehensive energy consumption reduced by more than 25%.

Quality assurance

As a professional Bio-fermentation Industry Special Gear Turbo Centrifugal Air Compressor Manufacturer, Seize has complete production qualifications and patent certifications. All special models for bio-fermentation have passed high-precision dynamic balance test, overspeed test and energy efficiency test. The production line is equipped with high-precision rotor grinding machine. Each unit undergoes full-process quality inspection before delivery to ensure adaptation to the harsh use environment of fermentation industry.

Why choose Seize?

1. Direct supply from source Factory, no middleman price increase, leading cost performance in the industry.

2. Focused on R&D of energy-saving air compressors for 17 years, with customized technology for special models in bio-fermentation industry.

3. Oil-free design fully meets GMP relevant air requirements, more suitable for fermentation scenarios than ordinary centrifugal compressors.

4. Waste heat recovery system can recover 70%-80% of heat energy, additionally reducing operating costs for fermentation enterprises.

5. More than 30 service outlets nationwide, export experience to more than 20 countries around the world, a reliable centrifugal air compressor Supplier.

FAQ

Is this model really oil-free?

A: Adopting labyrinth + air film double seal and vent structure, 100% oil-free in compression chamber, meeting fermentation sterile requirements.

Can the equipment operate continuously for 24 hours?

A: Yes, core components are designed according to API standards, supporting continuous and stable operation in bio-fermentation workshop.

How long is the warranty period?

A: 1-year warranty for the whole machine, 2-year warranty for core components, lifelong maintenance service provided.

Can it be customized according to fermentation air volume?

A: Support customized design of flow, pressure, waste heat recovery, etc., matching different fermentation processes.

How to realize remote monitoring?

A: Through PLC + cloud platform, you can view real-time operation data and modify parameters via mobile phone/computer.
