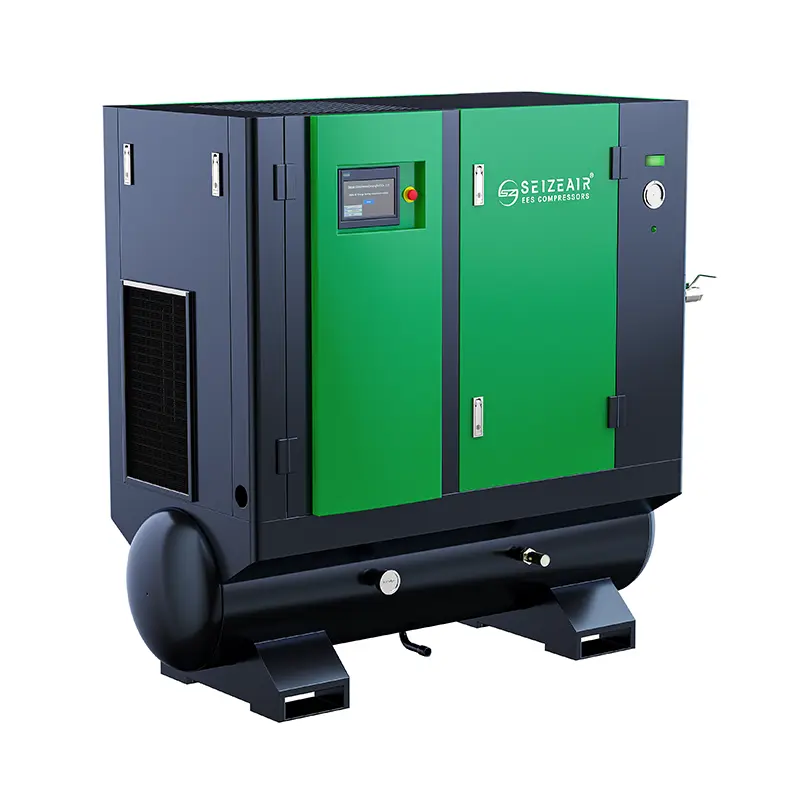

Skid Mounted All-In-One Air Compressor

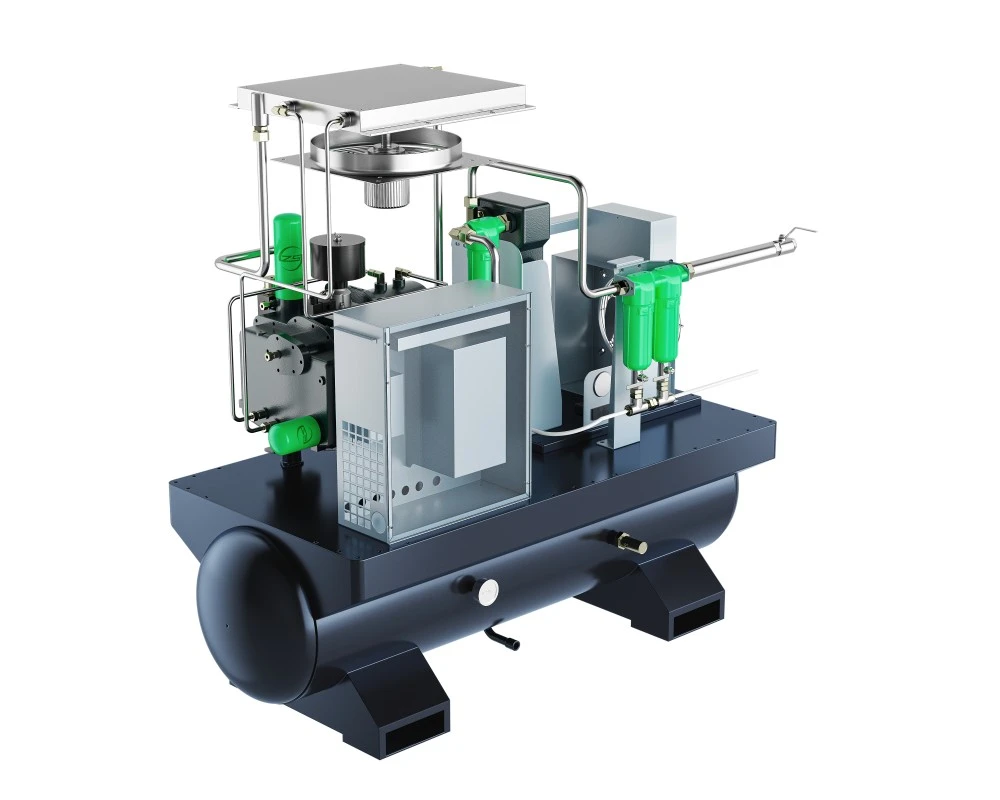

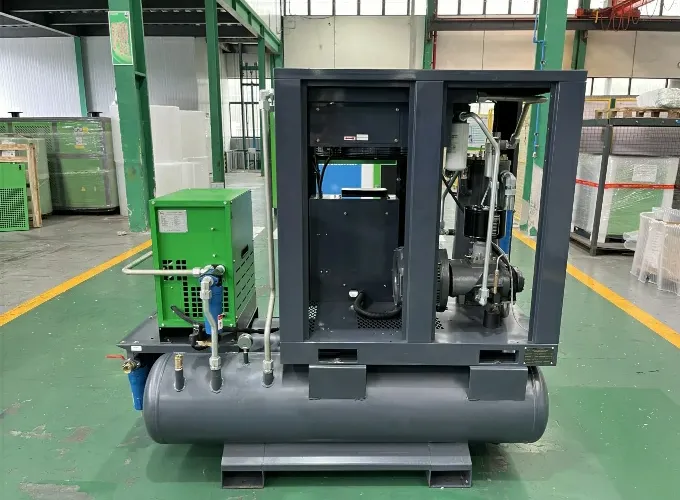

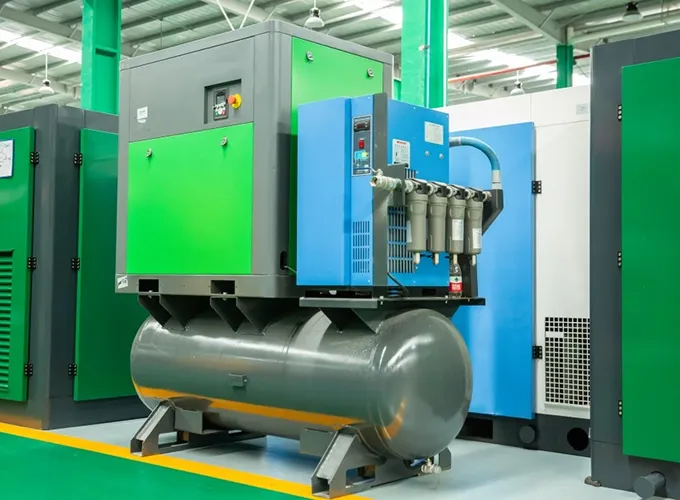

The Skid Mounted All-In-One Air Compressor represents the pinnacle of industrial integration. Designed as a self-contained unit on a rigid H-beam steel frame, this system eliminates the need for a dedicated, permanent compressor room. By mounting the screw compressor, refrigerated dryer, and filtration modules on a unified structural skid, we provide a vibration-damped, pre-piped station that can be relocated by forklift or crane. It is the perfect solution for temporary job sites, rental fleets, or facilities where floor layouts are frequently reconfigured.

Technical Performance Matrix (Skid-Base Series)

Strategic Engineering Advantages

Structural Rigid Base Frame: As a professional China manufacturer, we utilize CNC-welded structural steel for the skid base. This prevents mechanical stress on internal pipework during relocation and ensures the air end remains perfectly aligned even on non-level factory floors.

Rapid Site Deployment: This Skid Mounted All-In-One Air Compressor arrives 100% factory-tested. Unlike modular setups, there is zero site welding or complex plumbing required. Simply connect the power and the main air header.

Centralized Condensate Management: All moisture from the dryer, filters, and tank is routed to a centralized, skid-mounted manifold with an intelligent automatic drain, keeping the installation area dry and safe.

Enhanced Service Access: The skid layout is engineered for 360-degree accessibility. Every panel is removable, allowing maintenance crews to service the compressor and dryer without dismantling the entire station.

Industrial Versatility & Application Nodes

The Skid Mounted All-In-One Air Compressor excels in environments requiring a “Dynamic Air Supply”:

Construction & Tunneling: Reliable power for pneumatic tools in temporary work zones.

Containerized Workshops: Fits perfectly into standard ISO containers for remote oil & gas or mining sites.

Emergency Air Backup: A mobile station that can be quickly moved to any production line experiencing a primary system failure.

Why Choose Our Skid-Base?

Ours: Uses automotive-grade powder coating on the steel skid for superior rust protection in humid environments.

Theirs: Uses simple paint that chips and rusts when the unit is moved.

Ours: Includes a high-efficiency VSD controller that stabilizes pressure during the “Cold Start” often required in outdoor or temporary setups.

Theirs: Standard fixed-speed motors that strain the local electrical grid during startup.

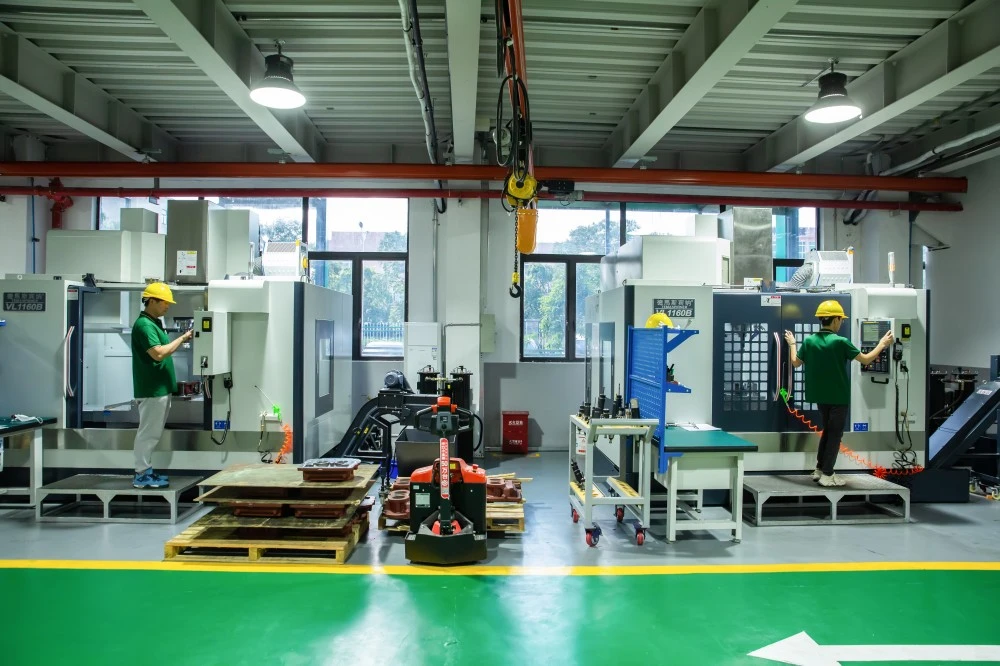

Factory Precision & Quality Assurance

As a leading supplier, our China factory subjects every skid-mounted unit to rigorous stress tests:

Transport Vibration Simulation: We verify that every flange and bolt remains torqued after simulated movement stress.

Integrated Thermal Run: The compressor and dryer are run simultaneously at 100% load for 8 hours to ensure zero heat interference between components.

Pressure Drop Audit: We guarantee the pressure drop from the compressor outlet to the skid discharge valve is less than 0.01 MPa.

 Professional FAQ

Q1: Do I need a concrete foundation for this Skid Mounted All-In-One Air Compressor?

A: No. One of the primary advantages of our skid design is that it is self-supporting. As long as the floor is solid and capable of bearing the machine’s weight, the reinforced steel frame handles all operational vibrations without requiring specialized foundations.

Q2: How does your factory handle the power supply for the integrated dryer?

A: As a professional China manufacturer, we provide a unified electrical cabinet. The refrigerated dryer and cooling fans are pre-wired to the main compressor controller. You only need to provide a single three-phase power connection to the machine’s main breaker.

Q3: Can this skid-mounted unit be customized for outdoor use?

A: Absolutely. We offer a “Weatherproof Upgrade” package which includes an IP65-rated electrical cabinet, specialized intake louvers, and a rain-protected roof, making the Skid Mounted All-In-One Air Compressor suitable for sheltered outdoor operation.

Q4: Is it easy to integrate this into an existing compressed air network?

A: Yes. The discharge port is located at a standardized height on the side of the skid. As a leading supplier, we can provide flexible stainless steel hoses or Victaulic couplings to make the connection to your existing plant piping fast and leak-free.
