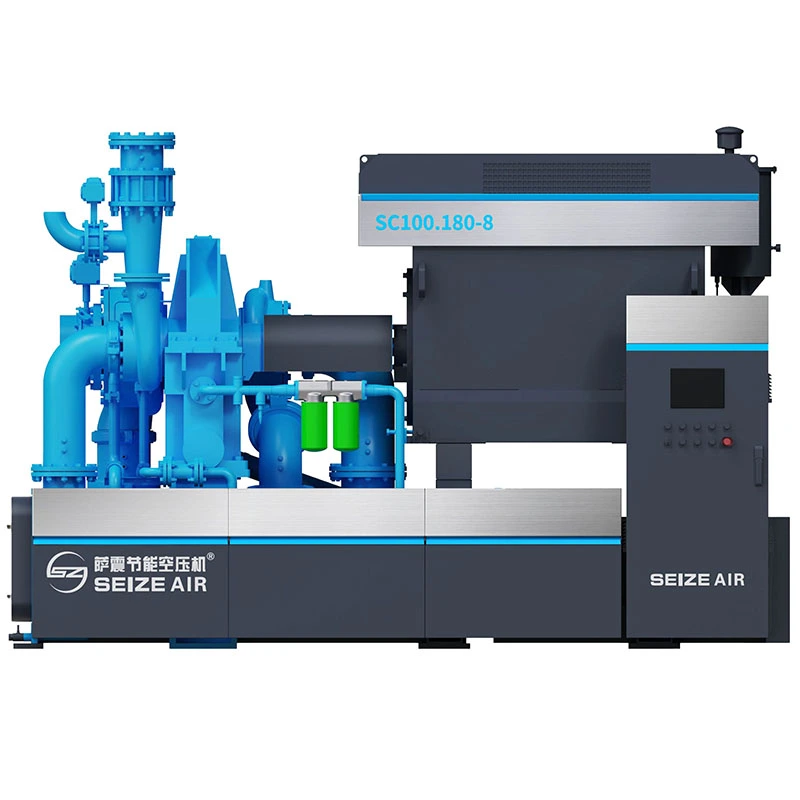

High Capacity Gear Turbo Air Compressor

High Capacity Gear Turbo Air Compressor (gear centrifugal compressor) is a large-flow centrifugal air compression equipment adopting gear speed-increasing structure. It uses high-speed impeller to convert kinetic energy into pressure energy, providing stable, continuous, large-flow compressed air for industrial production. It features high efficiency, high reliability, low noise, and 100% oil-free air output, widely used for process air, instrument air, gas boosting, material conveying and aeration in heavy industries.

Core Advantages (From Official Sample)

● Aerodynamic Custom Design: Optimized for best efficiency point and wide operation range

● API Standard Design: High-speed rotor meets API672; gearbox meets API613

● High Precision Dynamic Balance: Rotor balanced to G0.4 grade

● 100% Oil-Free: Labyrinth + gas film labyrinth / carbon ring dual seal; aviation aluminum alloy used

● High Efficiency Impeller: 17-4PH stainless steel / titanium alloy, 5-axis machining, 100% overspeed test

● AGMA13 Gear: Gear precision reaches AGMA13, service factor over 1.4

● Intelligent Control: Siemens PLC, 10.2-inch touch screen, anti-surge, APP remote monitoring

● UPS Backup Power: Protects safe shutdown, data integrity and anti-surge during power failure

● Waste Heat Recovery: Recover 70%–80% compression heat for hot water, heating, boiler water

Technical Specifications (Strictly From Sample)

Centrifugal Air Compressor (Gear Turbo Type)

Application Fields & Cases

Application Industries

Petrochemical, textile & chemical fiber, biological fermentation, gas separation, iron & steel metallurgy, glass manufacturing

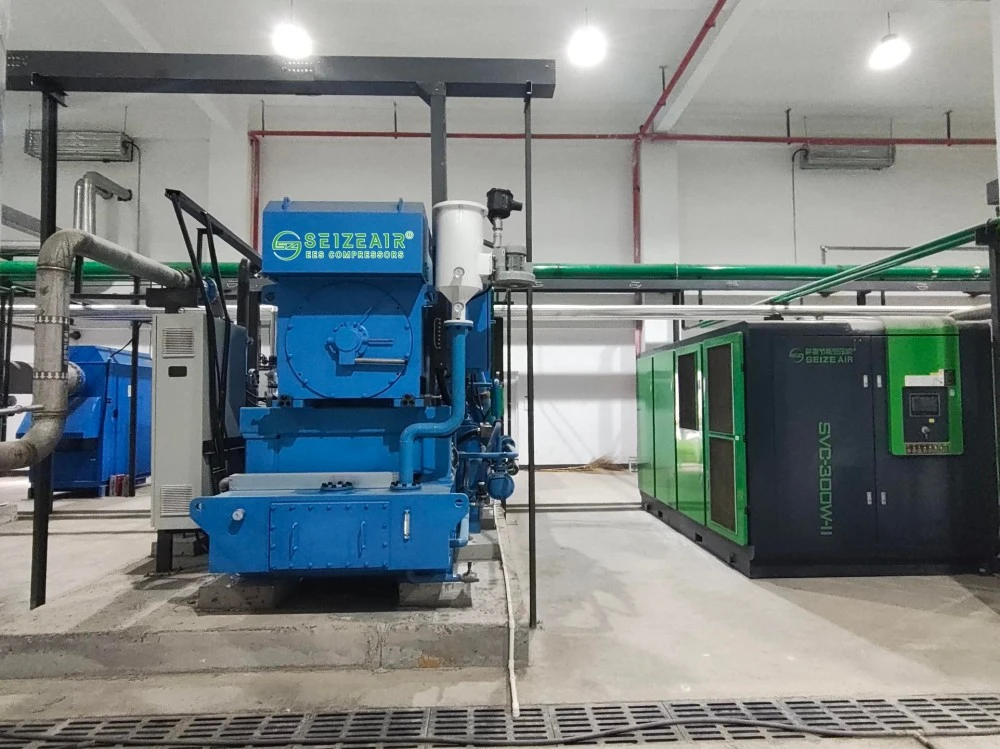

Project Cases

● Textile mill: 1×280m³/min 0.42MPa; 3×220m³/min 0.42MPa

● Glass factory: 1×100m³/min 0.9MPa

● New material factory: 2×120m³/min 0.8MPa (built-in waste heat recovery); 1×120m³/min 0.8MPa

● New material plant: 200m³/min single-stage variable frequency centrifugal blower

Company Qualification & Quality Control (Sample Content)

● China manufacturer with German technology, founded in 2009, Shanghai production base

● Energy-saving air compressor invention patent holder

● Production equipment: high-precision rotor grinder, horizontal machining center, Schenck dynamic balancing machine, CMM, 2500KVA high-voltage test cabinet, energy efficiency laboratory

● Certifications: patent certificates, compulsory certification

Why Choose Us (China Manufacturer & Factory)

● Factory Direct: Professional China factory & supplier with independent R&D and manufacturing

● German Technology: Originated from German design, localized optimized

● Energy Saving: Each 1KW saves annual electricity cost, reduces carbon emission

● Global Service: 30+ domestic service outlets; 100+ overseas outlets; export to 20+ countries

● Service Commitment: 15-minute response, 2-hour on-site arrival

● Independent Spare Parts Warehouse: Full accessories, fast replacement

Youtube：https://youtu.be/EWeO7GTSm-8?si=x0I2m18YfXYv_niJ

After-Sales Service

● Service tenet: Beyond customer expectations, timely, professional, pleasant

● Team: 8 senior engineers, 21 intermediate engineers

● Response: 24-hour hotline, 15-minute response, 2-hour on-site

● Spare parts: Independent large warehouse, complete accessories

● Service network: 200+ domestic cities; 100+ overseas outlets (Asia, Europe, America)

FAQ

Q1: Is this High Capacity Gear Turbo Air Compressor 100% oil-free?

A: Yes. Dual seal structure and through-atmosphere design ensure compression chamber 100% oil-free.

Q2: Does your High Capacity Gear Turbo Air Compressor support remote monitoring?

A: Yes. It supports mobile APP and cloud platform for real-time monitoring, parameter setting and history query.

Q3: Does the unit have UPS backup power?

A: Yes, standard configuration. It ensures safe shutdown, data integrity and anti-surge during power failure.

Q4: Can you provide waste heat recovery function?

A: Yes. Built-in / external waste heat recovery is available, recovering 70%–80% heat.

Q5: What control system does it use?

A: Siemens PLC, 10.2-inch touch screen, MODBUS / PROFIBUS communication.

Q6: What is the dynamic balance level?

A: High-speed rotor reaches G0.4 high standard.

Q7: Do you provide on-site installation and commissioning?

A: Yes. Professional engineer team provides on-site service.

Q8: What is your service response speed?

A: 15-minute response, 2-hour on-site arrival.
