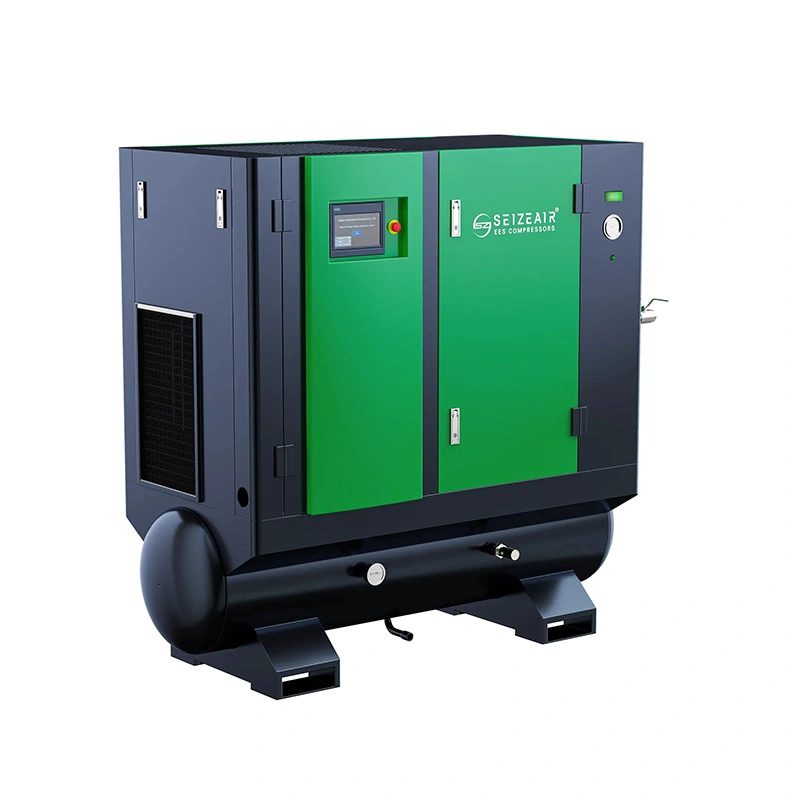

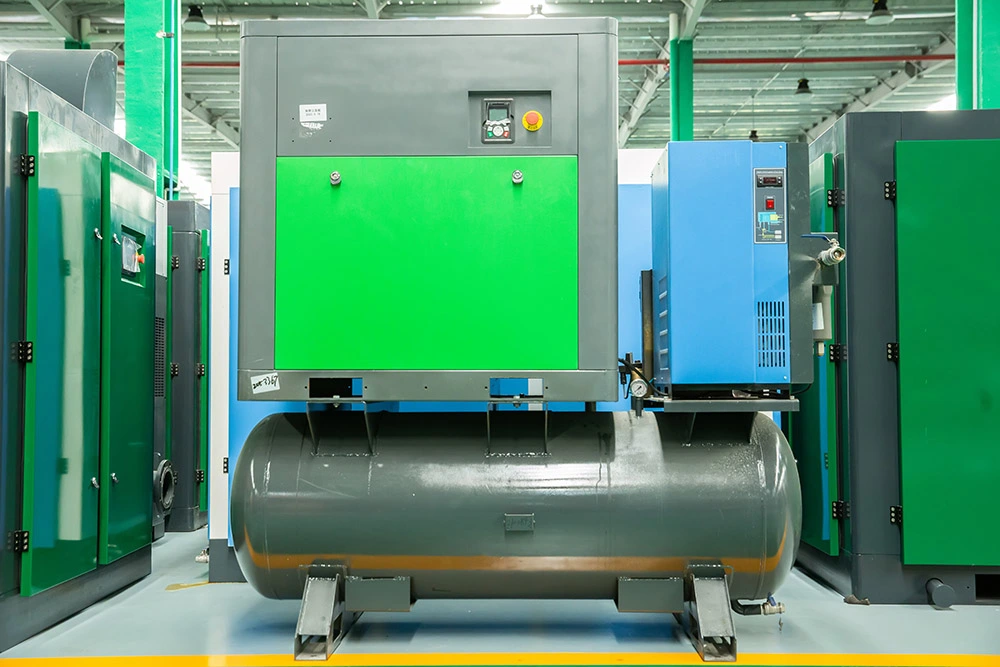

Laser Cutting All-In-One Air Compressor

The Integrated Solution

The Laser Cutting All-In-One Air Compressor is an all-encompassing pneumatic workstation that redefines shop-floor efficiency. By housing a high-pressure screw compressor, a precision-tuned refrigerated dryer, an oversized air receiver, and a quintuple filtration array on a single vibration-isolated base, we provide the ultimate “gas station” for fiber laser machines.

This system is specifically engineered to meet the high-flow requirements of nitrogen-assist cutting and compressed air cutting, ensuring the laser head operates in a pristine, moisture-free environment.

Technical Performance Matrix (Seize-Optimized Configuration)

Strategic Engineering Advantages for Laser Operators

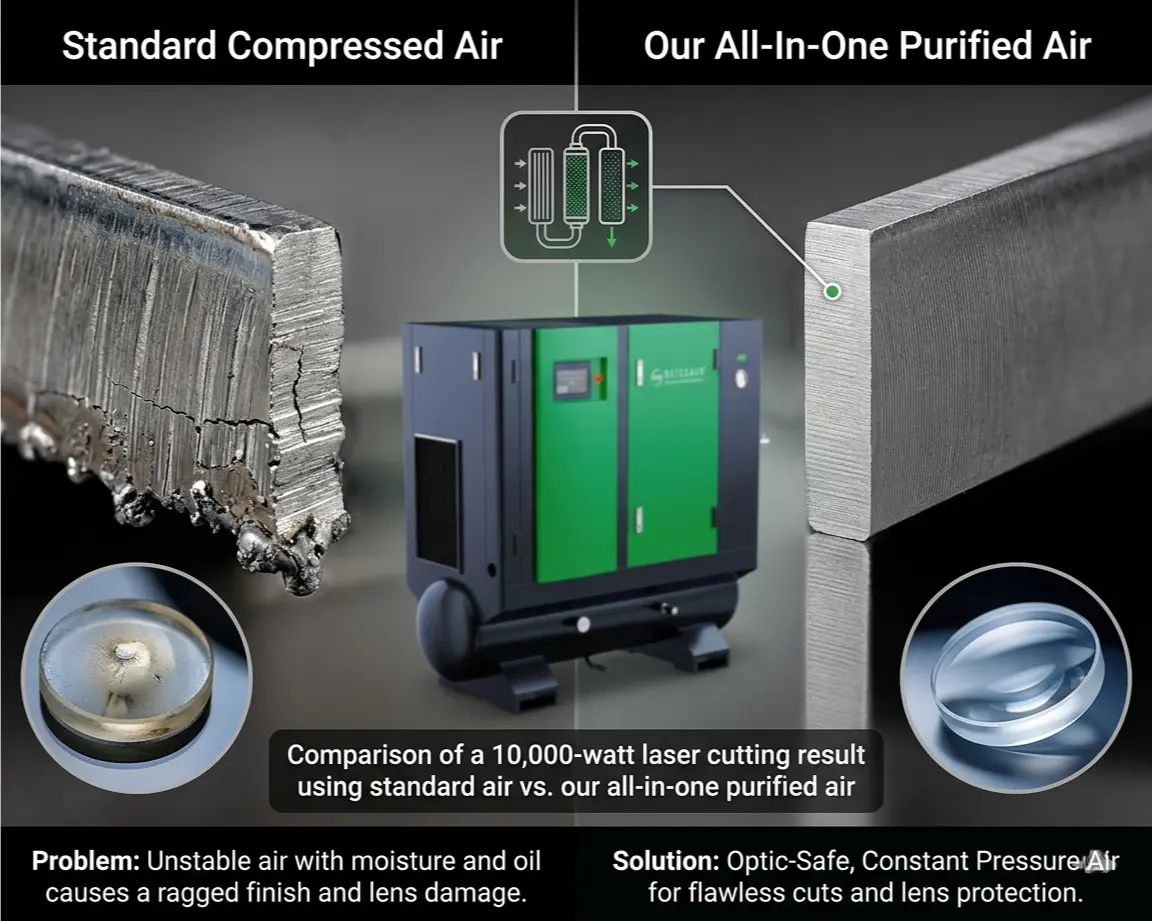

Optic-Safe Air Quality: As a leading China manufacturer, we integrate a multi-stage separation process. Unlike generic units, our system utilizes active carbon adsorption to ensure that air is not just dry, but also free of oil aerosols that could cause “lens burn” on expensive fiber laser heads.

Constant Pressure Delivery: Laser cutting requires high-velocity gas to blow away molten slag. Our Laser Cutting All-In-One Air Compressor features an oversized internal buffer logic that prevents pressure drops during piercing and cutting cycles, ensuring a uniform edge finish.

Thermal Balance System: The integrated refrigerated dryer is matched to the compressor’s maximum output. Even in high-temperature summer conditions, the interconnected cooling system maintains a stable dew point, preventing condensation in the cutting nozzle.

Zero-Loss Drainage: Equipped with electronic timed or float-type automatic drains, the system ensures that accumulated moisture is purged without wasting valuable compressed air.

Cost-Efficiency & Space ROI

Installation Savings: Traditional setups require complex piping between four different components. This Laser Cutting All-In-One Air Compressor from our China factory arrives fully piped and wired; you only need to connect the power and the main outlet.

Footprint Optimization: Saves up to 60% of floor space compared to modular components, allowing you to place the compressor directly next to the laser machine for faster response and lower pressure loss.

Energy Efficiency: By utilizing 1:1 direct coupling and an optimized air-end profile, the specific power consumption is significantly lower than belt-driven “economy” models.

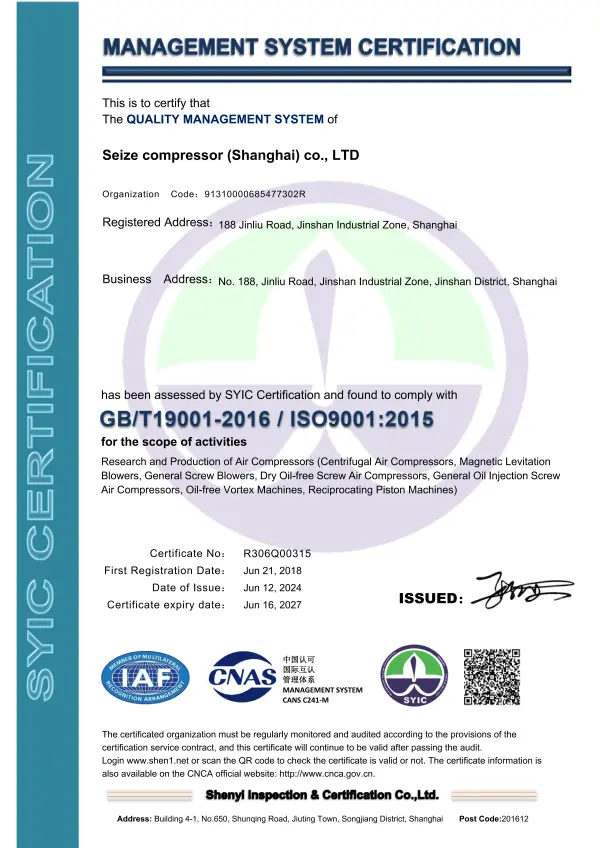

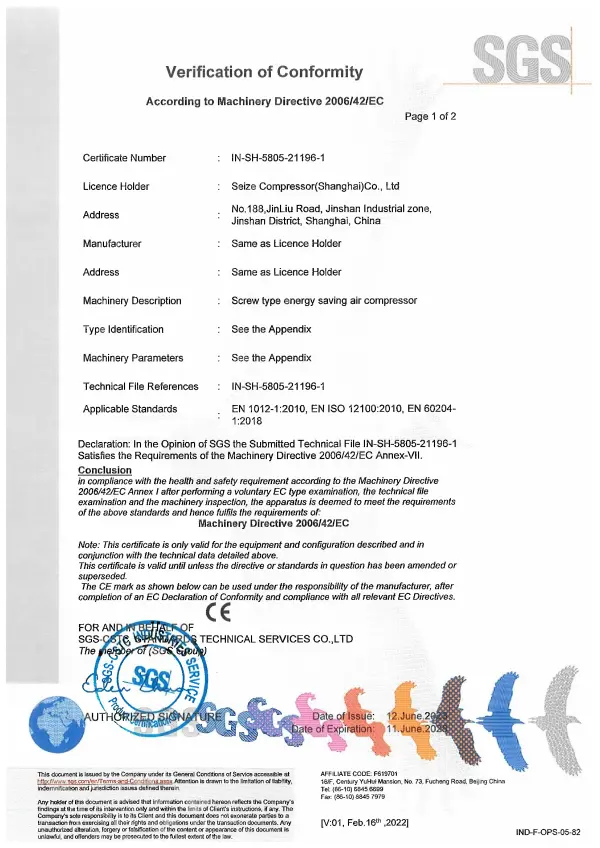

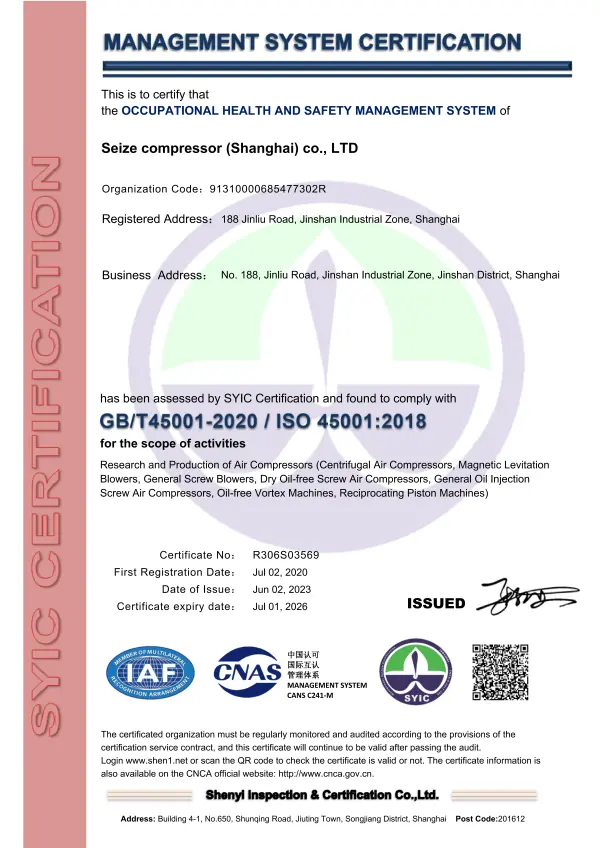

 Quality Assurance

As a dedicated supplier, we implement a multi-point inspection protocol for every integrated unit:

1. Pressure Integrity Test: The storage tank and all internal piping are hydro-tested to 1.5× working pressure.

2. Air Quality Verification: Discharge air is tested for particulate count and oil content to ensure it meets ISO 8573-1:2010 standards.

3. Vibration Balancing: The motor and air-end assembly are mounted on heavy-duty dampers to protect the dryer’s refrigeration circuit from mechanical fatigue.

Advanced Maintenance & Diagnostics

- Unified PLC Control: A single HMI panel monitors the compressor’s status and the dryer’s dew point, with automatic warnings for filter element replacement.

- Front-Access Service: All filters and separators are accessible from the front or side panels, reducing maintenance downtime to less than 30 minutes.

- Global Warranty Support: Our China manufacturer network provides rapid replacement parts for precision filtration elements, which are critical for laser protection.

 Professional FAQ

Q1: Why is 1.6 MPa pressure critical for air-assist cutting?

A: High-pressure air acts as both a mechanical force and a cooling agent. Our Laser Cutting All-In-One Air Compressor provides the 1.6 MPa needed to cut through thicker carbon steel and aluminum with air, which is significantly cheaper than using bottled oxygen or nitrogen.

Q2: Does your factory use stainless steel or carbon steel for the integrated tank?

A: Standard units come with a high-grade epoxy-coated carbon steel tank to prevent internal corrosion. However, we also offer optional internal stainless steel tanks for medical or high-precision electronics laser applications to ensure zero rust particulate.

Q3: How many filters are included in the integrated “4-in-1” system?

A: We typically provide four stages of filtration: a 3-micron pre-filter, a 1-micron oil-removal filter, a 0.01-micron fine filter, and an active carbon filter. This ensures the air quality exceeds the requirements of major laser brands such as IPG, Raycus, and Precitec.

Q4: Can the dryer operate independently of the compressor?

A: The PLC is programmed for synchronized operation. When the compressor starts, the dryer begins its cooling cycle to ensure that the very first liter of air entering the tank is already processed and dried, protecting your laser head from the first second of operation.
