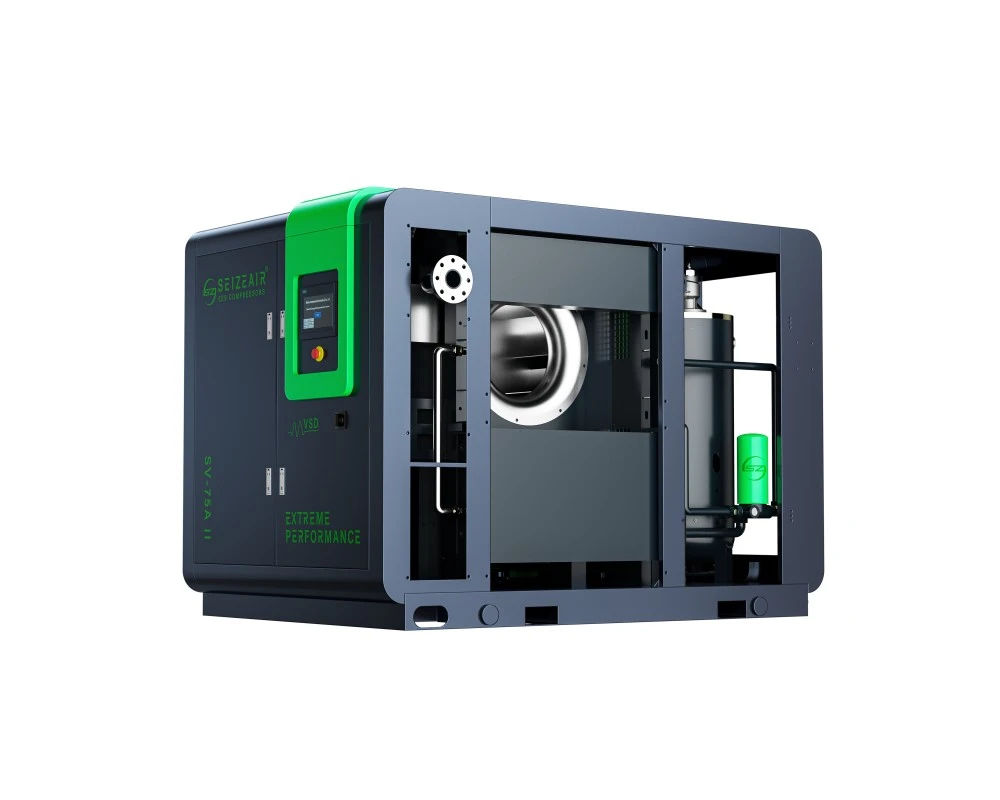

Mining Use Fixed-Speed Two-Stage Screw Air Compressor

The Mining Use Fixed-Speed Two-Stage Screw Air Compressor is not a standard industrial unit; it is a reinforced pneumatic powerhouse. In mining operations, air compressors must combat abrasive dust, ambient humidity, and fluctuating power quality. Our "Mining-Spec" series integrates a heavy-duty dual-stage air end within a reinforced, vibration-resistant chassis, providing the high-volume flow required for rock drills, pneumatic conveyors, and ventilation systems in the world's most demanding terrains.

Technical Performance Matrix (Mining-Optimized Specs)

"Mining-Grade" Core Advantages

Dual-Stage Dust Defense: Unlike a standard supplier, we equip this model with an oversized, two-stage centrifugal pre-filter. This removes 99% of heavy particles before they reach the internal air filter, drastically extending the service life of the air end in coal or iron ore mines.

Encapsulated Drive Train: The 1:1 direct drive is fully enclosed in a cast-iron housing, preventing abrasive mine dust from entering the coupling or gear-set, ensuring zero transmission loss in "dirty" environments.

Corrosion-Resistant Structural Steel: The entire cabinet undergoes a specialized powder-coating process with high salt-spray resistance, protecting the unit from the acidic or humid air often found in underground ventilation shafts.

Enhanced Thermal Management: We use wide-fin spacing on our coolers to prevent dust "bridging," which is the primary cause of overheating in mining compressors. This allows for easier cleaning using compressed air or water jets.

Safety & Compliance for Mining Infrastructure

As a leading China factory, we prioritize operational safety:

Automatic Fire Suppression Interface: Pre-wired for integration with plant-wide safety systems.

Emergency Stop Protection: Robust, high-visibility E-stops located on both the controller and the external frame.

Voltage Surge Protection: Oversized contactors and relays designed to handle the "dirty power" common in remote mining grids.

Comparative Analysis: Industrial vs. Mining Spec

Global Reliability & Support (The Manufacturer’s Promise)

Choosing us as your China manufacturer means securing your production uptime. We provide:

Remote Monitoring (IoT): Optional satellite/4G modules for tracking compressor health in remote mining sites.

Wear-Part Kits: Standardized "Mining Survival Kits" included with every export, containing 2,000 hours of filtration and seals.

On-Site Commissioning: Technical support teams available for global deployment to assist in complex underground installations.

FAQ: Mining & Harsh Environment Operations

Q1: How does this Two-Stage unit perform at high altitudes ($>2000\text{m}$)?

A: Air density decreases with altitude. Our Mining Use Fixed-Speed Two-Stage Screw Air Compressor is engineered with oversized air ends to compensate for this. By using two-stage compression, the compression ratio per stage remains low, which prevents the excessive discharge temperatures often seen in single-stage units at high altitudes.

Q2: Mining sites have extreme dust. How often do we need to change the filters?

A: While standard intervals are $3,000$ hours, for mining use, we recommend checking the "Differential Pressure Indicator" on the PLC. Thanks to our factory's specialized pre-filter, our clients typically see a $2\text{x}$ longer filter life compared to competitors without centrifugal pre-filtration.

Q3: Can this unit be mounted on a mobile platform or skid for relocation?

A: Yes. As a professional China manufacturer, we can customize the base frame with fork-lift slots and heavy-duty lifting eyes. The internal piping is reinforced with high-pressure hydraulic hoses and steel clips to withstand the vibrations of being moved across a mine site.

Q4: Is the Two-Stage design more prone to failure in harsh conditions?

A: On the contrary. Because the Mining Use Fixed-Speed Two-Stage Screw Air Compressor splits the work between two rotors, the mechanical stress on each bearing is reduced by approximately $20\%$. This translates to a longer Mean Time Between Failures (MTBF) compared to single-stage units working at the same pressure.
