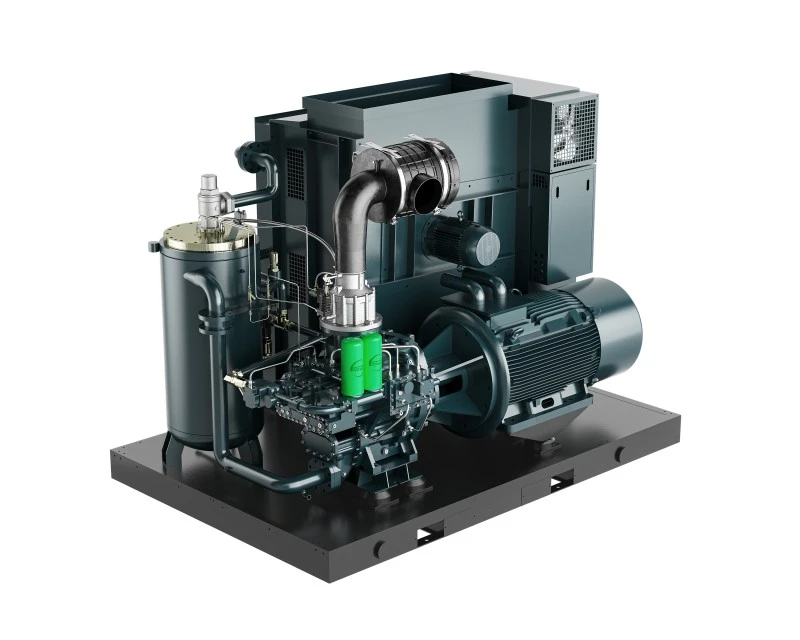

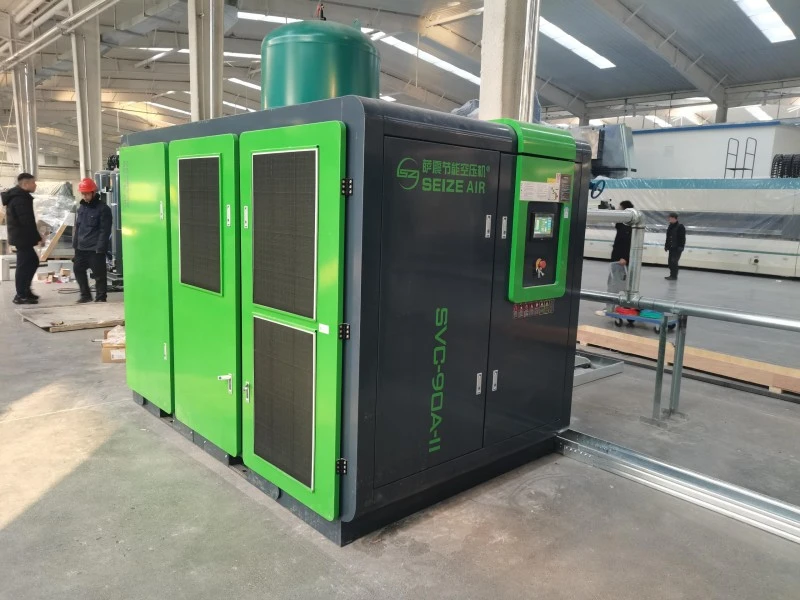

Large Capacity Fixed-Speed Two-Stage Screw Air Compressor

Defining Large-Scale Compressed Air Efficiency

The Large Capacity Fixed-Speed Two-Stage Screw Air Compressor is specifically designed for manufacturing plants where the demand for air is both massive and constant. Unlike standard units, this "Large Capacity" series utilizes extended rotor profiles and a multi-port injection system. By distributing the mechanical work across two stages, we achieve a significant reduction in specific power consumption, making it the most cost-effective choice for base-load air supply in heavy industries like steel, chemical, and glass manufacturing.

Core Technical Specifications (High-Volume Configuration)

Strategic Engineering & Reliability Highlights

Massive Air End Castings: As a professional China manufacturer, we utilize high-Mehanite cast iron for the air end housings. This provides superior thermal stability and vibration dampening, ensuring the rotor clearances remain precise even at maximum thermal expansion.

Low-Velocity Internal Piping: To handle "Large Capacity" flow rates without energy-wasting pressure drops, we have enlarged all internal air and oil galleries, utilizing stainless steel victaulic couplings for leak-free, high-vibration resistance.

Smart Fluid Management: The system features an oversized oil reservoir to ensure sufficient cooling and lubrication residence time, which is critical for maintaining the chemical integrity of the lubricant in high-output 24/7 operations.

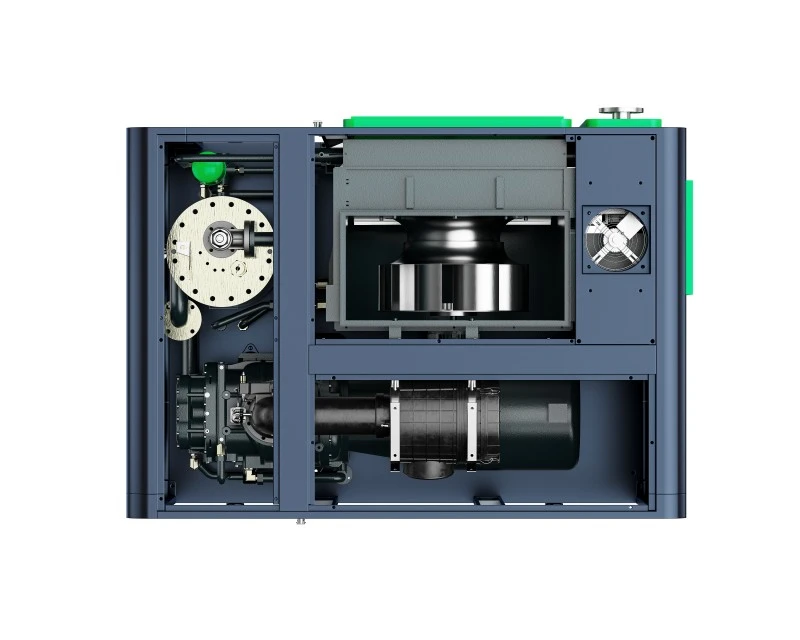

Independent Cooling Air-Path: Designed with a "Cold-Hot Partition" logic, ensuring that the motor and electrical cabinet are always fed with ambient air, independent of the main cooling fan’s exhaust.

Heavy Industrial Application Scenarios

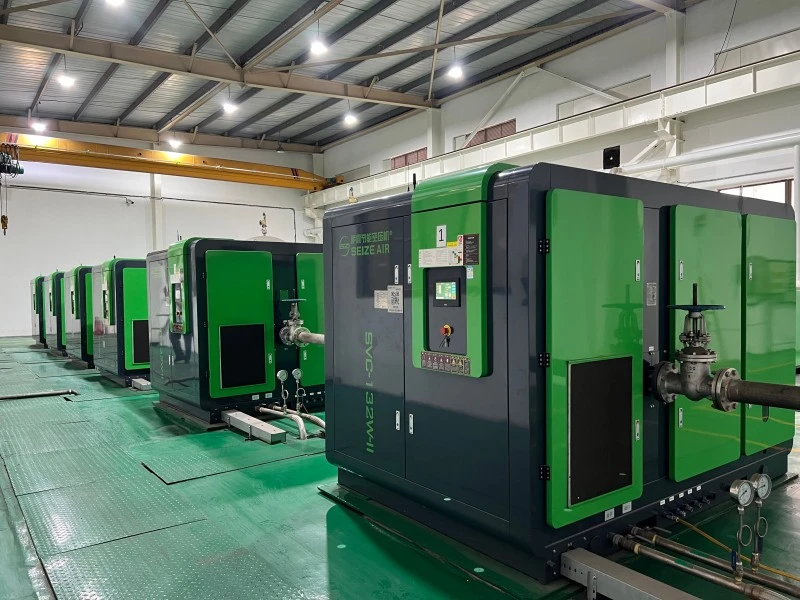

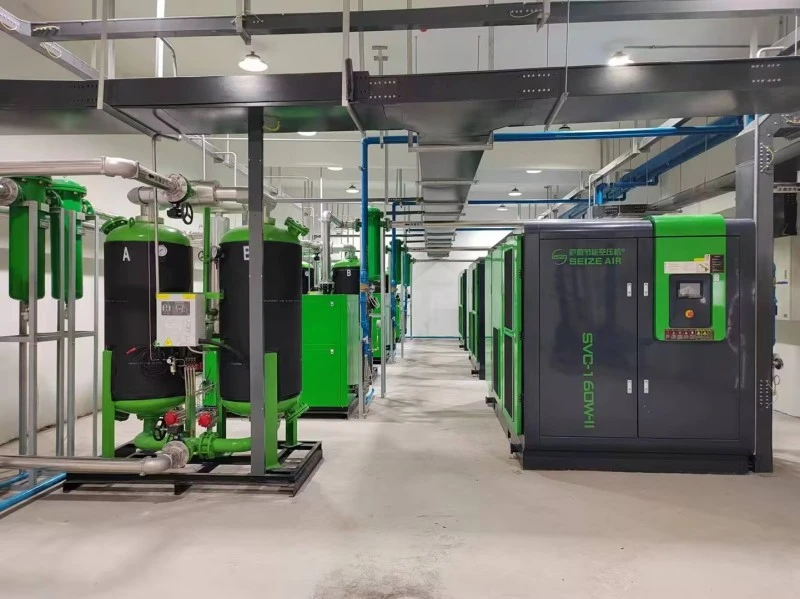

Our Large Capacity Fixed-Speed Two-Stage Screw Air Compressor is the primary choice for "Air Station" deployments:

Automotive Plants: Providing consistent volume for massive paint shops and robotic assembly lines.

Pulp & Paper: Driving high-speed pneumatic drying and conveying systems.

Mining & Smelting: Reliable operation in dusty, high-load environments where air failure results in massive production losses.

Comparative Advantage

When analyzing a Large Capacity Fixed-Speed Two-Stage Screw Air Compressor from our China factory, the value lies in the long-term TCO:

Lower RPM: Our large-volume rotors achieve the same FAD at 30% lower speeds than competitors, significantly reducing bearing wear.

Energy Bonus: The two-stage architecture lowers the compression ratio per stage, saving enough electricity annually to pay for the machine's maintenance several times over.

Stability: While VSD units are great for fluctuating loads, for a large factory's "Base Load," this fixed-speed unit offers higher mechanical efficiency and simplified electronics.

Quality Assurance & Factory Traceability

Every unit is a masterpiece of industrial engineering. As a leading supplier, we provide:

Full-Load Dynamic Performance Report: Including power factor, FAD verification, and noise mapping.

Material Certification: Traceability for all pressure-vessel components and high-tensile bolts.

ISO & CE Compliance: Guaranteed adherence to international safety and efficiency standards.

FAQ: High-Capacity Operations

Q1: How does your factory ensure the structural integrity of such a Large Capacity unit during shipping?

A: We utilize a "Structural Skid" design. The Large Capacity Fixed-Speed Two-Stage Screw Air Compressor is built on a heavy-duty H-beam steel base. For international shipping, we use custom-engineered steel-frame crates and vacuum-sealed moisture protection to ensure the unit arrives in factory-perfect condition.

Q2: Why is "Fixed-Speed" often preferred for large-scale two-stage units?

A: At high power levels (> 132kW), the primary goal is often constant base-load efficiency. A Large Capacity Fixed-Speed Two-Stage Screw Air Compressor avoids the harmonic distortion and inverter losses of VSD systems. When running at 90-100% load, the direct-drive fixed-speed setup provides the highest possible thermodynamic efficiency.

Q3: Can your engineering team provide customized P&ID for our air station integration?

A: Yes. As a comprehensive China manufacturer, we don't just sell machines; we provide solutions. We can provide full CAD/BIM models and P&ID diagrams to help your facility engineers integrate the compressor into your existing SCADA or plant management systems.

Q4: What is the benefit of the inter-stage cooling in this large-flow model?

A: In a Large Capacity Fixed-Speed Two-Stage Screw Air Compressor, compressing air to 8 bar in one jump generates immense heat. By cooling the air between the first and second stages, we increase the air density for the second stage. This "Isothermal" approach means we move more air molecules with less mechanical force, directly lowering your monthly utility bill.
