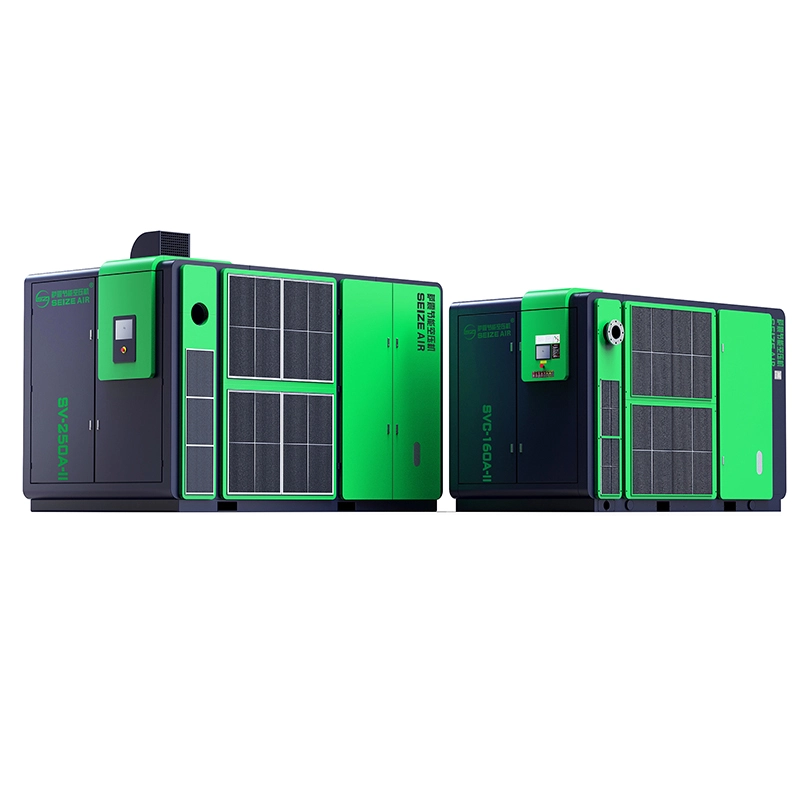

Heavy Duty Fixed-Speed Two-Stage Screw Air Compressor

Why Two-Stage?

The Heavy Duty Fixed-Speed Two-Stage Screw Air Compressor utilizes two sets of rotors arranged in a series. By dividing the total compression ratio across two distinct stages, the system significantly reduces the internal "backflow" leakage and lowers the heat load on each rotor set. Between the first and second stages, oil-injection cooling drops the air temperature, approaching an "isothermal compression" process. This results in more air output (FAD) for every kilowatt of power consumed compared to traditional single-stage units.

Premium Component Interconnectivity

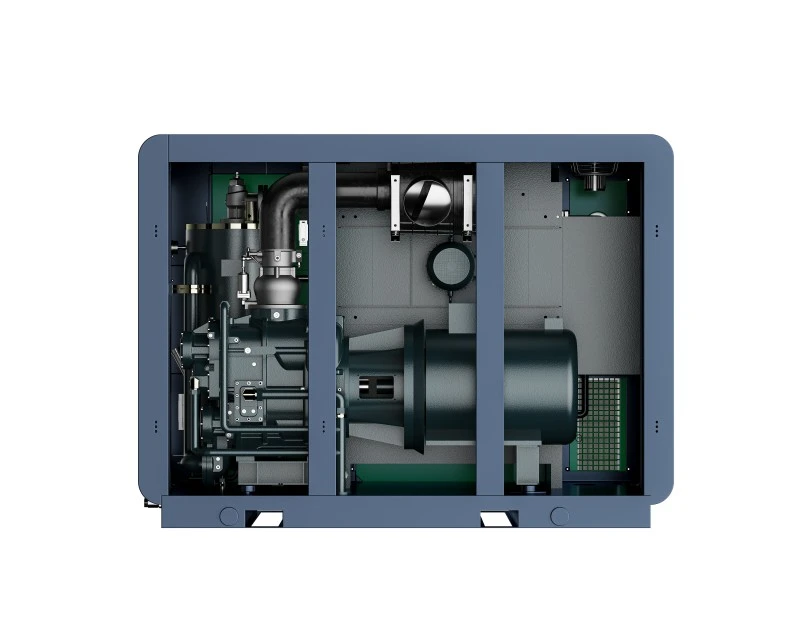

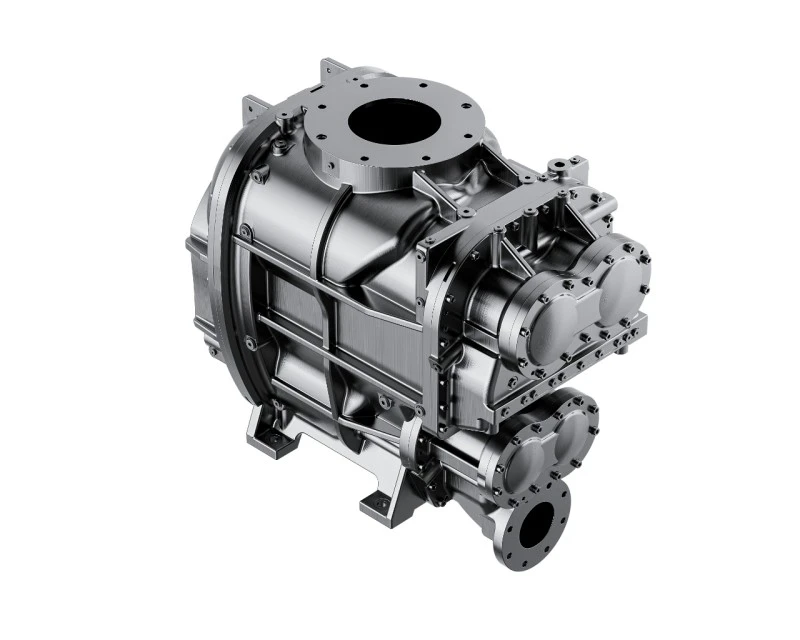

Dual-Stage Air End Assembly: Features a tandem rotor design where the second stage begins compression at an optimized mid-pressure point, drastically reducing the bearing load and extending the air end's mechanical lifespan.

IE4 Ultra-Premium Motor: To match the high efficiency of the two-stage air end, we integrate IE4 permanent magnet or high-efficiency induction motors as a standard, ensuring the entire drive train meets global energy-saving benchmarks.

Heavy-Duty Oversized Lubrication System: A high-capacity oil pump and enhanced thermal valve ensure that the inter-stage cooling remains consistent even during 100% continuous load in high-humidity climates.

Reinforced Structural Skids: The chassis is constructed from vibration-dampening heavy-gauge steel, preventing harmonic resonance from affecting the precision alignment of the dual-screw assembly.

Technical Performance Matrix

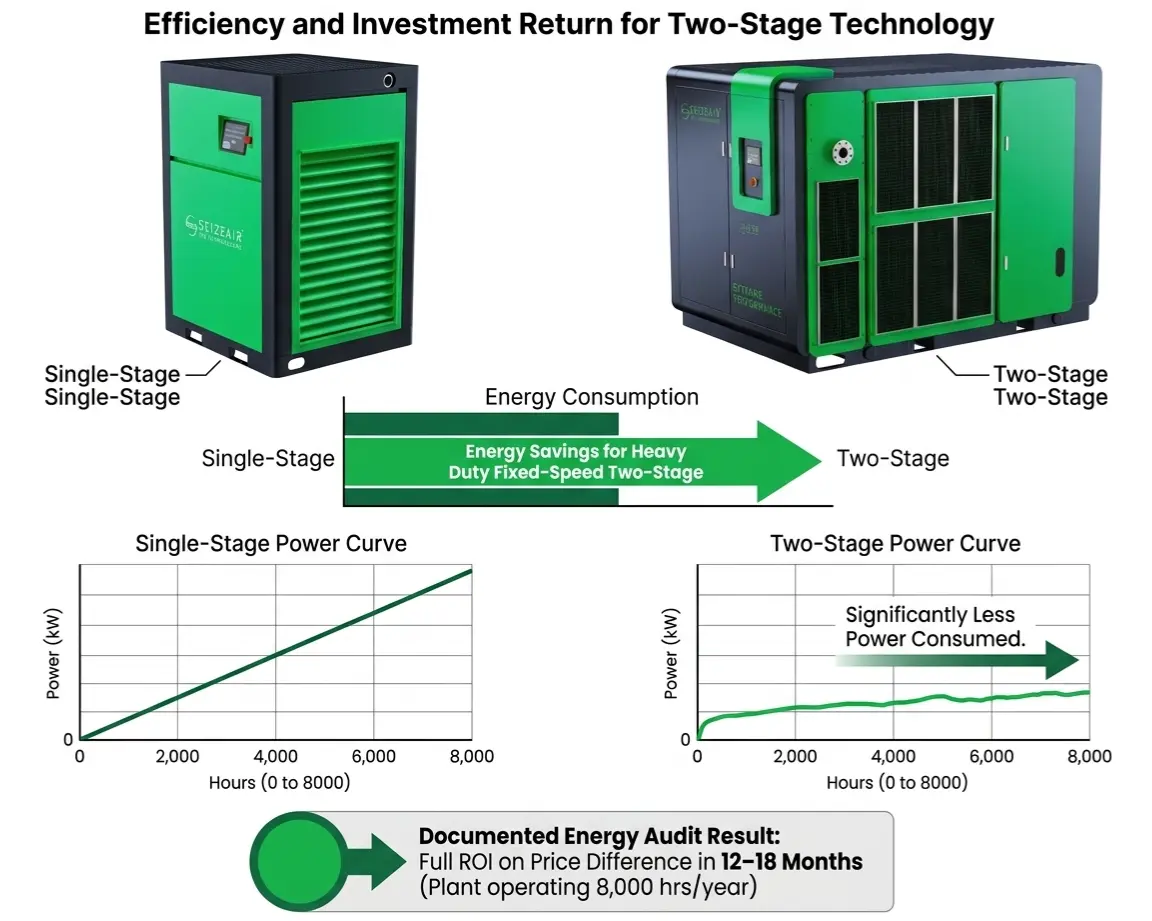

Energy Saving & ROI Analysis

As an experienced China supplier, we provide documented energy audits for this series. Because the Heavy Duty Fixed-Speed Two-Stage Screw Air Compressor operates with a lower internal pressure difference per stage, it consumes significantly less power to reach high discharge pressures. For a plant operating 8,000 hours per year, the energy savings often allow for a full "Return on Investment" (ROI) on the price difference within 12–18 months.

Factory-Grade Quality & Global Compliance

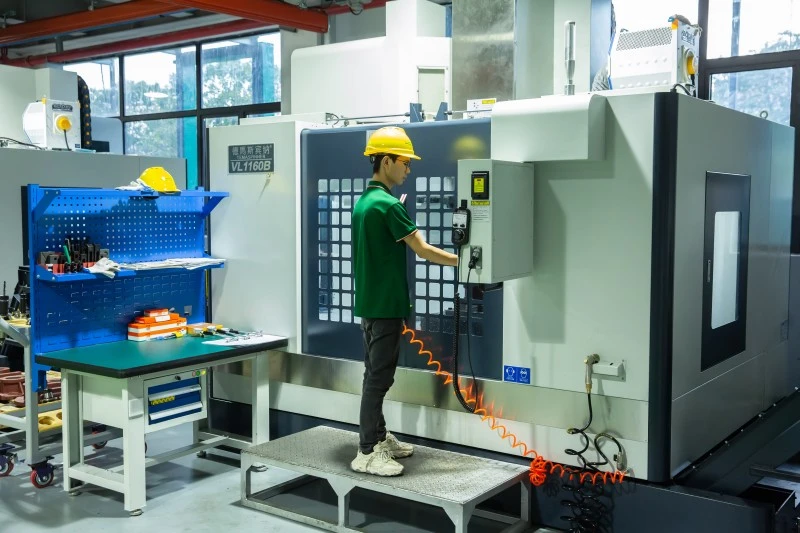

Our China factory implements a "Zero-Defect" protocol for all heavy-duty series:

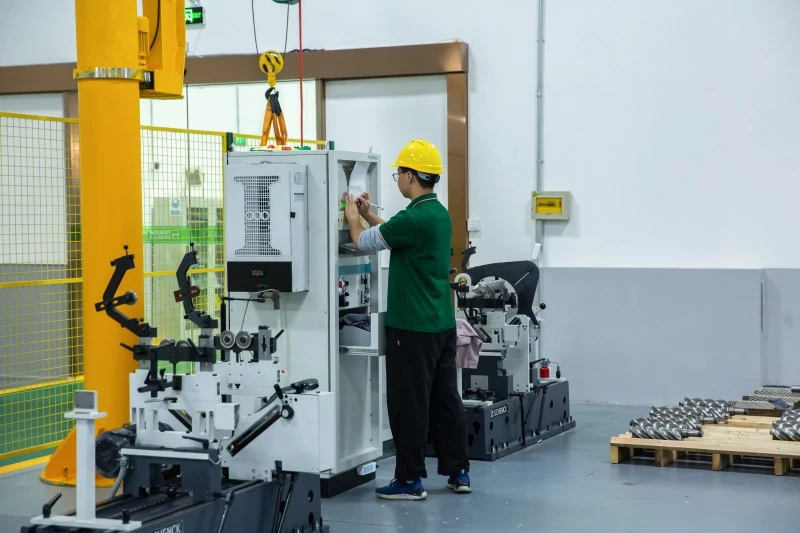

Dynamic Balancing: Both rotor sets are dynamically balanced to G2.5 standards to eliminate micro-vibrations.

Acoustic Engineering: The cabinet is lined with high-density, fire-retardant soundproofing material, keeping the noise levels of these large units remarkably low.

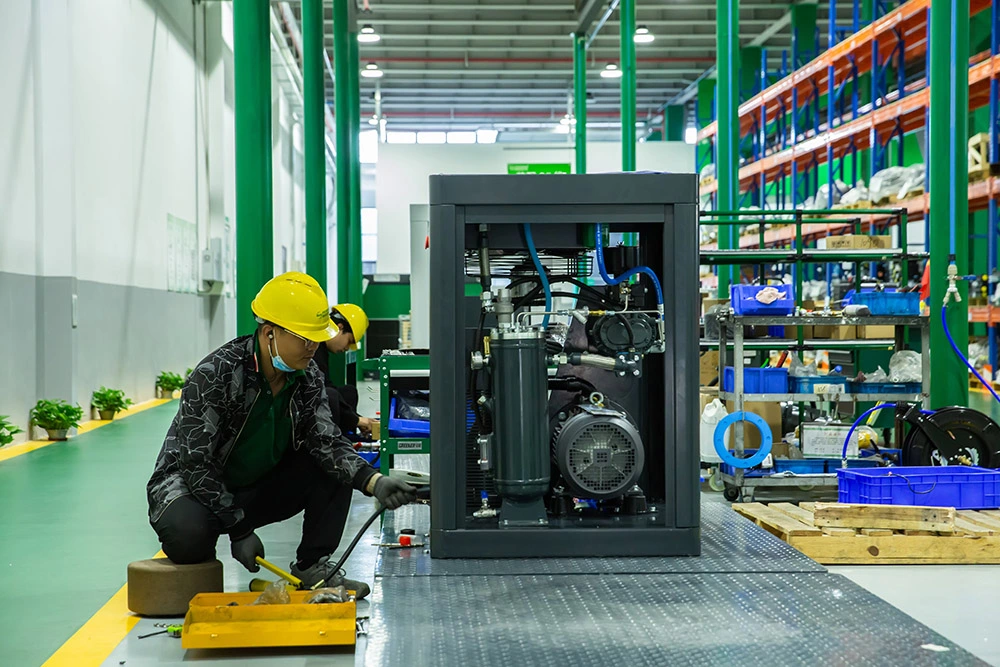

Stress Testing: Every unit undergoes a 48-hour endurance run, including 100 manual stop-start cycles to verify the durability of the contactors and the air end's thermal expansion stability.

Specialized Maintenance & After-Sales

We treat the Heavy Duty Fixed-Speed Two-Stage Screw Air Compressor as a long-term asset. Our service package includes:

Extended Air End Warranty: Up to 5 years of coverage on the core compression stages.

Global Parts Support: We use standard DIN-sized bearings and gaskets, ensuring that any supplier worldwide can provide basic wear-parts, though we recommend our genuine high-synthetic oil for optimal cooling.

Digital Maintenance Log: The intelligent PLC records the last 500 operational events, allowing for rapid remote diagnostics if a fault occurs.

Engineering FAQ

Q1: Why choose a Fixed-Speed Two-Stage model over a Variable Speed Drive (VSD) Single-Stage?

A: For facilities with a constant, 24/7 "base load" (where air demand stays above 80%), a Heavy Duty Fixed-Speed Two-Stage Screw Air Compressor is often more efficient. VSD units have inverter losses (approx. 2–3%); in a constant-load scenario, the mechanical efficiency gain of two-stage compression outperforms the electronic regulation of a single-stage VSD.

Q2: How does your factory manage the increased complexity of a two-stage air end?

A: As a leading China manufacturer, we utilize integrated housing. Instead of two separate air ends connected by hoses, our stages are housed in a single precision-machined casting. This eliminates potential leak points between stages and ensures perfect gear alignment for life.

Q3: Is this "Heavy Duty" version suitable for mining or cement industries?

A: Absolutely. We have specifically upgraded the intake filtration to a two-stage heavy-particle pre-filter system. This prevents abrasive dust from entering the rotors, which is critical for maintaining the tight tolerances required by a two-stage system in harsh environments.

Q4: What is the benefit of the Gear-Drive vs. Belt-Drive in this heavy-duty class?

A: In a Heavy Duty Fixed-Speed Two-Stage Screw Air Compressor, the torque requirements are much higher. Belts are prone to slipping and heat-stretching under these loads. Our 1:1 gear-drive ensures positive power transmission, zero slip, and zero maintenance for the drive mechanism for up to 30,000 hours.
