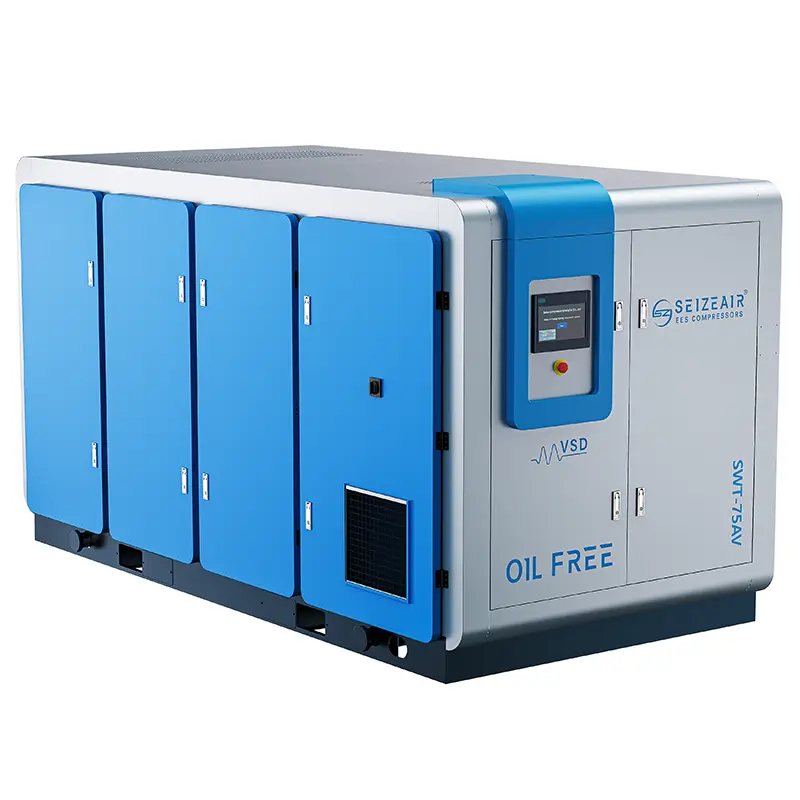

Standard Fixed-Speed Dry Type Oil-Free Screw Air Compressor

Standard Fixed-Speed Dry Type Oil-Free Screw Air Compressor: Your Solution for Uncompromising Air Purity

A Dry Type Oil-Free Screw Air Compressor is an advanced industrial machine designed to produce compressed air that is entirely free of oil contamination. Unlike oil-injected compressors, these units utilize special components and sealing mechanisms that ensure no lubricating oil comes into contact with the compressed air stream. This is crucial for industries where even the smallest trace of oil can lead to product spoilage, operational failure, or health hazards.

The primary function of our Standard Fixed-Speed Dry Type Oil-Free Screw Air Compressor is to deliver a consistent supply of ultra-pure, dry compressed air, which is essential for maintaining product integrity, ensuring process reliability, and complying with stringent industry standards. It caters to a wide range of discerning clients in sectors that demand absolute air cleanliness.

Key Features & Benefits

At Seize Air, our dry type oil-free screw air compressors are engineered for unparalleled performance and reliability, addressing critical industry pain points related to air purity and operational stability.

· 100% Oil-Free Air Guaranteed:

The innovative air-end design incorporates a double labyrinth sealing structure. An additional air outlet strategically placed between the two seals forms a mature and stable sealing mechanism. This advanced design ensures that the compressed air never contacts lubricating oil during the compression process, guaranteeing 100% oil-free discharge. This is paramount for industries like electronics and pharmaceuticals, where contamination is simply not an option.

· Robust & Stable Operation in Harsh Environments:

Our air-end is designed to operate efficiently even at a maximum intake temperature of 52℃. The robust shell features a cooling jacket structure, significantly reducing the air-end's working temperature, allowing for stable operation under very harsh environmental conditions. The transmission system utilizes AGMA13 speed increase gear and synchronous gear with high-precision SKF bearings, improving transmission efficiency, reducing noise, and ensuring stable and reliable air-end operation.

· Enhanced Rotor Durability & Efficiency:

Through a special process, the rotor surface is coated with a molybdenum disulfide material. This coating provides exceptional high-temperature resistance, corrosion resistance, and impact resistance, effectively protecting the rotor, extending its service life, and improving the air-end's compression efficiency. This translates to lower maintenance costs and consistent performance for our customers.

· Optimized Cooling System for Maximum Efficiency:

-The entire machine adopts a sophisticated partition design, effectively separating high-temperature and low-temperature zones. Both compressed air intake and cooling air intake are independent external ones, ensuring that the lowest external temperature air is utilized.

-We employ an enlarged design for the cooler and air duct system, controlling pressure loss to a minimal level. Compared to ordinary structures, this design significantly reduces internal pressure loss and enhances the overall efficiency of the machine.

-The cooler features a classic heat exchanger structure outside the water duct, ensuring ample heat exchange area while maintaining cooling water flow within a reasonable range. This effectively improves cooling performance and simplifies future maintenance.

· High-Efficiency IPM Permanent Magnet Motor (Optional for Variable Speed Models, but "high efficiency PM main motor" was listed as a feature):

-While the core keyword is Fixed-Speed, the user listed "high efficiency PM main motor" and "vector inverter control" as features, suggesting a hybrid description or that the fixed-speed unit benefits from PM motor efficiency. If a fixed-speed unit uses a PM motor, it still benefits from higher efficiency than a standard asynchronous motor at its operating point.

-The integration of a high-efficiency Permanent Magnet (PM) main motor ensures optimal energy utilization.

· Superior Moisture Separation:

A large-capacity cyclone water separator effectively removes condensed water from the compressed air. This crucial feature protects the two-stage rotor from water damage, thereby extending the air-end's service life and ensuring the delivery of consistently dry air.

· Intelligent Display & Control:

A large LCD display provides real-time monitoring of air compressor operating parameters. Equipped with excellent anti-interference ability, the modular PLC controller manages air compressor operation, alarms, and chain protection. A standard Modbus interface allows for seamless DCS remote monitoring, enhancing operational control and safety.

· IoT System for Remote Monitoring:

The integrated Internet of Things (IoT) system allows simultaneous display of the air compressor's operating status, data, and fault warnings on site, mobile phones, and computers. This enables users to view the compressor status anytime, anywhere, providing better support for stable production and predictive maintenance.

3. Technical Specifications

Our Seize Air Dry Type Oil-Free Screw Air Compressor is an indispensable asset for industries where air purity directly impacts product quality and operational safety.

· Electronic Semiconductor Industry: Essential for powering precision tools in cleanrooms and wafer fabrication, where even microscopic oil particles can destroy sensitive components.

· Pharmaceutical Industry: Provides sterile compressed air for pharmaceutical manufacturing, packaging, and fermentation processes, preventing contamination of drugs and ensuring patient safety.

· Food and Beverage Industry: Used for packaging, conveying, and fermentation, ensuring the compressed air in contact with food products is free from oil, meeting strict hygiene standards.

· Chemical Industry: Critical for various chemical processes, including conveying sensitive materials and instrumentation, where oil contamination could react with chemicals or compromise product integrity.

· Automotive Industry: Supports paint shops and control systems, preventing imperfections caused by oil aerosols and ensuring high-quality finishes.

· New Energy Industry: Utilized in the production of batteries, fuel cells, and other new energy components, where ultra-clean environments are required for optimal performance and longevity.

At Seize Air, quality is the cornerstone of our manufacturing process. We adhere to the highest international standards to deliver reliable and durable Fixed-Speed Dry Type Oil-Free Screw Air Compressor units.

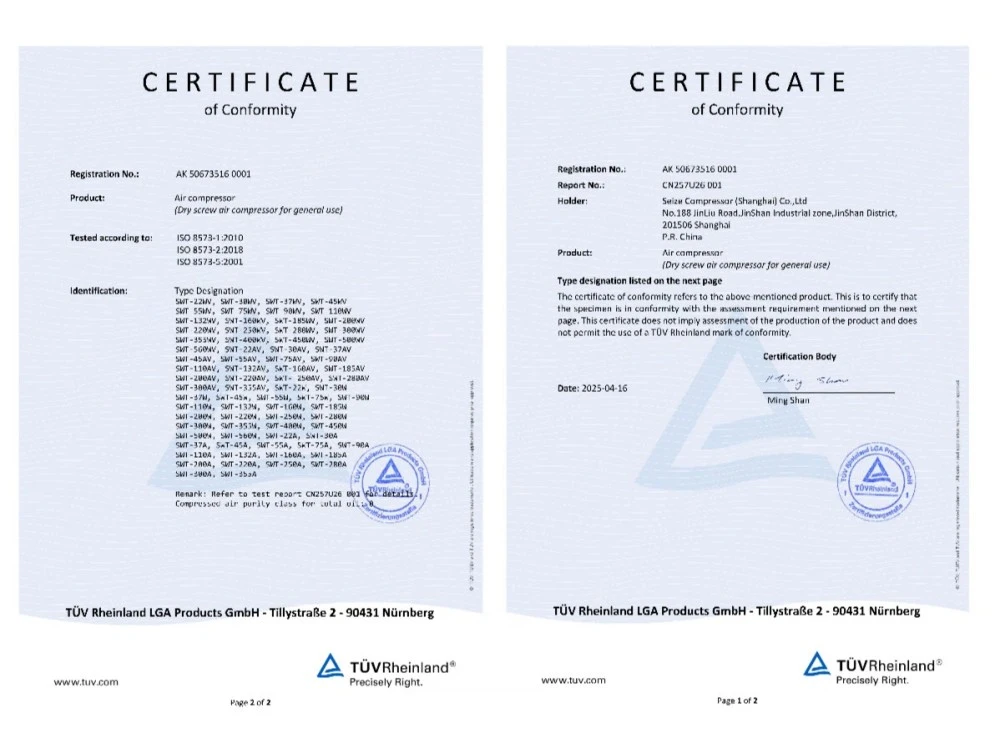

· Certified Excellence: Our products are rigorously tested and certified to international standards, including ISO for quality management and CE for European safety compliance. These certifications underscore our commitment to global quality benchmarks.

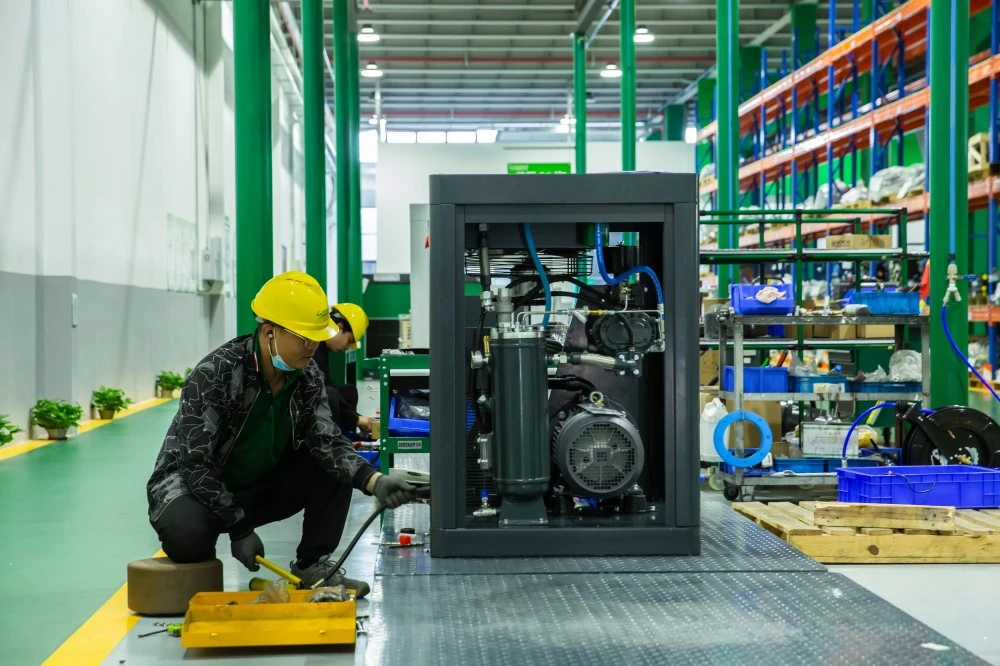

· Rigorous Production Process: Every compressor undergoes a meticulous production process, from material selection to final assembly. We implement stringent quality control checks at each stage, ensuring precision engineering and robust construction.

· Comprehensive Testing: Before shipment, each unit undergoes comprehensive performance testing to verify its efficiency, stability, and 100% oil-free air delivery, guaranteeing it meets our exacting standards and your operational needs.

Choosing Seize Air means partnering with a leading manufacturer dedicated to delivering superior air compression solutions.

· Manufacturer Advantage: As a direct Dry Oil-Free Screw Air Compressor Factory, we offer competitive pricing without compromising on quality. You benefit from direct communication, efficient service, and tailored solutions.

· Customization Capabilities: We specialize in Customized Dry Oil-Free Screw Air Compressor solutions, designed to meet your specific operational requirements and industry demands.

· Reliable Supply Chain: With Dry Oil-Free Screw Air Compressor in Stock and efficient production capabilities, we ensure timely delivery for both small orders and Bulk Dry Oil-Free Screw Air Compressor purchases.

· Global Recognition: As a reputable China Dry Oil-Free Screw Air Compressor Supplier, our products, known as Dry Oil-Free Screw Air Compressor Made in China, are trusted by businesses worldwide for their performance and value.

· Expert Support: Our team of experts provides comprehensive pre-sales consultation and dedicated after-sales support, ensuring seamless integration and long-term satisfaction.

When you need an Easy-maintainable Dry Oil-Free Screw Air Compressor that guarantees absolute air purity, look no further than Seize Air. Our commitment to innovation and quality ensures you receive a high-performance, reliable solution for your critical applications. We stand by the durability of our products, offering robust designs built to last. For businesses seeking a High-Efficiency Dry Oil-Free Screw Air Compressor or a High-Performance Dry Oil-Free Screw Air Compressor with proven track records, Seize Air delivers. We pride ourselves on being a trusted Dry Oil-Free Screw Air Compressor Factory and supplier, providing advanced technology that ensures your processes remain uncontaminated and efficient. Experience the difference with Seize Air's cutting-edge Standard Fixed-Speed Dry Type Oil-Free Screw Air Compressor technology.
