Continuous Duty Fixed-Speed Dry Type Oil-Free Compressor

What is a Continuous Duty Fixed-Speed Dry Type Oil-Free Compressor?

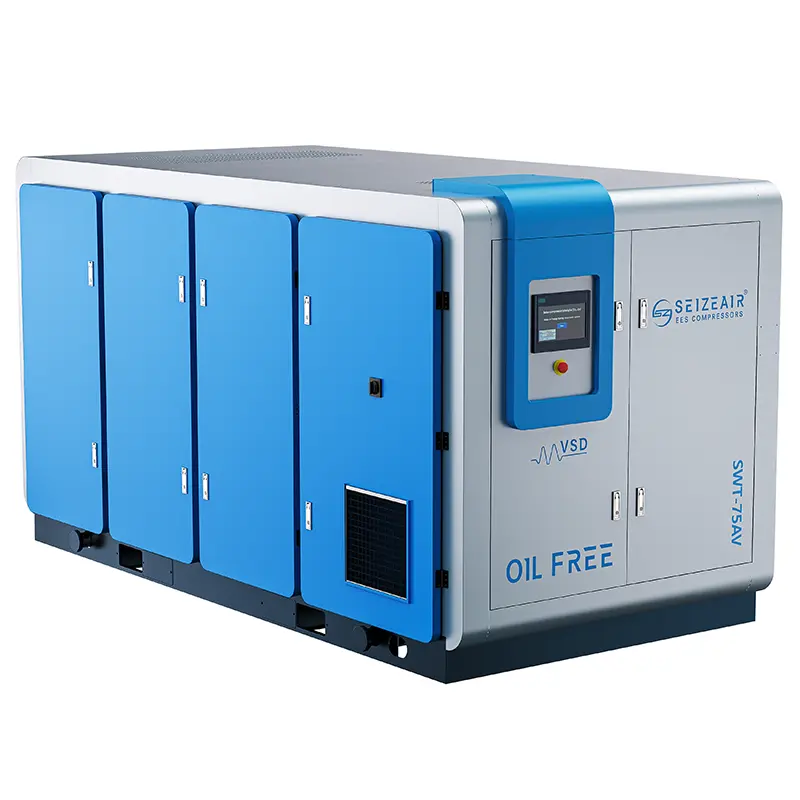

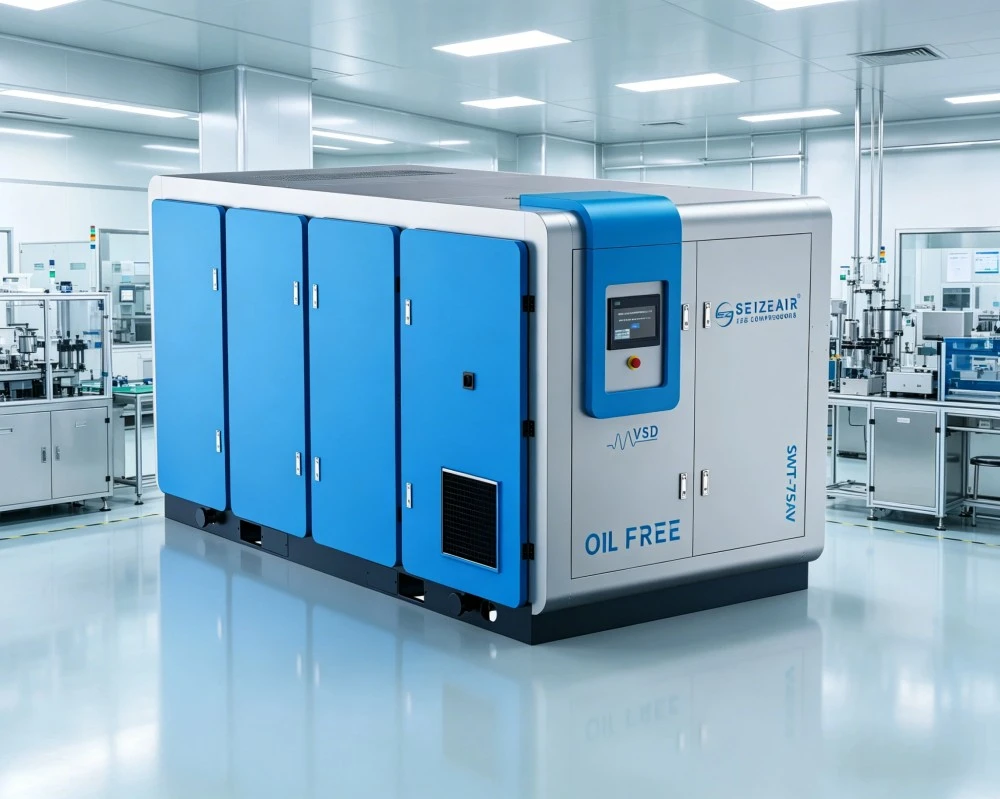

A Continuous Duty Fixed-Speed Dry Type Oil-Free Compressor is a premium industrial machine designed to generate completely oil-free compressed air. Unlike lubricated (oil-injected) compressors, it ensures that zero oil comes into contact with the compression chamber, delivering 100% contaminant-free air. This is critical for applications where air purity is non-negotiable. Its "fixed-speed" operation signifies robust and consistent performance at a constant output, ideal for processes with stable air demand. This Fixed-Speed Dry Type Oil-Free Screw Air Compressor is the backbone for manufacturers in sectors where product quality, safety, and process integrity are paramount.

Engineered for Purity & Reliability

For industries like pharmaceuticals and food processing, even microscopic oil contamination can lead to catastrophic product loss, recalls, and brand damage. Seize Air's compressor is built to eliminate this risk entirely.

· 100% Oil-Free Guarantee: The heart of our system is the German-engineered oil-free airend. It features a double labyrinth sealing structure with an intermediate air outlet. This mature design absolutely prevents lubricating oil from entering the compression chamber, guaranteeing Class 0 oil-free air (ISO 8573-1). This is more reliable and safer than traditional sealed systems prone to degradation.

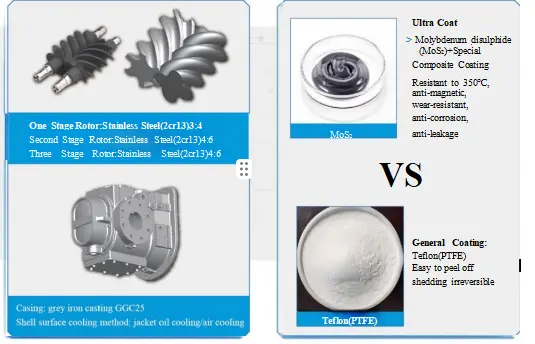

· Unmatched Durability & Stable Performance: The airend is designed for intake temperatures up to 52°C with a integrated cooling jacket for effective temperature control, ensuring stable operation in harsh environments. Key components like AGMA13 gears and SKF bearings maximize transmission efficiency and minimize noise. Furthermore, the rotor surface is coated with a special molybdenum disulfide layer, providing exceptional resistance to high temperature, corrosion, and impact, significantly extending the airend's service life.

· Superior Cooling & Energy Efficiency: The innovative partition design separates high and low-temperature zones, while independent intakes for compression and cooling air ensure optimal thermal management. The enlarged cooling system and optimized air duct minimize internal pressure loss, boosting overall machine efficiency compared to ordinary structures. The cooler uses an efficient external water-duct heat exchanger design for maximum heat dissipation and easier maintenance.

· High-Efficiency PM Motor: Equipped with a high-efficiency IPM (Interior Permanent Magnet) main motor, our compressor maintains optimal efficiency across its operating range, offering significant energy savings over standard induction motors, especially under full load.

· Intelligent Control & IoT Connectivity: The intelligent display controller provides real-time monitoring of all operating parameters. With a modular PLC controller featuring strong anti-interference, Modbus interface, and chain protection functions, it ensures safe and automated operation. The optional IoT system allows for remote monitoring via PC or mobile, enabling predictive maintenance and minimizing downtime.

Technical Specifications

Application Scenarios

Pharmaceutical Industry: Provides sterile, oil-free air for tablet coating, powder conveyance, fermenter agitation, and packaging lines. Prevents contamination of active ingredients, ensuring compliance with cGMP and FDA standards.

· Food & Beverage Industry: Essential for bottling, canning, food mixing, and pneumatic controls. Our CE-certified compressor guarantees that compressed air in direct contact with food is completely safe, meeting HACCP and ISO 22000 requirements.

· Electronics & Semiconductor Manufacturing: Supplies ultra-clean air for PCB assembly, chip cleaning, and wafer drying. Prevents oil aerosols from causing short circuits or product defects on sensitive components.

· Chemical Industry: Used in inert gas generation, pneumatic conveying of powders, and reactor processes where oil-free air prevents dangerous chemical reactions or catalyst poisoning.

As a leading China-based Manufacturer and Supplier of industrial air compressors, Seize Air offers distinct advantages:

· Factory-Direct Value: Eliminating middlemen allows us to provide high-quality Fixed-Speed Dry Type Oil-Free Screw Air Compressors at a competitive, low price. We offer discount schemes for bulk orders.

· Rigorous Quality Assurance & Certifications: Every compressor is built under a strict ISO 9001:2015 certified quality management system. Our products carry CE certification and undergo comprehensive performance and pressure testing before shipment.

Ready to Ensure 100% Oil-Free Air for Your Critical Operations? Contact Seize Air today for a detailed quote tailored to your needs. Experience the reliability of a true industrial-grade compressor. Get Your Free Quote & Latest Price Now Request a Product Sample or Technical Brochure
