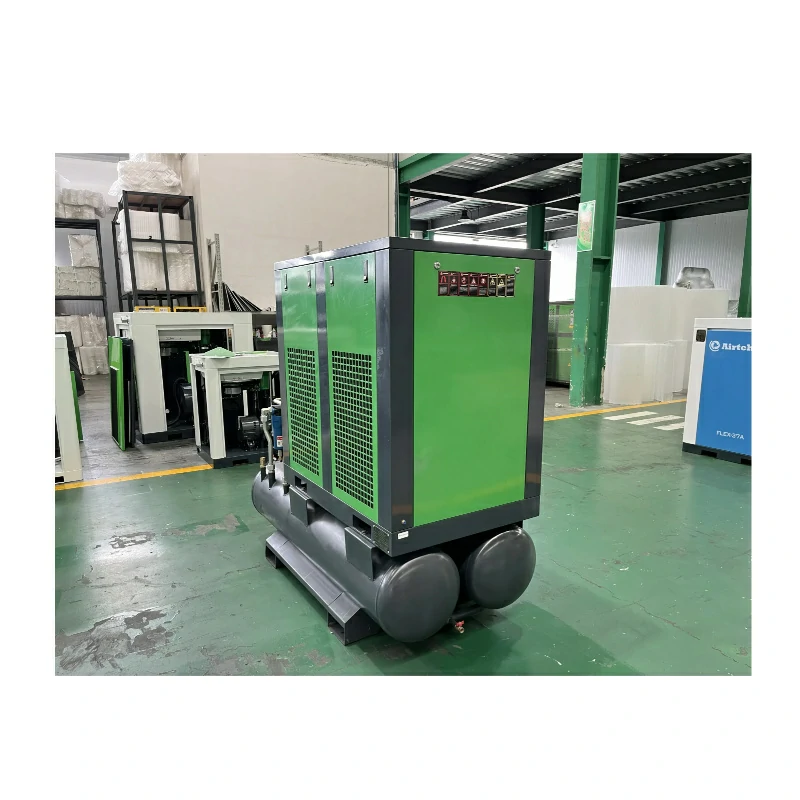

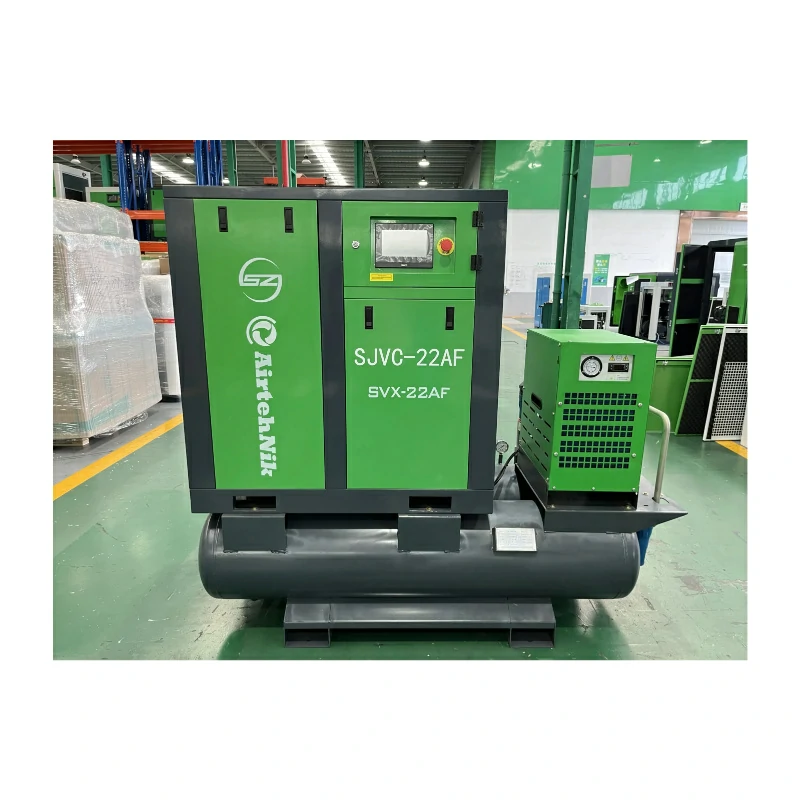

Tank Mounted All-In-One Air Compressor

Product Philosophy

The Tank Mounted All-In-One Air Compressor is engineered to provide a centralized air supply without the footprint of a traditional compressor room. By mounting the rotary screw unit directly onto a heavy-duty air receiver, we utilize vertical space and eliminate the need for external connecting pipes between the compressor and the tank.

This design is the ideal choice for automotive workshops, textile factories, and small-scale manufacturing units where “plug-and-play” functionality and compact design are the highest priorities.

Technical Specifications (Integrated Series)

Strategic Advantages of the Tank-Mounted Design

- Minimized Installation Overhead: As a specialized China manufacturer, we pre-assemble and pre-wire the entire system. Users only need to connect a single electrical line and one discharge air valve, reducing setup time by over 90% compared to modular systems.

- Advanced Vibration Isolation: Our Tank Mounted All-In-One Air Compressor features high-density rubber dampers between the compressor base and the tank surface. This prevents harmonic resonance from affecting the tank’s structural integrity or increasing workshop noise.

- Enhanced Air Quality Management: The integrated receiver tank acts as a natural primary separator, allowing the air to cool and moisture to drop out before it even reaches downstream filters.

- Leak-Free Internal Piping: By using rigid, high-pressure internal connections instead of flexible hoses, we significantly reduce the risk of air leaks and pressure drops over long-term operation.

Structural Integrity & Factory Compliance

Every unit from our China factory is built for extreme durability:

- ASME/CE Certified Tanks: Our air receivers undergo 100% X-ray weld inspection and hydrostatic testing to 1.5× their rated pressure.

- Corrosion Protection: The interior of the tank is treated with an anti-corrosion coating to prevent rust particulate from entering your pneumatic tools.

- Heavy-Duty Mobility: The entire base is designed with forklift slots, allowing for easy relocation within the factory as your production layout evolves.

Component Analysis: Why We Lead the Market

1. High-Efficiency Air End: Specifically selected for a 100% duty cycle, ensuring the compressor can run continuously without overheating.

2. Integrated Drainage System: Features a centralized automatic drain valve at the bottom of the tank to ensure all accumulated moisture is purged daily.

3. Smart Control Interface: A unified PLC monitors motor temperature, discharge pressure, and service intervals, providing a clear digital readout for the operator.

Why Partner with Our Factory?

As a leading supplier, we bridge the gap between high-end technology and localized support:

- Customization Options: We can provide customized tank sizes or dual-tank configurations for specific high-volume peak loads.

- Quality Traceability: Every Tank Mounted All-In-One Air Compressor carries a unique QR code linked to its factory test report and component manifest.

- Global Export Readiness: We handle all voltage conversions (e.g., 208V, 230V, 460V, 575V) and provide seaworthy plywood packaging.

Professional FAQ

Q1: Does mounting the compressor on a tank make it more difficult to maintain?

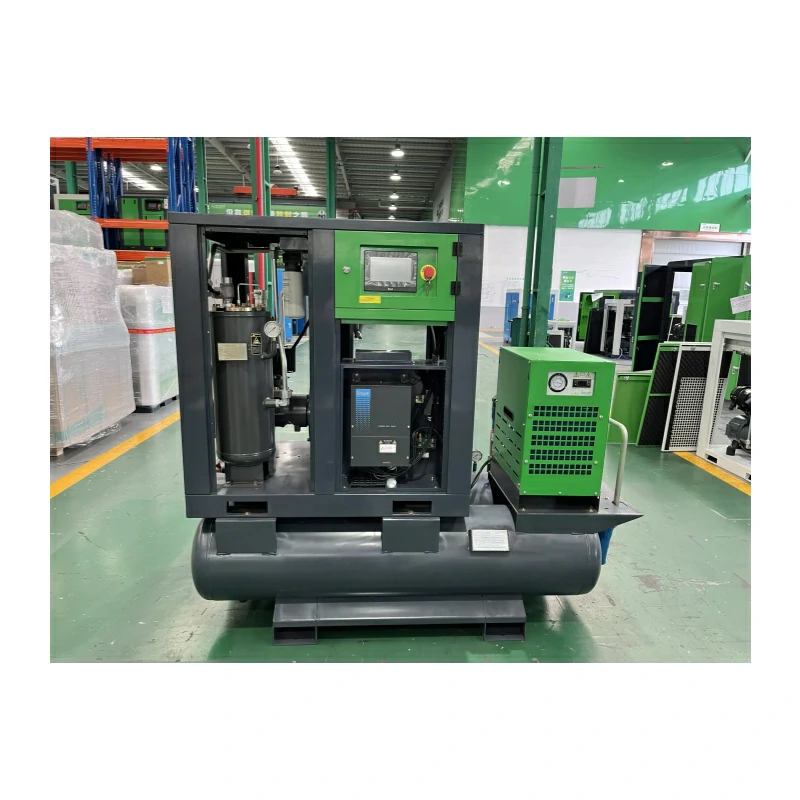

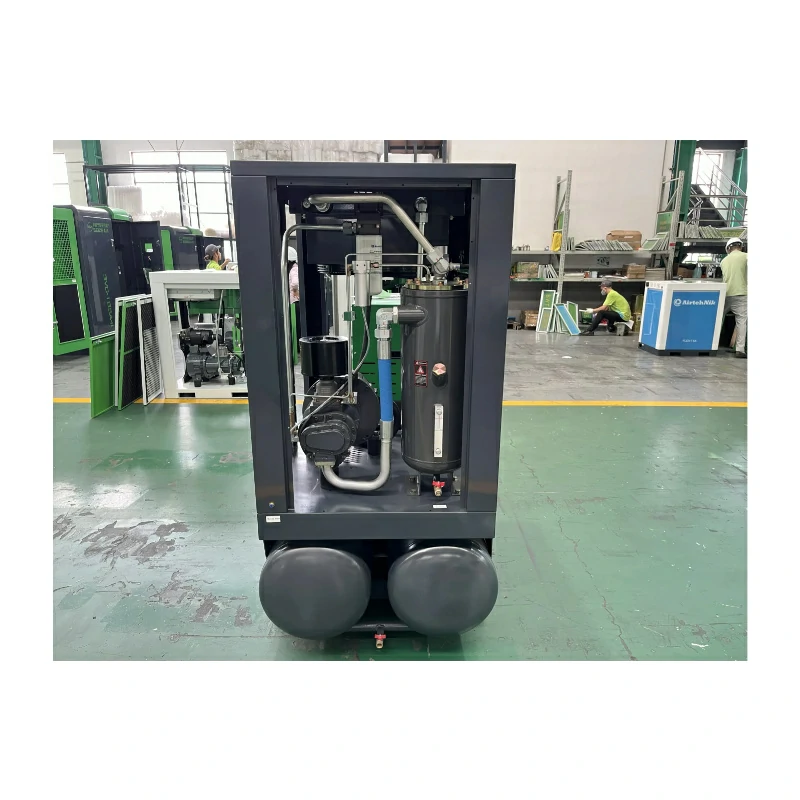

A: Not at all. As an experienced China manufacturer, we design our layouts with “maintenance clearance” in mind. All oil filters, air filters, and the separator are positioned on the outer-facing side of the unit, allowing for full service without removing any components from the tank.

Q2: What is the benefit of the “all-in-one” approach for a small workshop?

A: The primary benefit is the reduction in “system resistance.” Modular systems require long hoses and multiple fittings, which create friction loss. Our Tank Mounted All-In-One Air Compressor has the shortest possible air path, ensuring that the pressure generated by the air end is the exact pressure delivered to your tools.

Q3: Can the tank be used as a primary air storage for other machines?

A: Yes. The integrated 300 L to 500 L tank provides a significant buffer. For facilities with high-demand spikes, this storage helps prevent the motor from frequently cycling on and off, extending the lifespan of the electrical contactors and the motor.

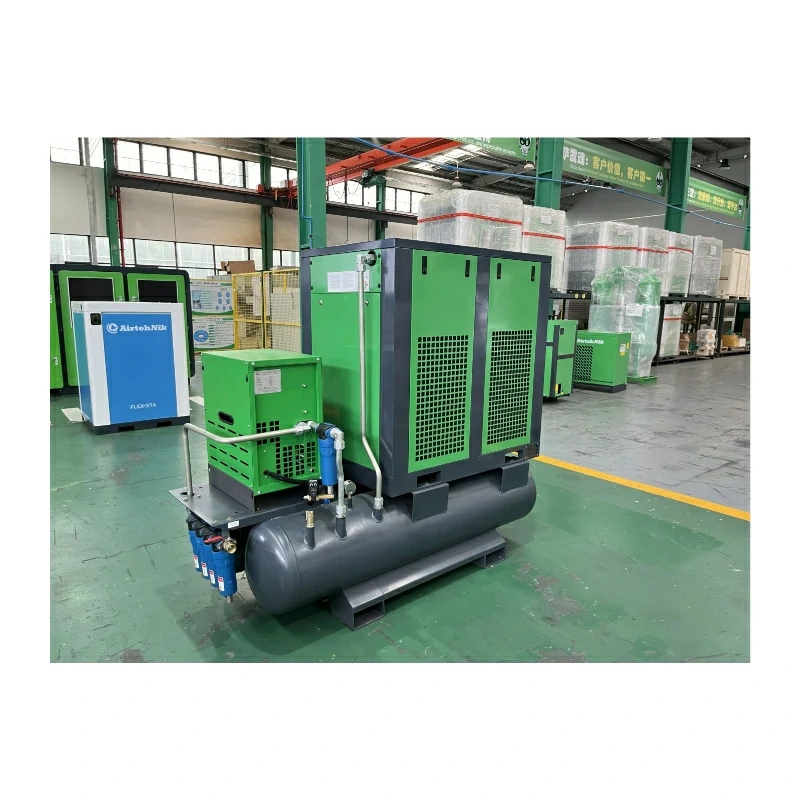

Q4: Is the dryer included in the “tank-mounted” configuration?

A: We offer both “tank-mounted standard” and “tank-mounted plus” (which includes a refrigerated dryer and filters). For most industrial applications, we recommend the version with the integrated dryer to ensure that no moisture reaches your downstream equipment.
