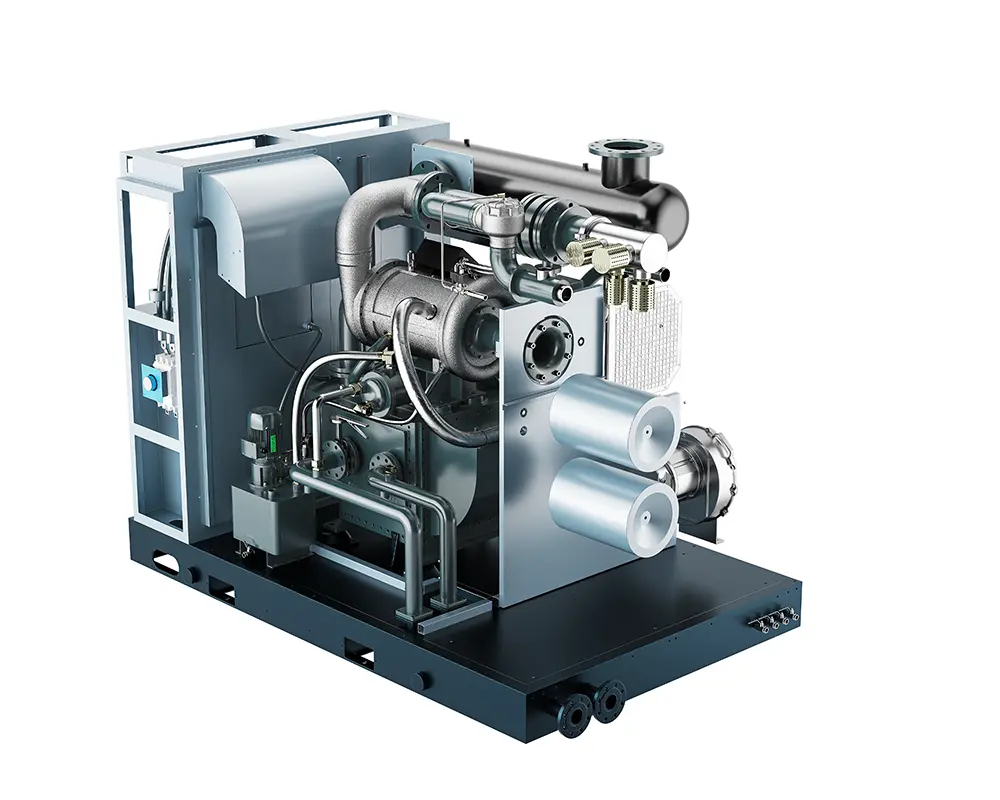

Energy Saving Magnetic Levitation Turbo Low Pressure Compressor

Energy Saving Magnetic Levitation Turbo Low Pressure Compressor is a high-efficiency energy-saving low-pressure air supply equipment carefully developed by Seize Compressor (Shanghai) Co., Ltd., a professional China energy-saving magnetic levitation air compressor factory and manufacturer, aiming at the pain points of high compressed air energy consumption and high electricity cost for industrial enterprises.

Energy-Saving Magnetic Levitation Turbo Low-Pressure Compressor integrates a suite of core energy-saving technologiessuch as high-efficiency three-dimensional flow impeller, high-speed magnetic suspension motor, intelligent variable frequency adjustment and low-pressure drop cooling system, it can save 20%–30% electricity cost on average compared with traditional screw air compressors and gear speed increasing centrifugal air compressors. Each 1kW equipment can save about 2000 yuan of electricity and reduce carbon emissions by 2.355 tons per year, making it the preferred energy-saving equipment for industrial enterprises to achieve low-carbon production, cost reduction and efficiency improvement.

Technical Parameters & Stable Performance

Patented SEIZE Impeller Technology

● Aerospace-grade 7075 aluminum impeller with 5-axis CNC precision machining (1μm tolerance)
● 3D flow optimization via CFD analysis, achieving 92%+ polytropic efficiency
● 115% overspeed tested + anodized surface treatment for corrosion/wear resistance

Advanced Dual-Cooling System

● Internal air cooling: EBM blowers maintain rotor temperature <65°C
● External liquid cooling:
✓ Glycol circulation keeps stator at <45°C (freeze-proof)
✓ Shell-and-tube heat exchanger improves 3% isothermal efficiency
✓ Integrated low-pressure-drop water cooler with moisture separation

Active Magnetic Bearing System

● 5-DOF contactless suspension (zero friction/wear)
● 10,000+ real-time corrections/sec via position sensors
● Self-powering during outages (kinetic energy conversion)
● 30+ emergency bearing drop tests passed

Intelligent Control & Monitoring

● INVT premium VFD (97% efficiency, ±0.2% speed accuracy)
● ASME-calibrated flow measurement (eliminates external meters)
● 4G IoT dashboard for:
✓ Real-time pressure/temperature/power monitoring
✓ Predictive maintenance alerts
✓ Multi-unit synchronization

Energy-Saving Innovations

● Dual-stage air filtration (99.9% @1μm) extends filter life 3X
● 10% speed-adjusted savings vs. bypass systems
● Low-velocity airflow design (<10m/s, 3% energy reduction)
● External cold air intake boosts 2% thermal efficiency

Acoustic & Reliability Features

● 72dB(A) at 1m (40% quieter than gear-driven models)
● Vibration <0.5mm/s (ISO 10816 Class A)
● Zero lubrication = 60,000+ hour bearing life
● Pre-cyclone intake + nanofiber filters protect critical components

Key Advantages

● 30% Lower TCO vs. traditional blowers

● Plug-and-play installation

● ATEX/ISO 1217 Class 0 compliant

● 24/7 remote monitoring

Energy Saving Magnetic Levitation Turbo Low Pressure Compressor

Customer Value & Brand Strength

As a strong China Energy Saving Magnetic Levitation Turbo Low Pressure Compressor manufacturer, Seize has a number of qualifications and honors such as energy-saving air compressor invention patent, Shanghai Green Factory, Energy Efficiency Laboratory Certification. Our products have been widely used in steel, cement, textile printing and dyeing, sewage treatment, chemical and other industries, helping thousands of enterprises achieve a significant drop in electricity costs and low-carbon production. With short investment return cycle and stable energy-saving effect, it has become a trusted energy-saving air compressor brand for global industrial users.



SEIZE Magnetic Levitation Centrifugal Compressor vs. General Brand Magnetic Levitation Air Compressor Comparison Table

No.

SEIZE Magnetic Levitation Centrifugal Compressor Advantages

Benefits to Users

General Brand Magnetic Levitation Air Compressor

1

Anti-surge design, self-power generation technology

Ensure stable operation of equipment

Not available

2

S-shaped air intake channel at main engine inlet, customized sound insulation cover

Reduce noise

Not available

3

Triple air intake filtration, standard high-precision air filter element, forced external air intake

Ensure high cleanliness of intake air, reduce efficiency attenuation

Not available

4

EBM blower forced external air cooling for motor and magnetic levitation bearing

Prevent high temperature

Not available

5

Intercooler adopts complete counterflow of cold and hot media

Approach isothermal compression, improve compression efficiency

Not available

6

Equipped with patented high-efficiency comb seal ring

Reduce gas leakage

Not available

7

Enlarged design of internal pipelines in the whole machine system

Reduce flow resistance

Not available

8

Built-in smart electricity meter, differential pressure transmitter; display of power consumption and flow rate

Intelligent energy saving

Not available

FAQ

Q: Can magnetic levitation air compressors really stably save 30% energy compared with screw compressors?

A: Yes. SEIZE magnetic levitation air compressors adopt technologies such as friction-free magnetic levitation bearings, high-efficiency three-dimensional flow impellers and intelligent variable frequency adjustment. Compared with traditional screw compressors, the average energy-saving rate is 20%-30%. The actual energy-saving rate of this project reaches 30%, and the data is true and traceable.

Q: Can 100% oil-free really meet the quality control requirements for export to the EU?

A: Absolutely. Our equipment has passed the ISO 8573-1 CLASS 0 oil-free certification, which is the current highest standard for compressed air cleanliness. It can meet the export quality control requirements of food, medicine, high-end textile and other industries.

Q: Is equipment maintenance troublesome? Is the cost high?

 Magnetic levitation air compressors have no lubricating oil and gear boxes, only need to clean the air filter element regularly. The operation and maintenance cost is reduced by 90% compared with screw compressors, and the annual average operation and maintenance cost is less than 10,000 yuan, which greatly reduces the burden on enterprises.

Can customized equipment suitable for our enterprise's working conditions be provided?

A: Of course. As a professional China magnetic levitation turbo two-stage low pressure air compressor factory, we can provide 100% customized equipment and solutions according to the enterprise's demand for pressure, flow, voltage, working conditions and other aspects.
