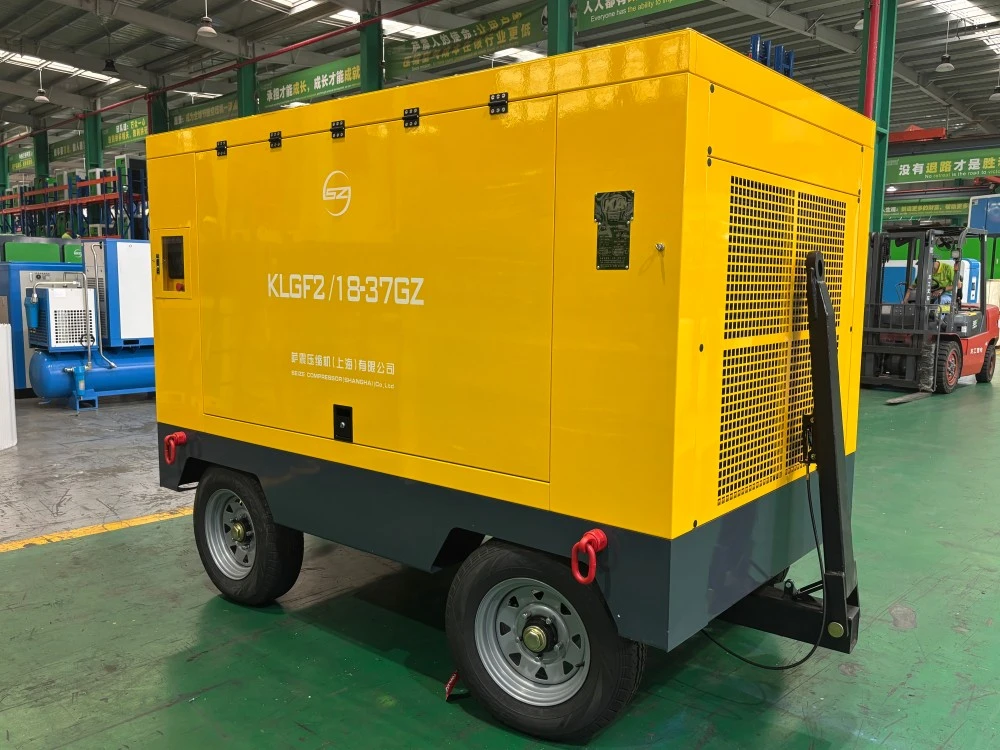

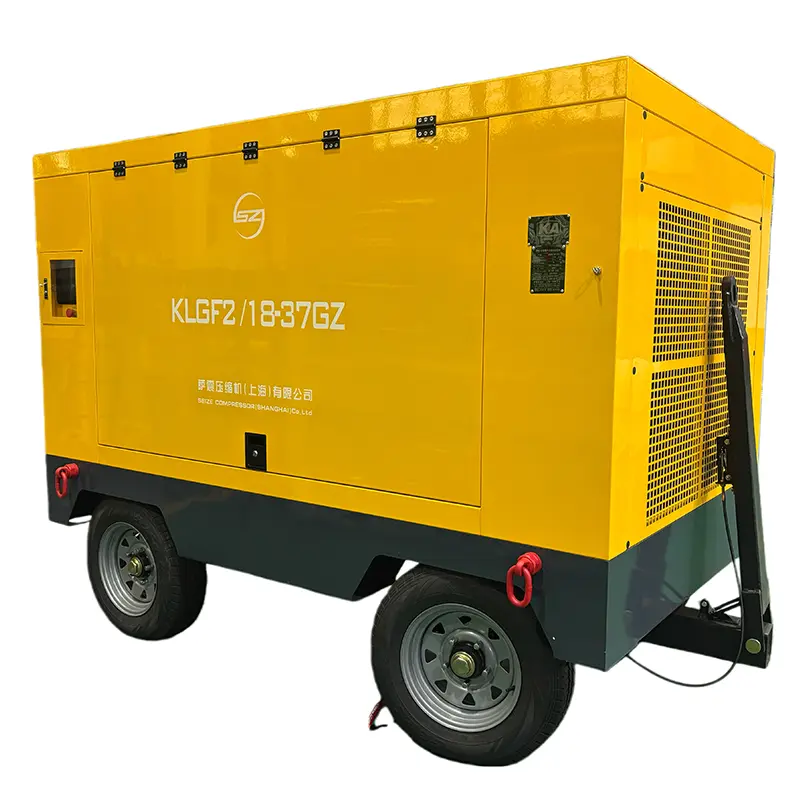

Trailer Mounted Portable Air Compressor

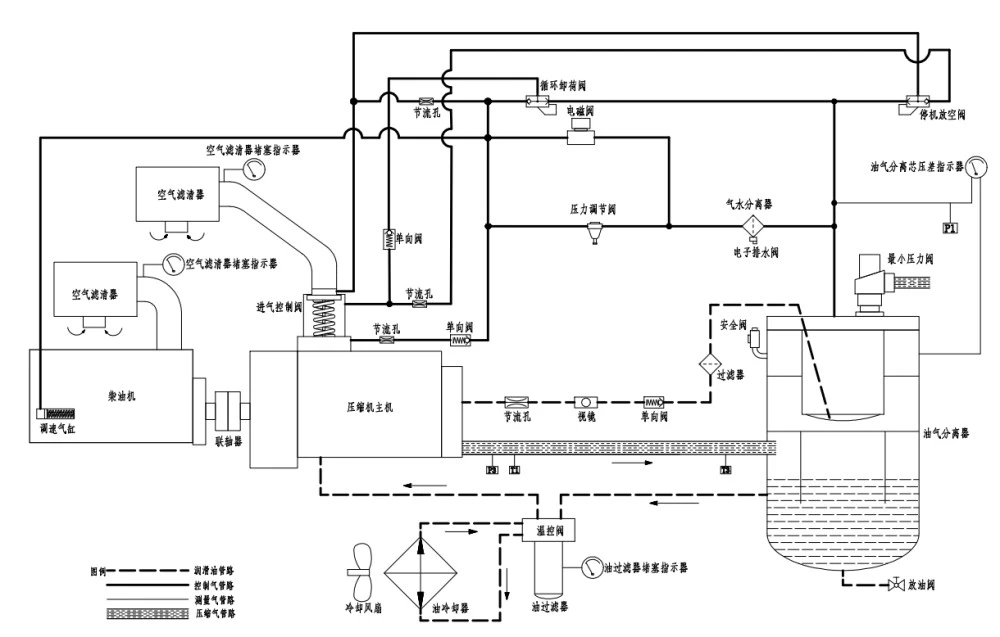

Powered by a diesel engine, it drives the screw compressor rotor to compress air to a targeted pressure. The unit features a wheel-based mobility system for easy transport and on-site operation. The diesel engine’s output shaft drives the compressor through a high-torque flywheel-mounted coupling. Fresh air enters via an air filter, then the intake valve feeds the compression chamber. As air is compressed in the screw groove, it exits the head through the exhaust outlet and enters the oil-gas separator. After oil separation, the low-oil-content compressed air passes through a minimum pressure valve, supply lines, and air control valves to the end user. The separated lubrication oil settles at the separator bottom, cools via an oil cooler, and recirculates back into the compressor chamber under pressure differential. The front of the diesel engine drives a belt-driven cooling fan to dissipate heat from the compressor oil and engine coolant. This design ensures sustained performance and reliability in challenging environments. This solution integrates high filtration, robust cooling, and a stable walking chassis to deliver continuous, clean compressed air for demanding industrial tasks.

This Trailer Mounted Portable Air Compressor is designed to deliver consistent Portable Air Compressor performance with fuel-efficient diesel power and enhanced filtration, ideal for tough field conditions.

Core Features & Benefits

● High-stability main unit: Engineered for optimal rotor speed according to 1530 m/s outer diameter, achieving low operational rpm (1800–2200 rpm) for smooth performance.

● Precision-built rotors from German equipment standards ensure tight tolerances and low vibration (<5 mm/s).

● SKF bearings provide long service life and dependable operation.

● Reputable engine compatibility: Fits renowned brands like Kubota, Caterpillar, Cummins, Yuchai; delivers strong torque and reliable performance.

● Optional cold-start features: Intake preheater for sub-5°C starts; water jacket heating for cold environments down to -20°C.

● Global service network: Timely, comprehensive service support wherever you operate.

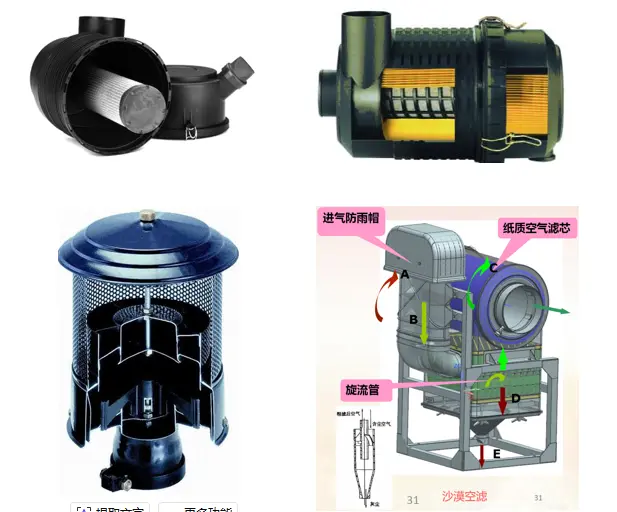

● Safe tangential dual-stage air filtration: Primary filter removes ~99% of dust; safety cartridge provides backup filtration during maintenance or primary filter failure.

● Optional pre-filtration and desert air filters with automatic dust suppression for harsh environments; desert filters achieve ≥93% coarse filtration and ≥99.99% total filtration life.

● Robust cooling system: Designed to operate in ambient temps up to 52°C, well beyond typical 40°C specs, reducing heat-related downtime.

● Reinforced condenser frame and sealed between coolers for vibration resistance and enhanced heat dissipation.

● High-safety undercarriage: Low center of gravity, manual braking, leaf-spring vibration dampers; optional high-speed chassis (up to 100 km/h) with torque-damped suspension, drive, and parking/brake lights for night visibility.

● Performance-driven layout: Selects the appropriate main unit speed from 15–30 m/s to optimize efficiency and avoid overloading smaller chassis.

● Efficient oil separation: Built-in foldable oil separators reduce pressure loss and energy consumption by ~2%.

● Simplified structure for easy tow connection; adjustable hitch height and lifting brackets for easy installation.

Technical Specifications

All models are autonomously developed mobile units. Standard range: 2.5–60 m³/min, pressure 7–40 barG.

Compared with other options, the Trailer Mounted Portable Air Compressor from SEIZE AIR features a customizable frame and a powerful diesel engine, making it well-suited for demanding mobile applications. As a professional China supplier, SEIZE AIR delivers reliable, high-quality performance with strong durability, stable compressed air output, and convenient maintenance support, ensuring efficient operation in various industrial and field environments.

Conclusion:

For global buyers: SEIZE AIR offers flexible options including customized trailer mounted portable air compressors, ready-to-ship inventory models, and bulk supply for larger projects.

For sourcing and manufacturing: SEIZE AIR supports cooperation as a China supplier, providing reliable dry oil-free screw air compressor solutions made in China with consistent quality and dependable performance.
