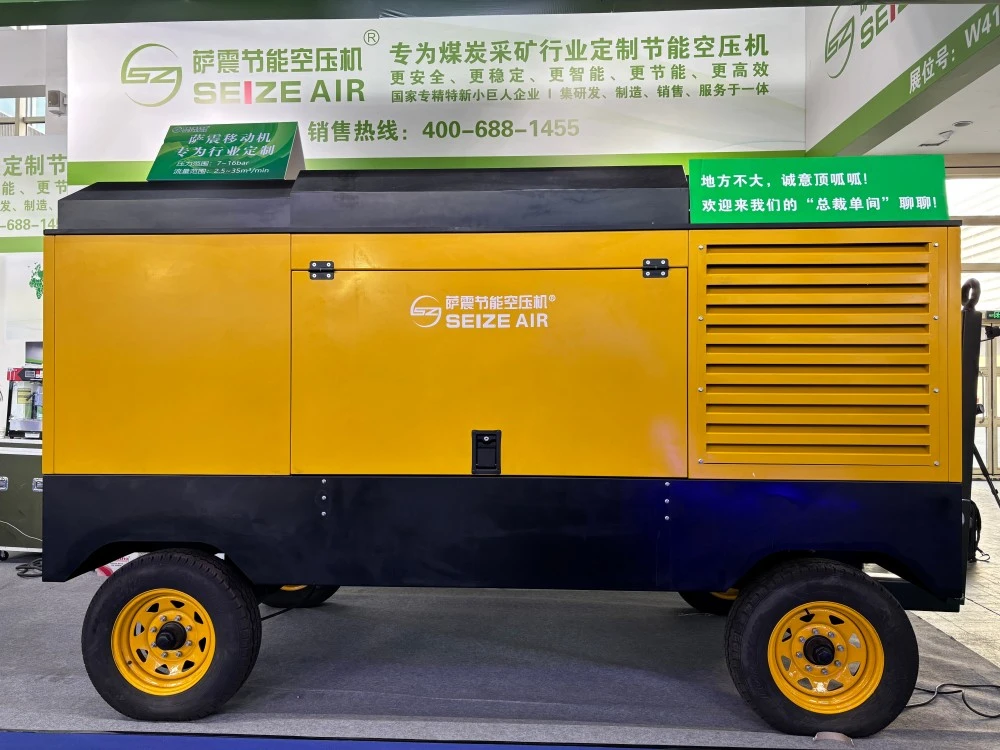

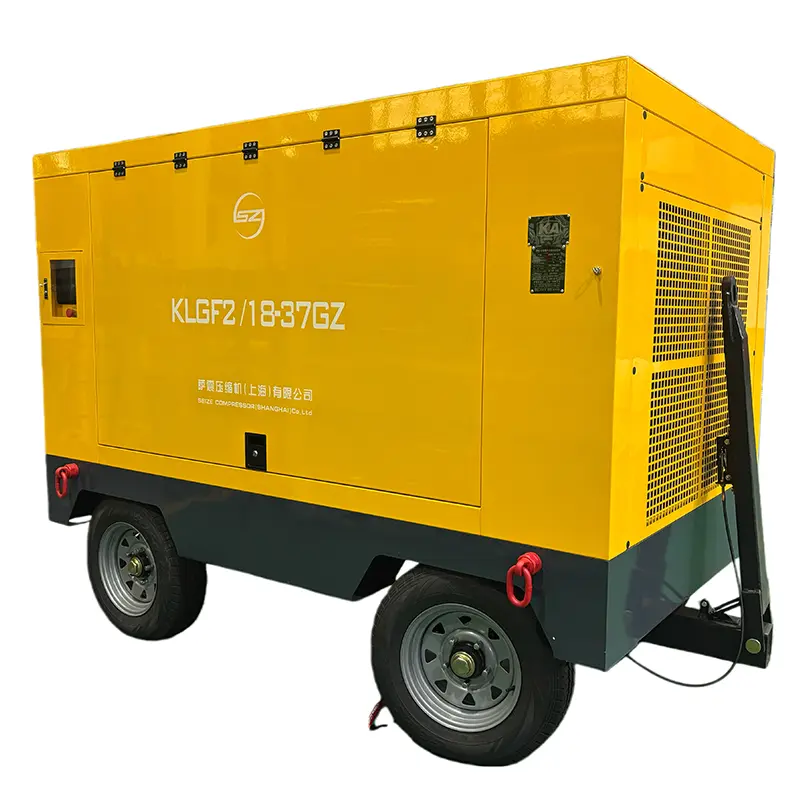

Diesel Engine Portable Air Compressor

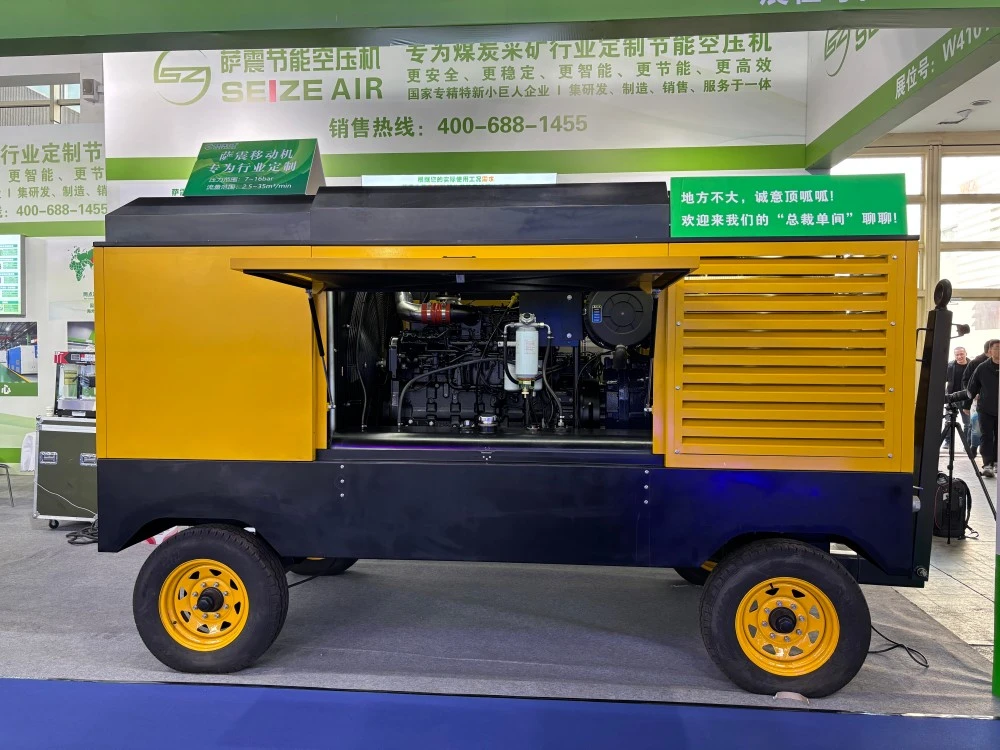

A Diesel Engine Portable Air Compressor is a self-contained, mobile unit that generates compressed air by utilizing a diesel engine to drive a screw compressor. It integrates a wheeled chassis for easy transportation to job sites without fixed power sources. The process begins as the diesel engine drives the compressor rotors. Air is filtered, drawn into the compression chamber, and compressed. After passing through an oil separator, clean, pressurized air is delivered for use, while the oil is cooled and recirculated. This design makes it an indispensable power source for remote and demanding operations worldwide.

● High-Stability Air End: Features optimally designed rotors (15-30m/s line speed) manufactured with German precision equipment and SKF bearings for minimal vibration (<5mm/s) and extended service life.

● Premium Diesel Engines: Powered by renowned brands like Kubota, Cummins, or Yuchai, ensuring strong, reliable performance. Options include cold-start aids (intake pre-heater, jacket water heater) for operation down to -20°C.

● Advanced Dual Air Filtration: Equipped with a tangential heavy-duty air filter with a safety element. Optional pre-filters and desert air filters (93%+ pre-separation) protect the system in extreme conditions like deserts.

● Robust Cooling System: Engineered for ambient temperatures up to 52°C (vs. industry standard 40°C), preventing overheating shutdowns. The reinforced cooler assembly withstands vibration.

● Safe & Mobile Design: Low center of gravity and leaf spring suspension ensure safe towing. Options include high-speed chassis (up to 100 km/h), braking systems, and lighting for secure transport.

● Optimized for Efficiency: System design minimizes internal pressure loss (~0.06MPa saved), reducing fuel consumption by approximately 4%. The unit is easy to connect to tow vehicles with an adjustable tow bar and lifting lugs.

Technical Specifications

Seize Air offers a full range of self-developed portable air compressors. Standard models cover a flow range from 2.5 to 60 m³/min and working pressures from 7 to 40 barG. Specific technical datasheets are available upon request.

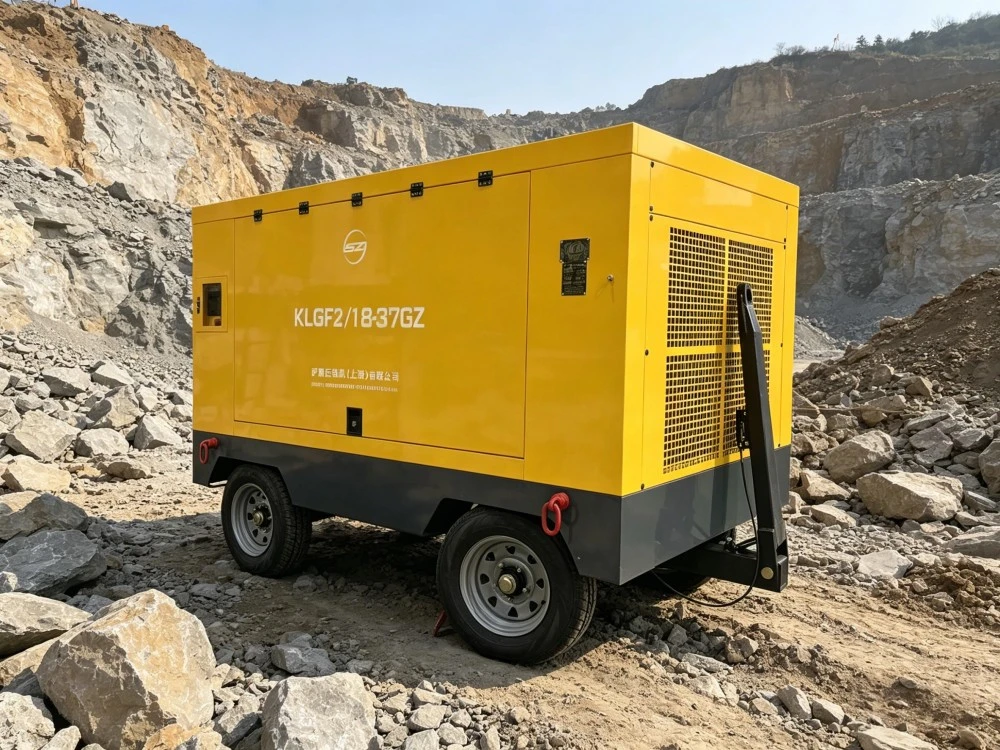

● Construction & Infrastructure: Site leveling, demolition, rock drilling, quarry blasting.

● Mining: Exploration, ore processing, and ventilation.

● Agriculture: Crop spraying, operating conveyor systems.

● Oil & Gas: Pipeline sandblasting, air drilling, nitrogen generation.

● Shipbuilding & Repair: Hull painting and sandblasting.

● Municipal Maintenance: Emergency pipeline repair and utility work.

As a leading Manufacturer and Supplier, Seize Air provides distinct advantages:

● Direct Factory Price: Competitive pricing without middleman markups.

● Flexible Customization: We tailor specifications (flow, pressure, chassis, engine brand) to your project needs.

● Reliable Supply: Many Diesel Engine Portable Air Compressor models are in Stock for quick delivery.

● Global Service Network: Assurance of timely technical support and spare parts worldwide.

● Quality Assurance: Rigorous testing ensures every unit meets high standards before shipment.

For businesses seeking a dependable High-Performance Diesel Engine Portable Air Compressor, Seize Air stands as a trusted China Diesel Engine Portable Air Compressor Supplier. Whether you need a standard unit or a Customized Diesel Engine Portable Air Compressor for specialized applications, we deliver robust solutions.

Ready to Power Your Project?

Contact Seize Air today for a detailed quote, the latest price, or to discuss your specific requirements. Request a product catalog and get your reliable air power solution!
