What separates a dedicated low-pressure system from a modified standard compressor? When an application only needs low-pressure air, using a standard compressor requires intake throttling or pressure reducing valves, which create severe energy bottlenecks.
As an expert industrial supplier, Seize Air engineered this system from the ground up for low-pressure dominance. The Heavy-Duty Continuous Operation PM VSD Low Pressure Single-Stage Screw Air Compressor features an optimized 3x5 variable spiral screw rotor profile designed specifically for lower compression ratios. This tailored internal clearance reduces internal leakage and mechanical friction, saving 15% to 30% more energy than operating a standard machine at reduced pressure.
Plant engineers specify this platform to achieve rapid return on investment (ROI) through relentless electrical efficiency:
Teflon-Coated Rotors: The precision rotors are coated with Teflon to minimize air loss and significantly improve volumetric efficiency under continuous heavy loads.
IE4 / IE5 Permanent Magnet Motor: Utilizing a wide frequency range (25-100%), the IP55 air-cooled PM motor eliminates unloading waste by constantly tracking your facility's fluctuating air demands.
Double VSD Control System: Unlike standard variable speed models, this unit features independent inverters for both the main motor and the cooling fan. This ensures constant pressure output while maintaining an optimal discharge temperature of 85°C to keep lubricating oil at peak viscosity.
SKF & FAG Bearings: Built for 24/7 non-stop manufacturing, the airend utilizes world-famous high-toughness, high-temperature bearings to guarantee reliable operation across different RPMs.
To accommodate diverse continuous manufacturing lines, we offer scalable configurations. Below are the standard operational bounds for our low-pressure series:
Engineering ParameterSpecification DataIndustrial BenefitWorking Pressure Range0.4 ~ 4.0 Bar Eliminates the need for pressure-reducing valves in low-pressure applications. Air Capacity Delivery25 ~ 182.5 $m^3/min$Massive, stable volumetric flow for pneumatic conveying and aeration.Motor Power Range22 ~ 250 KW (40 ~ 440 Hp) Highly scalable power tailored to specific factory utility requirements. Drive TechnologyDouble VSD (Main Motor + Fan) Synchronized control for maximum energy conservation and thermal stability. Oil Pump IntegrationHigh Reliable Screw Oil Pump Ensures forced oil injection pressure to extend the lifespan of the airend.
The Heavy-Duty Continuous Operation PM VSD Low Pressure Single-Stage Screw Air Compressor is the backbone of industries where high-volume, low-pressure air is critical to the final product's physical or chemical integrity.
Glass Manufacturing: Providing vast amounts of steady, low-pressure cooling air for glass molding and tempering lines without pulsation.
Chemical Fibre & Textiles: Powering air-jet looms and texturizing machines where precise 2-3 bar pressure dictates fabric quality.
Fermentation Industry: Delivering continuous, high-volume biological aeration for pharmaceutical and food fermentation tanks.

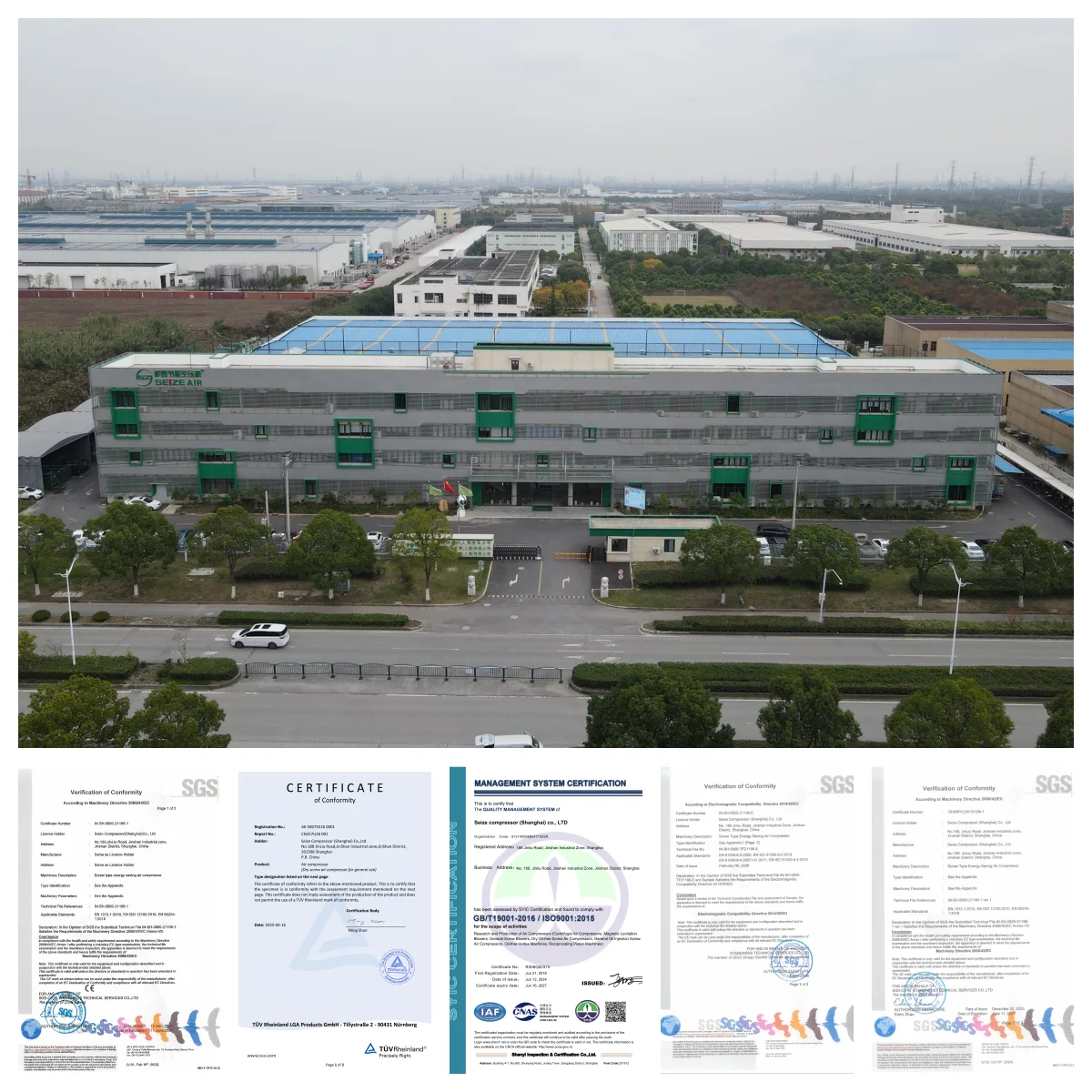

Procuring capital equipment directly from a certified factory mitigates risk. Located in the Jinshan High-tech Zone of Shanghai, Seize Air operates a 40-acre intelligent manufacturing plant equipped with a national-level energy efficiency laboratory.
We control every micron of our production quality:
Ultra-Precision Machining: Airends are milled on Japan OKUMA 5-axis machining centers (positioning accuracy ±15μm/m) and German KAPP gear profile grinders (radial runout≤2μm).
Dynamic Balancing: All rotating assemblies are balanced to ISO 1940-1 Grade G2.5 standards to eliminate vibration during continuous operation.
Global Certifications: Our manufacturing processes and output are heavily audited, holding ISO9001, ISO14001, CE (S & SV Series), EAC, and verified SGS Performance Testing Reports.
Our low-pressure compression architecture is trusted by some of the most demanding industrial conglomerates in the world. As a reliable international supplier, Seize Air's equipment is currently running in the facilities of global giants, including Baosteel, Shell, Toyota, Sany, Disney, and the China National Nuclear Corporation (CNNC). When you upgrade your pneumatic system with us, you are deploying the exact same technology trusted by Fortune 500 manufacturers.
Q: How does a dedicated low-pressure compressor save more energy than dialing down my standard 8-bar compressor? A: If you set a standard 8-bar compressor to output 3 bar, the internal rotor geometry is still fighting an 8-bar compression ratio design. This results in severe internal intake throttling losses. Our low-pressure airend is physically cast and machined for a low compression ratio, reducing theoretical power consumption at the source. This typically results in an immediate 15% to 30% energy saving.
Q: Is the Double VSD system really necessary for continuous 24/7 operations? A: Yes. In continuous manufacturing, ambient temperatures and line demands shift between day and night shifts. The Double VSD system not only modulates the main motor to save power, but it also independently speeds up or slows down the cooling fan. This keeps the discharge temperature locked at an ideal 85°C, ensuring optimal oil viscosity and preventing the machine from overheating.
Q: What is the lead time and packaging standard for international freight?
A: Standard configurations are typically dispatched within 15-25 working days. For ocean freight, all machines are vacuum-sealed with desiccant to prevent marine corrosion and bolted into reinforced, fumigated wooden crates built for heavy forklift and crane handling during port stevedoring.
Optimize Your Low-Pressure Production Line Today Stop wasting capital on artificial pressure drops. Contact our application engineers for a free theoretical energy-saving calculation based on your current plant air demand. Discuss the Heavy-Duty Continuous Operation PM VSD Low Pressure Single-Stage Screw Air Compressor with SEIZE AIR.
