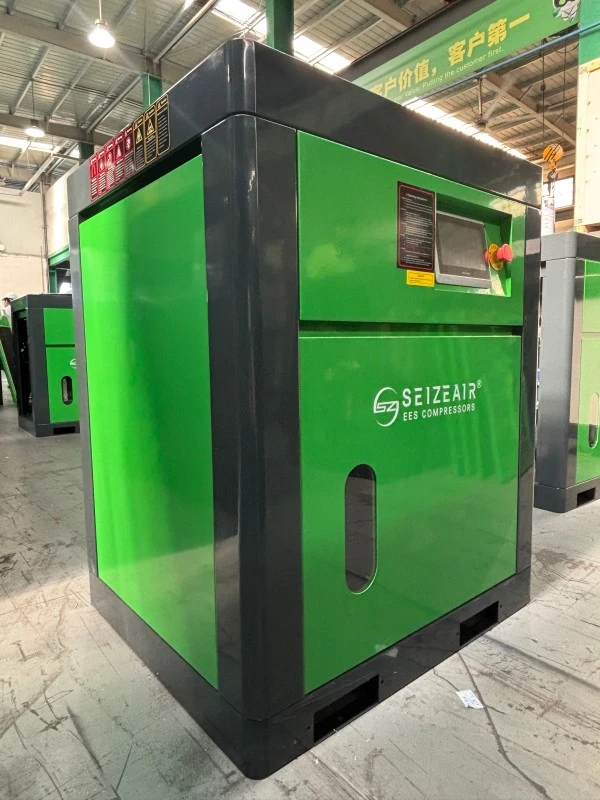

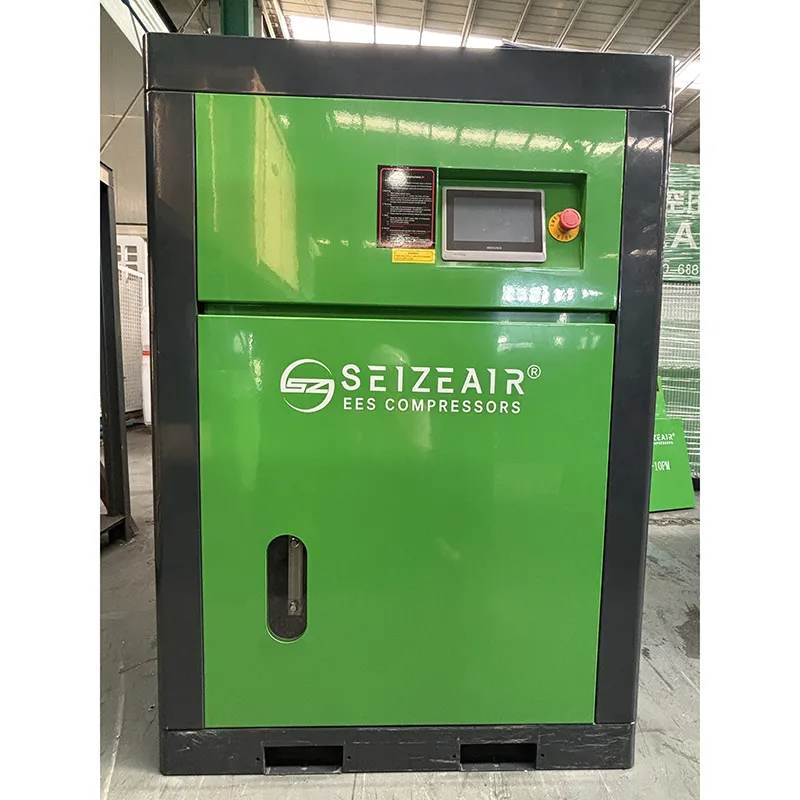

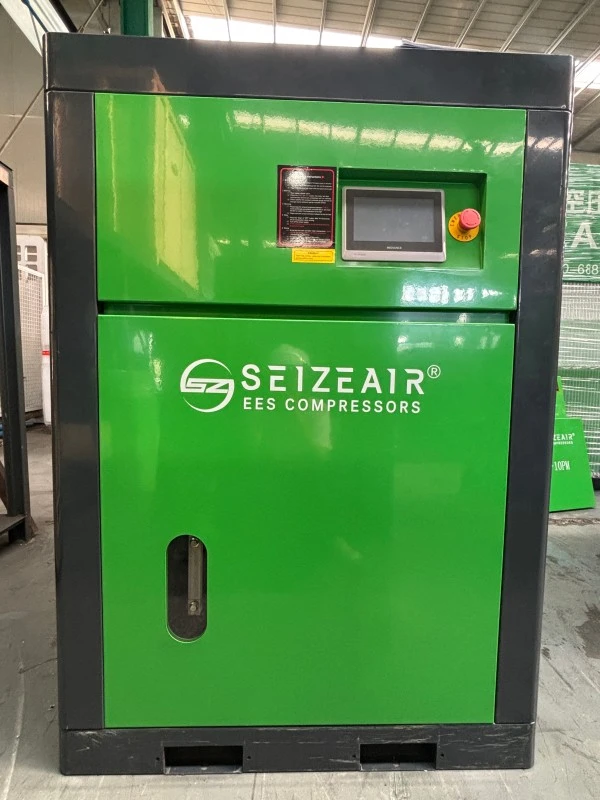

Direct Driven PM VSD Single-Stage Screw Air Compressor

A Direct Driven PM VSD Single-Stage Screw Air Compressor is an advanced industrial air system that combines direct-drive transmission, permanent magnet variable speed drive (PM VSD) technology, and a single-stage screw compression design to deliver efficient and stable compressed air.

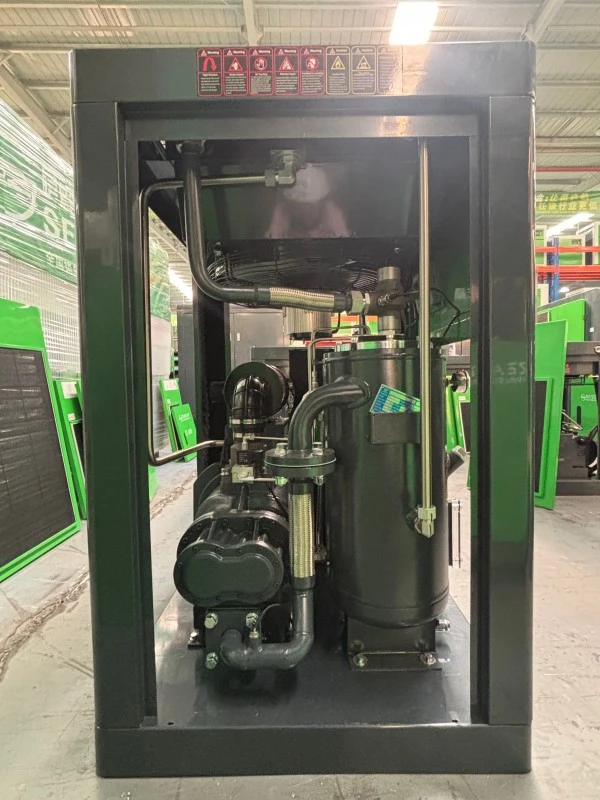

In a direct-driven structure, the motor is directly connected to the airend, eliminating belt losses and improving transmission efficiency while reducing maintenance requirements. The PM VSD system adjusts motor speed in real time according to air demand, helping reduce energy consumption and maintain consistent pressure output.

The single-stage screw airend is optimized for general industrial applications, providing reliable performance, high efficiency, and smooth airflow. This type of compressor is widely used in manufacturing, automotive, textiles, and general industrial production where energy efficiency, durability, and stable air supply are critical.

Transforming Pneumatic Reliability

Industrial operations demand uncompromising stability and cost-effectiveness. Stepping away from conventional belt-driven designs, this system utilizes a true 1:1 direct coupling architecture. This seamless connection entirely eliminates mechanical friction and transmission loss, ensuring that our equipment provides relentless, heavy-duty performance while significantly driving down your facility's daily electricity expenses.

Engineering Superiority and Core Features

Crafted with precision by an experienced manufacturer, every component within the acoustic cabinet is optimized for maximum lifespan and output purity.

Zero-Loss Transmission: The motor and the air end are perfectly aligned. This 1:1 direct connection means there are no belts to snap and no gears to replace, drastically reducing your annual maintenance budget.

Twin-Inverter Precision: Dynamic energy savings are achieved through a dual-frequency drive that modulates the cooling fans and the main motor simultaneously. With an adjustable speed range spanning 40% to 100%, the system maintains a strict ±0.1% control precision, virtually eliminating idle energy waste.

Whisper-Quiet Operation: Powered by a large rotor host and stabilized by a premium SKF/FAG 6-bearing setup (rated 75+ for high durability), the machine absorbs internal vibrations. The acoustic output remains firmly below 65 dB, fostering a safer, quieter workspace without the need for ear protection.

Superior Thermal Dissipation: The smart top-exhaust, air-cooled design pulls fresh air externally and vents hot air upwards. This not only cools the unit effectively but allows for versatile installation in tight corners, keeping the oil temperature consistently within a tight ±2°C window.

Answering Your Procurement Questions

Before sourcing your next Direct Driven PM VSD Single-Stage Screw Air Compressor, consider these critical insights frequently discussed by our global clientele:

How does the system ensure clean air for sensitive manufacturing?

We integrate an advanced, custom oversized oil-gas separator tailored specifically for high-demand scenarios. It aggressively minimizes pressure drop and restricts residual oil to less than 3 ppm, heavily safeguarding your downstream instruments from contamination.

Is the motor protected against harsh factory elements?

Absolutely. The highly efficient PM motor features an IP65 protection rating. It is completely sealed off from dust ingress and low-pressure water. Whether your facility operates in high humidity or heavy particulate environments, the motor remains secure, cool, and efficient.

Essential Technical Specifications

To match your facility's exact pneumatic demands, here is a breakdown of what powers our machinery:

Drive Mechanism: Direct 1:1 Coupling (Zero transmission loss)

Motor Technology: IP65 Permanent Magnet, IE4 Premium Efficiency (IE5 Optional)

Acoustic Profile: < 65 dB

Thermal Control: ±2°C temperature variance

Output Quality: < 3 ppm residual oil content

Verified Quality and Global Supply Chain Expertise

Sourcing directly from a proven China manufacturing base gives you a distinct advantage in both technology and pricing. We don't just assemble parts; we innovate. Each Direct Driven PM VSD Single-Stage Screw Air Compressor undergoes rigorous multi-stage quality assurance. From continuous load tests to thermal imaging inspections, we guarantee flawless operation before the equipment ever leaves our floor.

Seamless Global Delivery and Lifelong Support

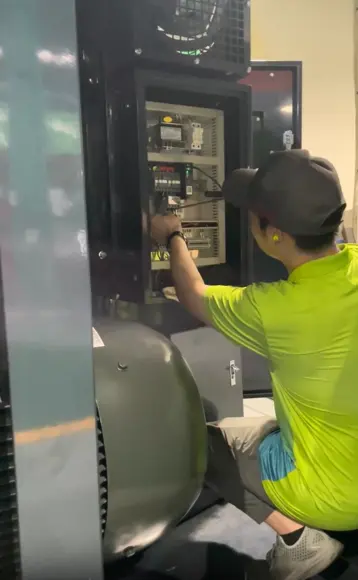

Your equipment is fortified in robust, export-grade wooden packaging to ensure absolute safety during international ocean or rail transit. Once delivered, our commitment continues. We supply comprehensive digital manuals, step-by-step video installation guides, and responsive 24/7 remote technical support. Coupled with accessible OEM spare parts and transparent long-term warranty policies, we ensure your production line experiences zero unexpected downtime.
