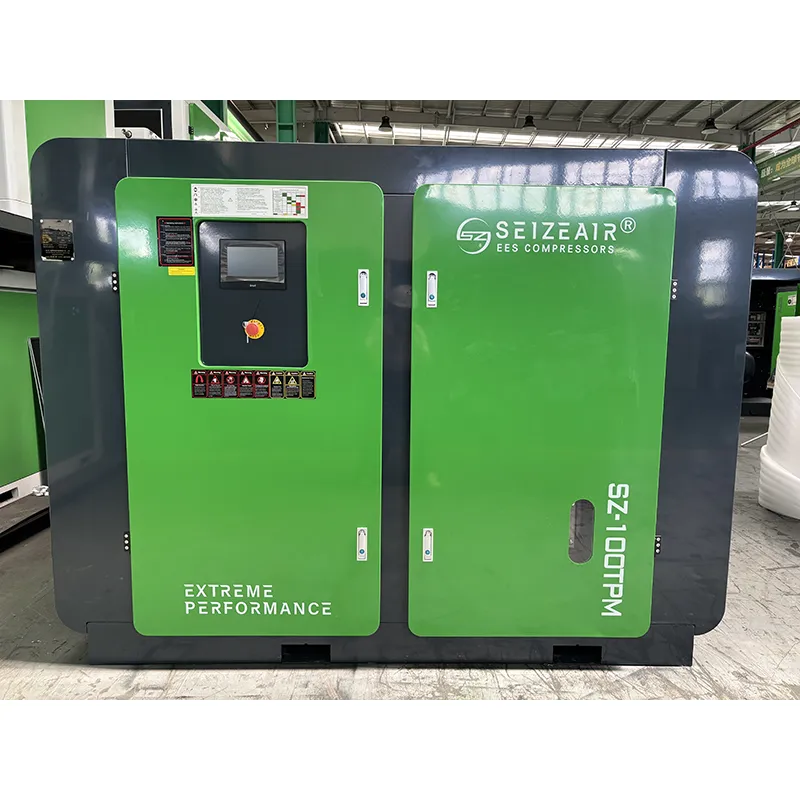

380V Industrial PM VSD Two-Stage Screw Air Compressor

The Power of Isothermal Compression in Heavy Industry

Heavy manufacturing facilities operating on standard industrial power grids require unyielding pneumatic stability. The 380V Industrial PM VSD Two-Stage Screw Air Compressor achieves this through a fundamentally superior mechanical design: the high-efficiency low-speed two-stage airend. Rather than forcing air to target pressure in a single, high-friction cycle, this system divides the workload. This dramatically lowers the compression ratio across the rotors, minimizing thermal expansion. The resulting isothermal compression principle ensures significantly higher volumetric efficiency—translating directly to more compressed air generated for every kilowatt of power consumed.

Watch the Technology in Motion:

Intelligent Drive: Precision Meets Power Conservation

At the heart of this system lies an uncompromising commitment to power conservation. Driven by a Permanent Magnet (PM) Premium Efficiency Motor (IP55 rated), this compressor achieves an elite IE4 energy classification (with an optional IE5 configuration available). This powertrain delivers a certified 98% efficiency, easily yielding a 5% direct energy saving over conventional VFD setups.

Furthermore, we utilize Advanced Dual Inverter Technology to govern the machine. This provides a remarkably wide speed range, allowing the equipment to modulate seamlessly between 25% and 100% load based on your real-time factory demands. Because the dual inverters independently manage both the main motor and the cooling fans, your output remains flawlessly stable: temperature variances are locked at ±1°C, and pressure precision is maintained at an astonishing ±0.5% (fluctuating no more than ±0.1bar).

Robust Architecture for Harsh Environments

Industrial environments are unforgiving. As a dedicated supplier, we over-engineer our hardware to eliminate unexpected downtime.

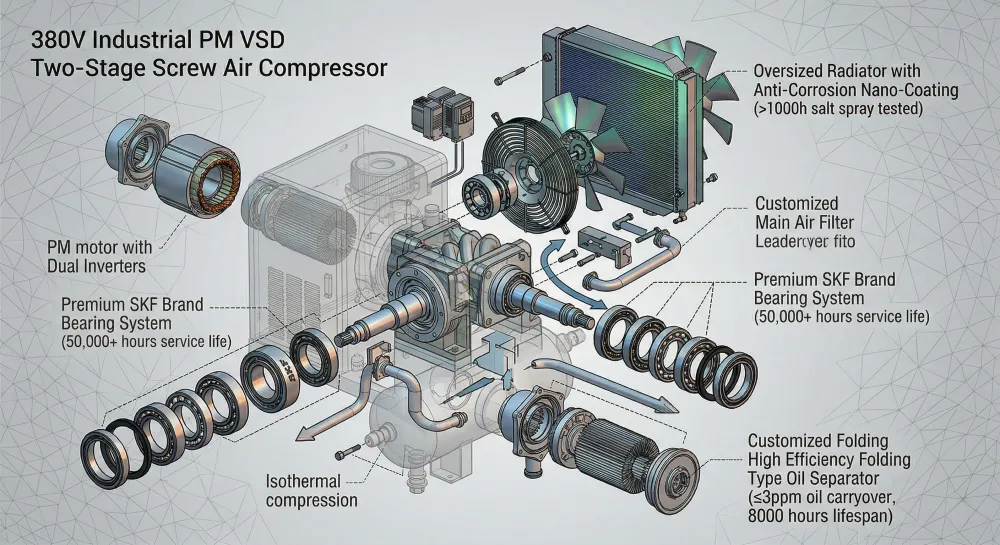

Thermal Mitigation: The oversized cooling system features a radiator that is 30% larger than the industry standard. We apply a specialized anti-corrosion nano-coating that successfully withstands >1000h in rigorous salt spray tests. Coupled with a quick-release dustproof mesh for easy maintenance, this setup delivers 15% better heat dissipation, making it ideal for high-ambient-temperature factories.

Mechanical Endurance: The rotor system is supported by a Premium SKF Brand Bearing System. This guarantees a formidable operational life of 50,000+ hours. The precision assembly ensures a microscopic vibration tolerance of <0.01mm, guaranteeing low-noise operation that protects your workforce.

Ultimate Filtration: Our customized main filter prevents air loss while extending overall service life. Additionally, the advanced folding-type oil separator is a customized design that restricts oil content in the output air to a mere ≤3ppm, boasting an extended lifespan of up to 8000 hours before replacement is required.

Real-World Application & Client Trust

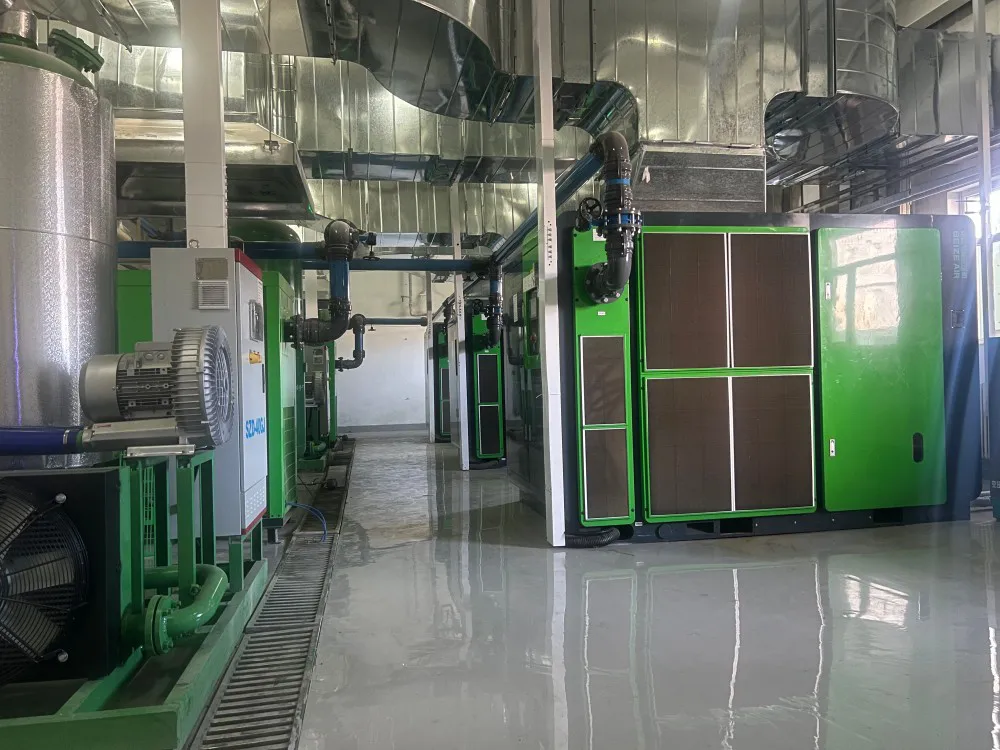

Our systems are the backbone of high-stakes manufacturing. For example, a massive automotive painting facility recently integrated our 380V Industrial PM VSD Two-Stage Screw Air Compressor to replace their aging single-stage units. The ±0.1bar pressure stability completely eliminated paint-finish defects caused by pressure drops, while the IE4 PM motor reduced their monthly power overhead by thousands of dollars.

Quality Assurance & Export Logistics

Procuring heavy machinery internationally requires absolute trust. Our production line adheres strictly to global standards, heavily documented by our CE and ISO certifications. Every machine undergoes dynamic balancing and high-stress testing before dispatch.

To ensure your investment arrives flawlessly, we utilize heavy-duty, fumigation-free export wooden packaging reinforced with steel brackets. We handle diverse shipping terms (FOB, CIF, DDP) to seamlessly integrate with your logistics chain.

Global Procurement & Lifecycle Services

We don't just sell equipment; we engineer long-term solutions. From the initial inquiry to decades of operation, we support your facility fully:

Customization (OEM/ODM): Tailored exterior colors, specialized filtration add-ons, or custom interface languages.

Service & Support: Comprehensive English installation manuals, step-by-step video guides, and a 24/7 technical engineering response team.

Guaranteed Protection: We back our manufacturing quality with a robust multi-year warranty framework, including rapid replacement parts dispatch to keep your production moving.
