The Three Stage PM VSD Dry Type Oil-Free Screw Air Compressor represents the zenith of contemporary fluid engineering. In premium manufacturing setups, compressed air purity is non-negotiable. Unlike traditional oil-injected models that rely heavily on line filtration to treat air upstream, a "Dry Type" machine runs completely dry inside its compression chambers—guaranteeing zero risk of mechanical oil carryover or batch contamination.
By dividing the total target pressure ratio into three structural compression stages (Inter-stage 1, 2, and 3), the compression path closely approaches ideal isothermal compression. Driven by an Ultra-Efficient Permanent Magnet (PM) Variable Speed Drive (VSD) motor, the system dynamically changes its speed to match fluctuating plant air demands, eliminating massive idling losses.

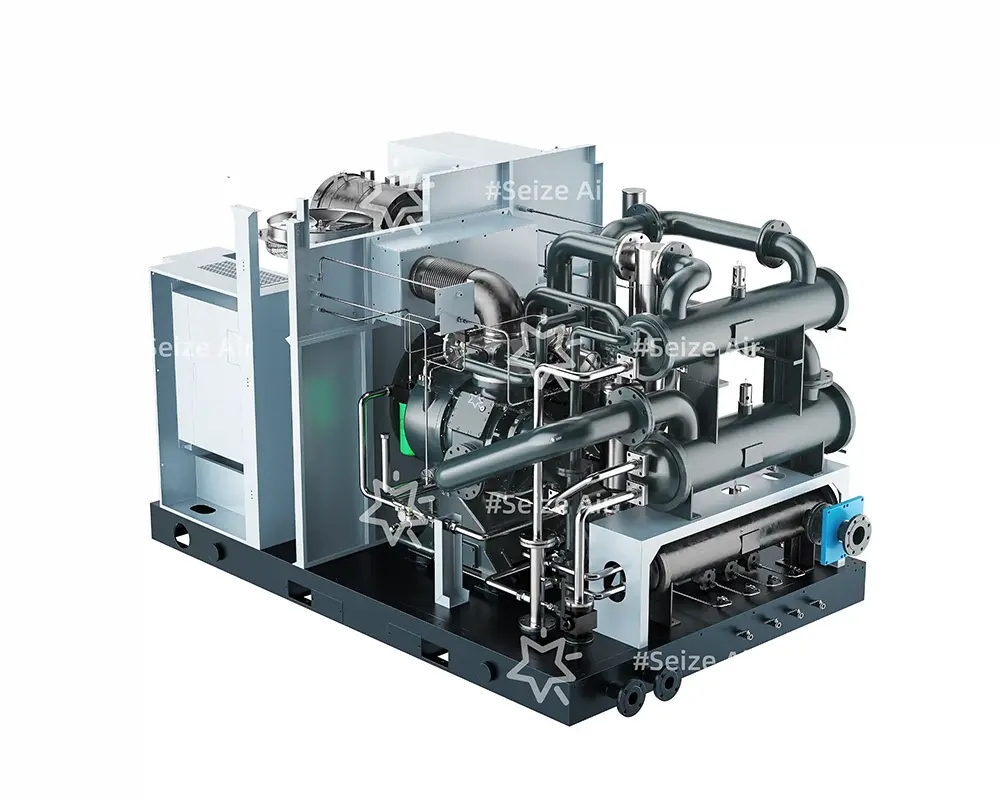

The heart of our machine contains precision-machined Stainless Steel rotors running on advanced synchronized timing gears (AGMA 14 level). The rotor profiles feature our specialized composite Ultra Coating (MoS₂++). This specialized chemical shield withstands temperatures up to 350°C , resisting thermal wear and preserving tight tolerances for maximum volumetric efficiency over long lifecycles.
We say goodbye to standard induction motor slip losses. Our standard line features oil-cooled or independent air-cooled Permanent Magnet motors boasting IP55/IP65 protection ratings. Managed by an integrated heavy-duty frequency drive, it maintains near-peak power factors and high torque conversion rates even when running at 40% part-load states.
Humid air can quickly erode inferior metals. SEIZE AIR integrates oversized stainless steel interstage coolers and moisture traps. By stripping liquid condensed water efficiently after each cooling run, it prevents corrosion and ensures bone-dry air enters subsequent compression stages, protecting the precision rotor coatings.
As a verified industrial B2B supplier, we offer full customization on voltages and operating parameters. Below is the official technical breakdown of the SEIZE AIR Three Stage PM VSD Dry Type Oil-Free Screw Air Compressor (SWT-WV Series) contrasted against our other major industrial offerings:
|
Series Model Classification |
Working Pressure Range (Bar) |
Air Capacity Volume (m3/min) |
Motor Power Range (KW) |
Core Technical Value & Positioning |
|
Three Stage PM VSD Oil-Free (SWT-WV) |
6.5 ~ 10.5 |
23.8 ~ 49.0 |
200 ~ 250 |
The Ultimate Energy-Saving Benchmark. Physical Class 0 pure gas output, full VSD control, custom-built for large chemical chips, lithium batteries, and major pharmaceuticals. |
|
Two-Stage Oil-Free Screw (SWT) |
4.5 ~ 10.5 |
6.0 ~ 69.0 |
37 ~ 375 |
High-reliability premium choice with dual-stage setup, ideal balanced configuration. |
|
Single-Stage Low Pressure Oil-Injected |
2.5 ~ 3.5 |
5.6 ~ 69.0 |
37 ~ 355 |
Engineered for high-volume textile and fermentation plants needing low-pressure gas. |
|
Two-Stage Oil-Injected PM VSD |
4.5 ~ 12.5 |
3.0 ~ 100.0 |
15 ~ 450 |
High efficiency for universal heavy industrial lines where absolute oil-free air is not required. |
Semiconductor Fabrication: Zero vaporized hydrocarbons to protect sensitive cleanrooms and sub-micron lithography wafer production lines.
Biomedical & Pharmaceutical: Prevents oil carryover during critical organic fermentation processes and medicine packaging lines.
Food & Beverage Packing: Guarantees direct-contact process air safety, complying with global public food processing audits.
Global Client Spotlight: The Power of Energy Upgrades
The Plant Profile: A mega biological research and production enterprise operating complex 24/7 continuous fermentation runs.

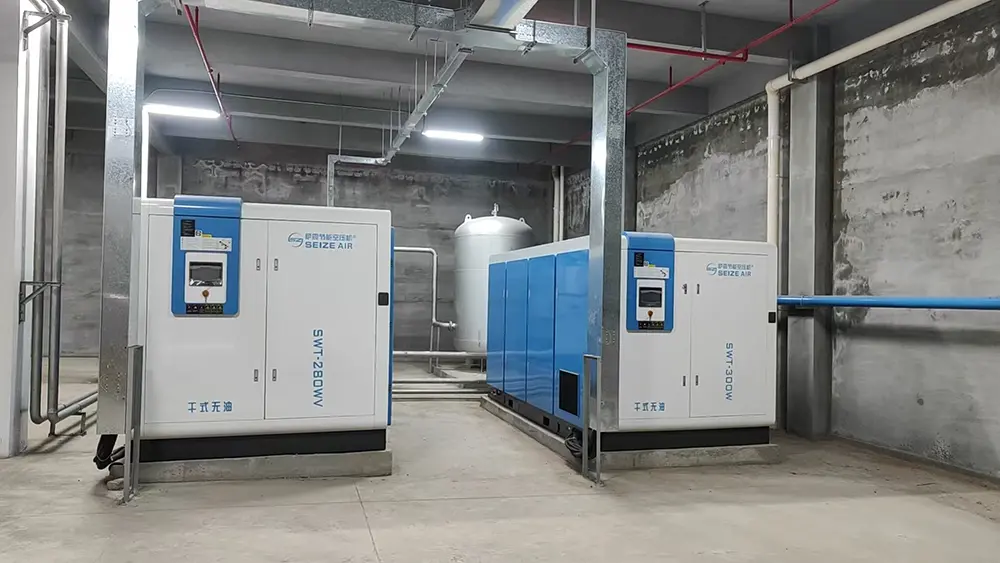

The Retrofit Swap: The client removed an aging international brand 250KW dual-stage oil-free machine, installing a premium SEIZE AIR SWT-220WV Three Stage PM VSD Dry Type Oil-Free Screw Air Compressor.
The Proven ROI Metrics:
Product Stability: Certified external audits confirmed continuous, stable pressure dew points, lifting active culture batch yield metrics by 4%.
Power Savings: Real-time power logging verified a massive 12.5% reduction in net energy usage under true plant operating conditions.
Payback Velocity: Savings from the electricity bills fully recovered the capital expenditure of the system within 18 operational months.
Our factory does not just build equipment; we deliver verified structural lifecycle cost minimization. Let’s evaluate how our design outpaces legacy market alternatives:
The Compounding Savings of Isothermal Logic: Ordinary two-stage systems experience severe temperature spikes because their individual pressure ratios are too high. Our three-stage layout drops individual pressure ratios significantly. Deep inter-stage intercooling shrinks air volume before it moves to the next compression pocket, removing vast amounts of wasted work from the thermal compression process.
True Part-Load PM Synchronization: Competitors often feature basic stop-start load cycles or use standard VFD setups that suffer high magnetic losses at lower frequencies. Our advanced permanent magnet vector algorithms ensure premium efficiency even during deep turn-down periods.
Purchasing critical capital machinery requires absolute institutional trust. Our smart 40-acre manufacturing plant operates state-of-the-art precision German tooling centers and an onsite certified energy efficiency lab.

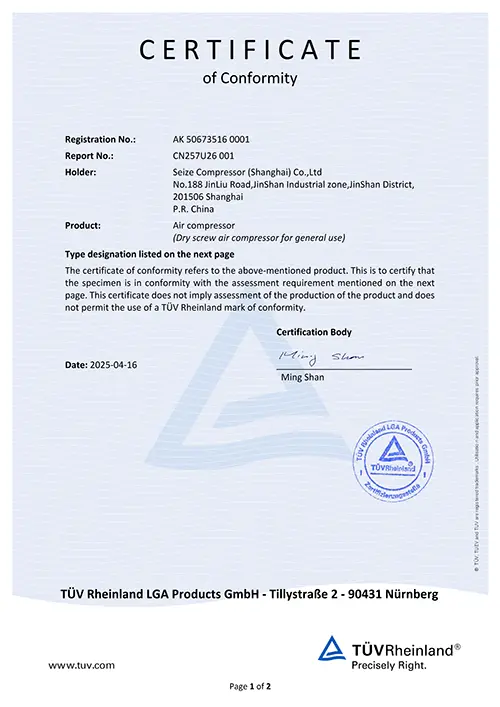

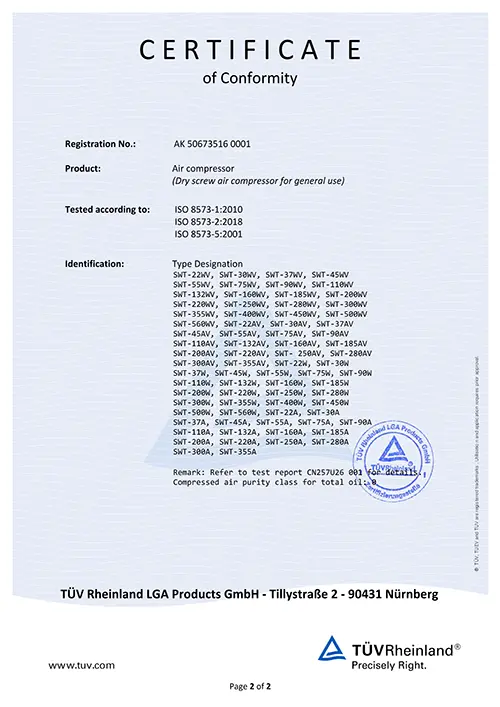

Certified 100% Oil-Free: Formally stamped under rigorous German TÜV Class 0 safety thresholds.
Compliance Ready: Full international CE and EAC marking for immediate cross-border industrial integration.
Verified Energy Grade: Every assembly model passes stringent testing protocols, outperforming National Grade 1 energy boundaries.
Protective Casing: Heavy-duty structural steel frame bases combined with solid wooden crates for rugged long-distance transport.
Corrosion Isolation: Fully wrapped in heavy anti-static, moisture-proof vacuum barriers, accompanied by dense desiccant packs to prevent sea-air oxidation.
Anchor Safeguards: Fitted with bright orange external structural heavy shipping lock fixtures to isolate internal chassis vibration elements during rough ocean transits.
Total Synchronization Lubricant Rule Even though our compression lines remain 100% dry type setups , the underlying synchronous high-speed gears and bearing tracks require high-grade lubricating fluid. Operators must exclusively use original SEIZE certified formulas (e.g., Model 2100107-2). Never mix diverse lubricant lines, or you risk high foaming, varnish, or sudden bearing failures.
Shift-Patrol Interstage Condensate Drains Because the thermodynamic efficiency of this machine hinges on dropping air temperatures between subsequent stages, automatic electronic drain systems must be reviewed every single shift. If a line drain experiences a block, raw moisture can carry over into high-temp rotor stages, eroding the protective Ultra Coating profiles.
Intake Ambient Chemical Air Controls Ensure your external air intake points sit far away from industrial solvent storage tanks, exhaust ports, or acidic gas emissions. These aggressive ambient chemical vapors can cause micro-corrosion on downstream stainless steel parts and damage rotor surfaces.
A1: Filters fade, drift, and eventually face physical breakthrough failures. If an automated separator or float drain malfunctions in an oil-lubricated machine, raw oil mist can sweep down into your production line. For premium operations like micro-electronics or bio-pharma, a single contamination issue can cause massive losses, compliance fines, or full plant halts. A dry type machine gives you total physical protection from the start.
A2: Every 2,000 run hours, high-speed motor bearings require fresh lubrication via the grease points using specified brands. At the 20,000-hour mark or every 5 years, a standard deep preventive maintenance check is scheduled to evaluate clearances, replace premium gear seals, and refresh the high-speed bearing components to keep the machine running like new.
A3: Yes, absolutely. As an established global industrial partner, our engineering team manages international turnkey installations. We handle everything from digital pipeline pressure-drop network calculations to air dryer integrations and multi-unit smart station control systems.
